€147.93 Vat excl.
BMV-700 is our newest high precision battery monitors. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of battery charge. Ampere-hours consumed are calculated by integrating the current flow into and out of the battery.
Are you a dealer or installer?
For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]
 |

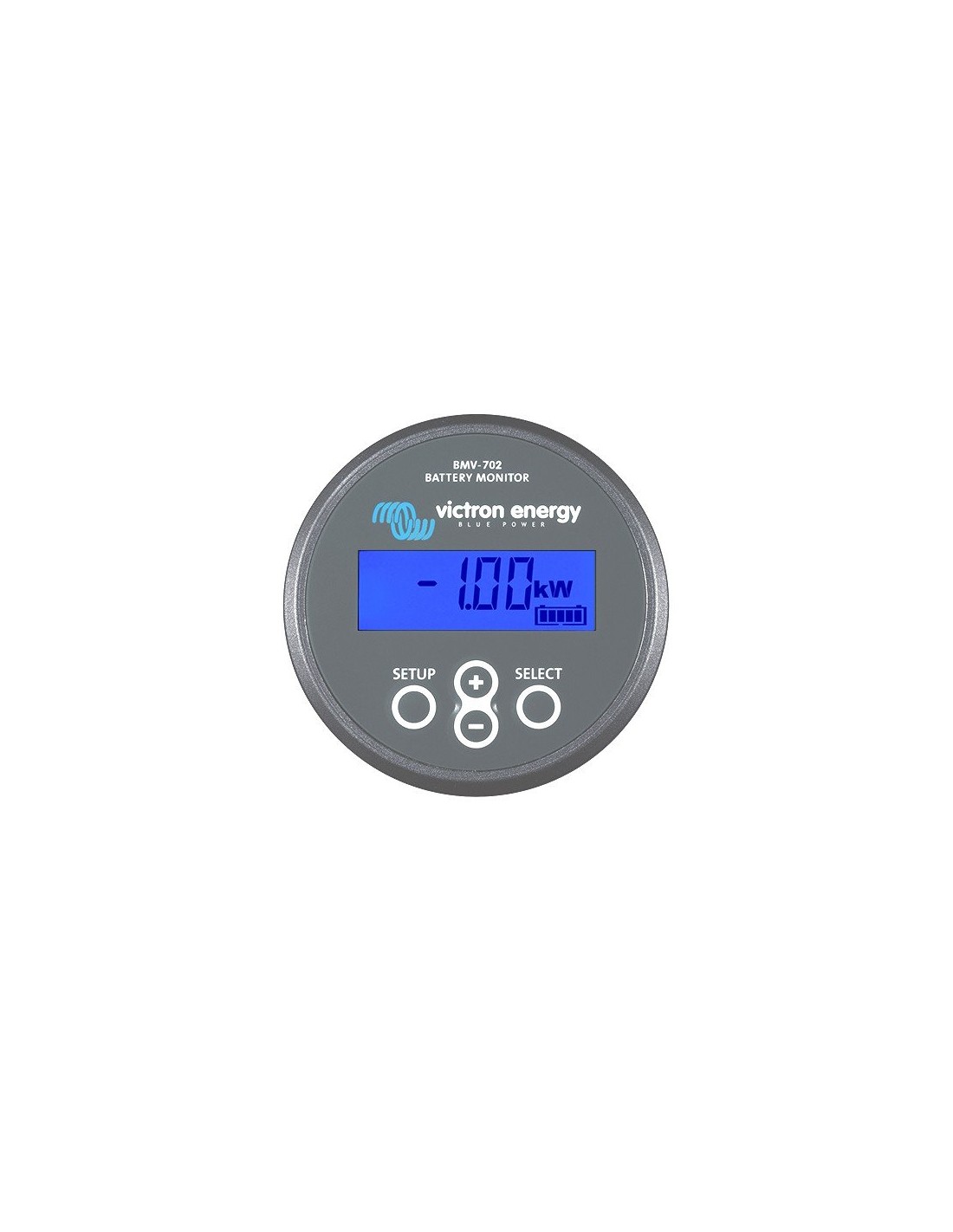

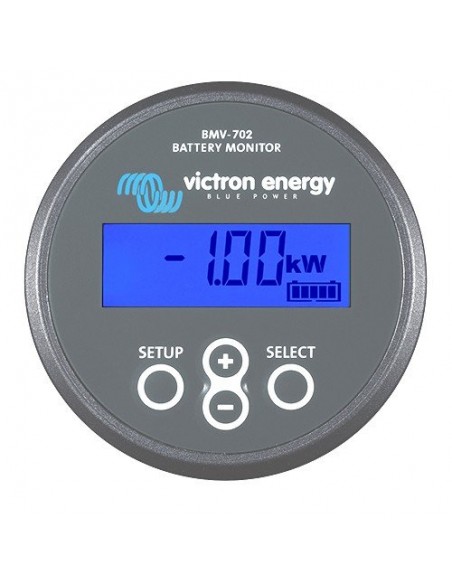

Monitoring System for Batteries BMV-702 Grey Victron EnergyModello: BAM010702000R |
|
BMV-700 is our newest high precision battery monitors. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of battery charge. Ampere-hours consumed are calculated by integrating the current flow into and out of the battery.
| Model: BAM010702000R |
| Power supply range: 6,5 - 95 VDC |
| Consumption, backlight off: <4mA |
| Battery Capacity (Ah): 20 - 9999 |
| Operating temperature range: -40 +50° (-40 - 120°F) |
|
Communication port VE.Direct : Sì a 5V |
| Operating temperature range: -20 +50°C (0 - 120°F) |
| Installation: Montaggio a incastro |
| Front: Diametro 63 mm |
|
Front bezel: 69 X 69 mm (2,7 - 2,7 pollici) |
| Body diameter: 52 mm (2,0 pollici) |
| Body depth: 31 mm (1,2 pollici) |
 |
2 Years Warrenty |
 |
Manuals, Technical Specifications and Certifications |
||||||||||||||||
|
|||||||||||||||||
 |
Assistence |
||||||||||
|
|||||||||||
