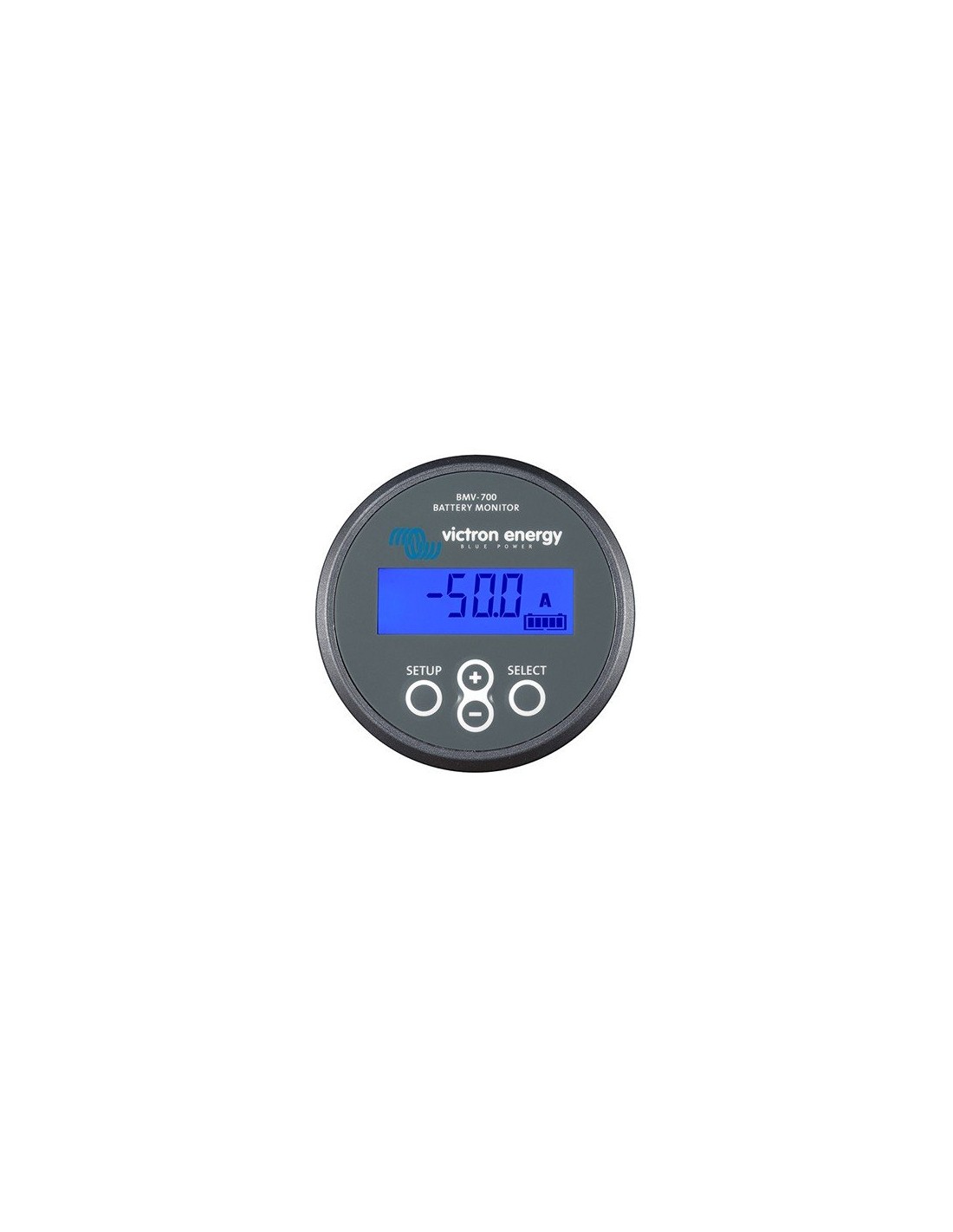

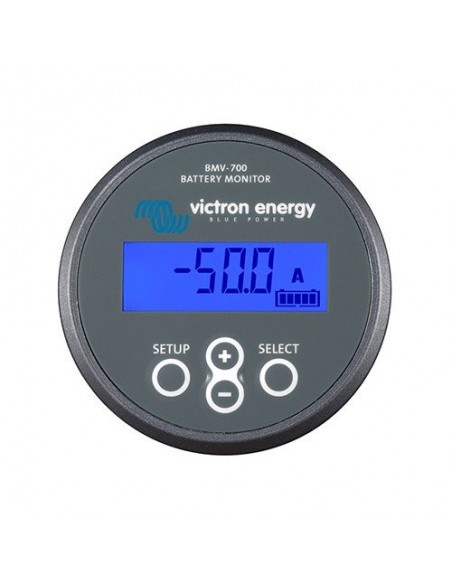

Sistema di Monitoraggio per Batterie BMV-700 Victron Energy
Sistema di Monitoraggio per Batterie BMV-700 Victron Energy

Monitoring System for Batteries BMV-700 Grigio Victron Energy

BAM010700000R
Last items in stock
€138.99
VAT included 22 %

€113.93 Vat excl.

BMV-700 is our newest high precision battery monitors. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of battery charge. Ampere-hours consumed are calculated by integrating the current flow into and out of the battery.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

Monitoring System for Batteries BMV-700

Victron Energy

Modello: BAM010700000

BMV-700 is our newest high precision battery monitors. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of battery charge. Ampere-hours consumed are calculated by integrating the current flow into and out of the battery.

Technical Features

Model: BAM010700000R

The battery control device

Power supply range: 6,5 - 95 VDC
Consumption, backlight off: <4mA
Battery Capacity (Ah): 20 - 9999
Operating temperature range: -40 +50° (-40 - 120°F)

Communication port VE.Direct : Sì a 5V

Operating temperature range: -20 +50°C (0 - 120°F)

Installation and Dimensions

Installation: Montaggio a incastro
Front: Diametro 63 mm

Front bezel: 69 X 69 mm (2,7 - 2,7 pollici)

Body diameter: 52 mm (2,0 pollici)
Body depth: 31 mm (1,2 pollici)

Warrenty

2 Years Warrenty

Certifications

Measures

Connections



Manuals, Technical Specifications and Certifications

Data Sheet [LINK]
User Manual Multilanguage [LINK]
Declaration of CE [LINK]
Certificate Safety IEC [LINK]
Quick Installation Guide EN [LINK]

Assistence

For service or plant configuration call
0882 22 82 47
For technical assistance, write to
[email protected]
