KSA-BYD-HVS-CBU-7.7
Last items in stock
€5,067.72
VAT included 10 %

€4,607.03 Vat excl.

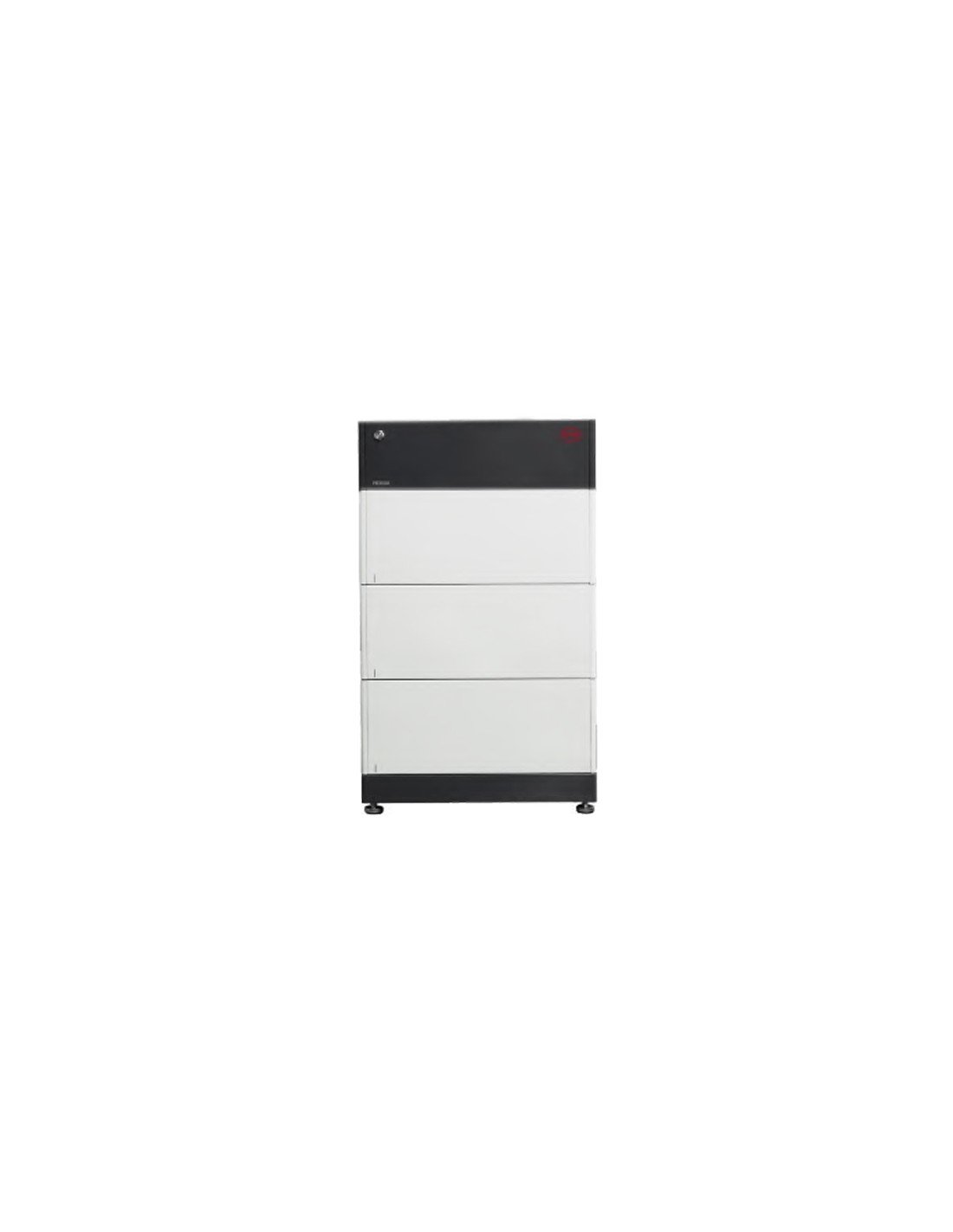

Battery-Box Premium HVS is composed of 2 to 5 HVS modules connected in series to obtain a usable capacity from 5.1 to 12.8kWh.

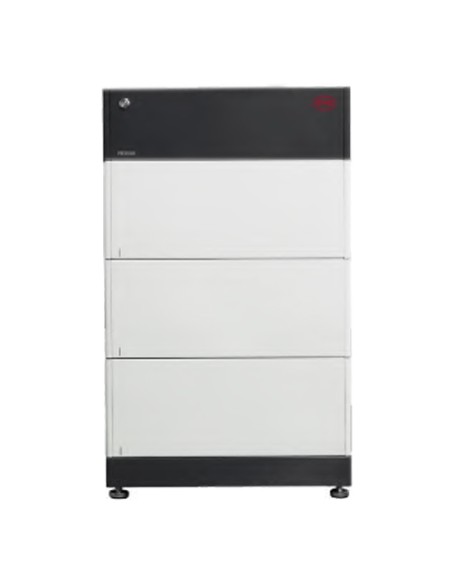

7.7kWh storage system in high voltage BYD HVS


Battery-Box Premium HVS is composed of 2 to 5 HVS modules connected in series to obtain a usable capacity from 5.1 to 12.8kWh. The parallel connection of up to 3 equal towers of Battery-Box Premium HVS allows a maximum capacity of 38.4kWh. Additionally, this model offers the ability to scale by adding HVS modules or parallel HVS towers at any time.

Main features

  • High Power Backup and Off-Grid Functions;
  • Maximum efficiency thanks to a real high voltage series connection;
  • Patented plug-in design without internal cables that allows maximum flexibility and ease of use;
  • Cobalt-free lithium iron phosphate (LFP) battery: maximum safety, life cycle and power;
  • Compatible with single-phase and three-phase inverters;
  • Two models to satisfy all types of needs;
  • The highest safety standards such as VDE 2510-50.

NOTE: BYD HVS battery consists of a minimum of 2 HVS + BMS modules to a maximum of 5 HVS + BMS modules, it is possible to connect them in series to obtain a capacity from 5.1kWh to 12.8kWh.


For more details, download the following documents:


Technical features

Model HVS

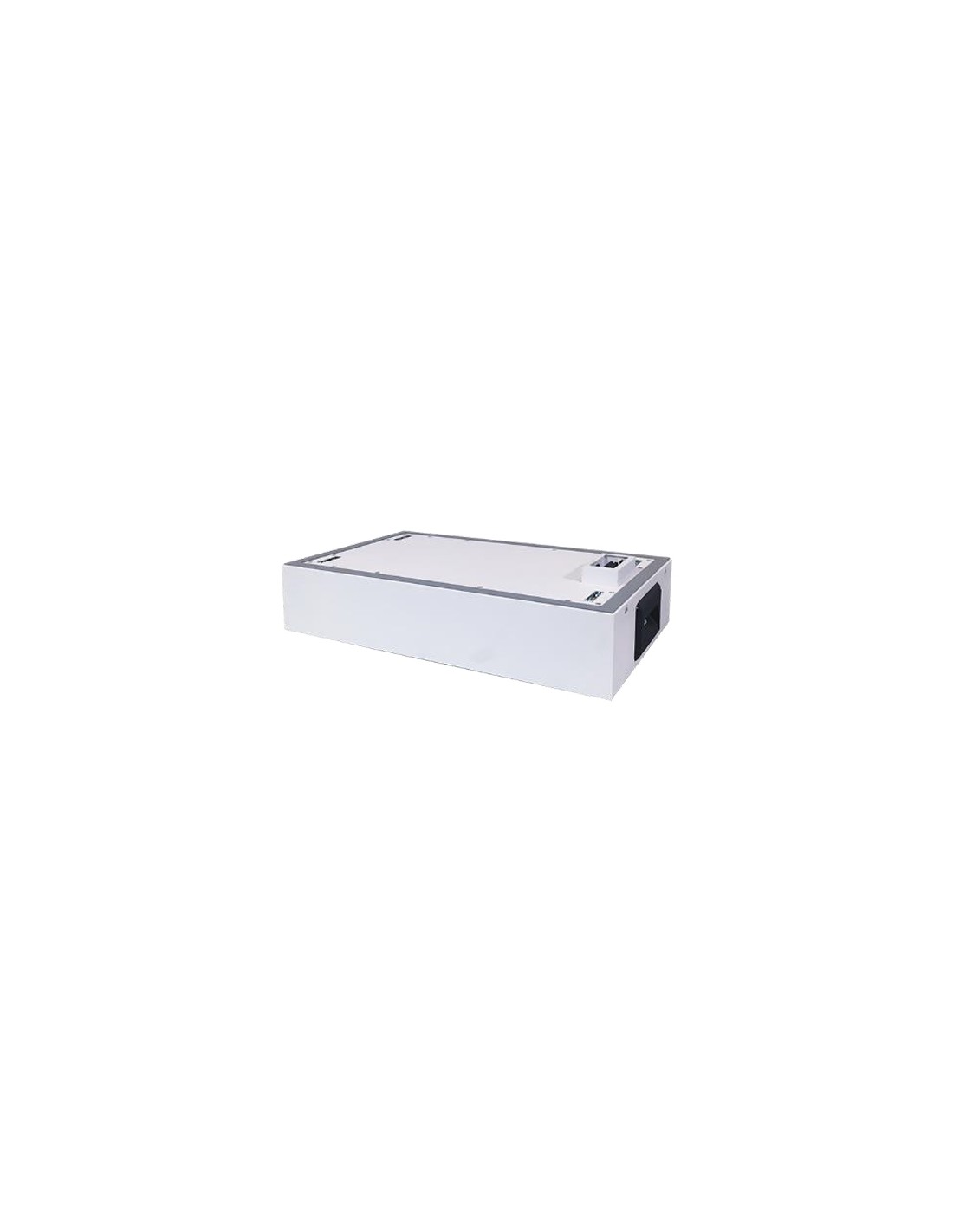

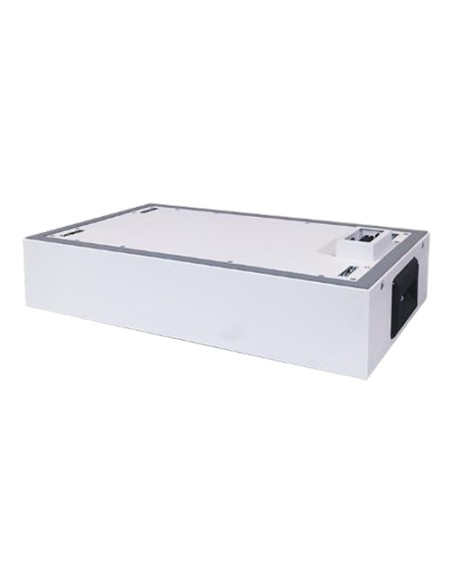

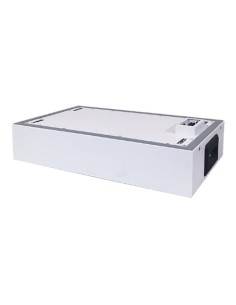

Module HVS (2.56kWh, 102.4V, 38 kg)
Number of modules 2 3 4 5
Energy Available 5.12 kWh 7.68 kWh 10.24 kWh 12.8 kWh
Maximum Output Current 25A 25A 25A 25A
Peak Output Current 50A, 5s 50A, 5s 50A, 5s 50A, 5s
Nominal tension 204V 307V 409V 512V
Operating Voltage 160~240V 240~360V 320~480V 400~600V
Dimensions (H/W/D) 712x585x298 mm 945x585x298 mm 1178x585x298 mm 1411x585x298 mm
Weight 91 kg 129 kg 167 kg 205 kg
Temperature Range -10 °C to +50°C
Cell technology Lithium iron phosphate (cobalt-free)
Communication CAN/RS485
Protection Index IP55
Efficiency (charge/discharge) ≥96%
Certifications VDE2510-50 / IEC62619 / CEC / CE / UN38.3
Applications ON Grid / ON Grid + Backup / OFF Grid
Warranty 10 years
Compatible inverters Check the Minimum Configuration List and the Inverters Compatible
with BYD Battery-Box Premium
