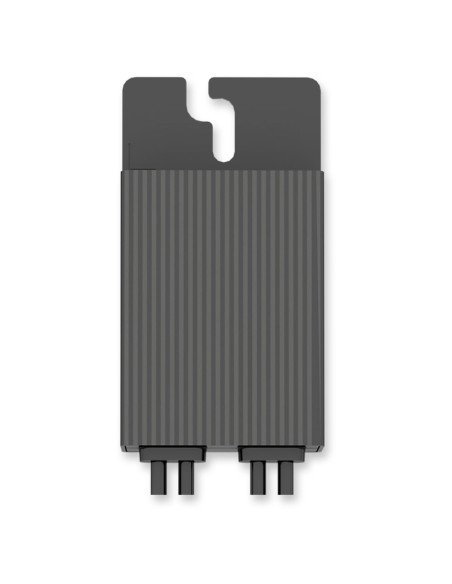

Optimizer Huawei Smart PV MERC-600W-PA0

Module-level optimization increases the system’s energy yield by 5% to 30%, ensuring higher efficiency and maximum performance.
Saferoof’s multiple protection technologies keep the rooftop consistently safe, safeguarding the installation under all conditions.
The flexible design enables easier module layout and, on average, up to 30% more installed capacity, adapting smoothly to different configurations.

Smart O&M offers module-level visibility and refined control, allowing precise monitoring and optimized maintenance for reliable long-term performance.

Main features:

• Huawei L1, M1, M2, M3, LB0, MB0,LC0, BEM1, MAP0 inverter compatibility;
• Nominal Input Power 600 Wp;
• Absolute max input voltage 80 Voc;
• MPPT Voltage Range 10 - 80V;
• Max efficiency 99.5%;
• Dimensions 75 x 140 x 28 mm;
• Weight 0,65Kg;
• MC4 input and output connectors;
• Degree of protection IP68.

For more details, download the following documents:

• Datasheet: [Download]
