5.526,00 € Vat excl.

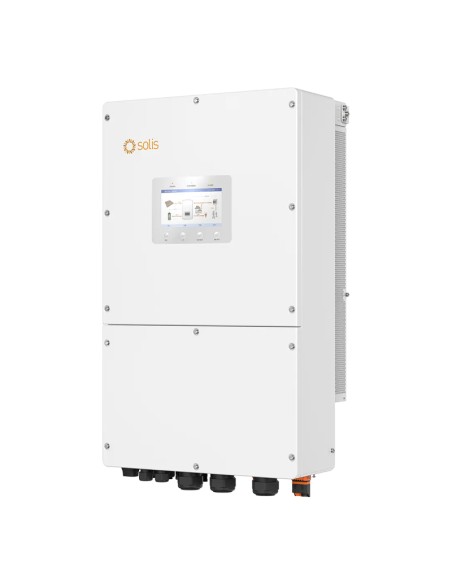

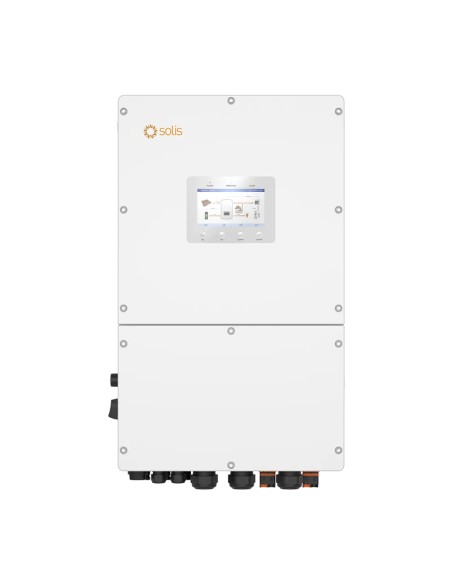

El inversor de almacenamiento de energía trifásico de la serie Solis S6-EH3P50K-H está diseñado para sistemas comerciales de almacenamiento de energía fotovoltaica. Este tipo de producto está equipado con una salida de generador independiente y funcionamiento en paralelo de múltiples inversores.
El inversor de almacenamiento de energía trifásico de la serie Solis S6-EH3P50K-H está diseñado para sistemas comerciales de almacenamiento de energía fotovoltaica. Este tipo de producto está equipado con una salida de generador independiente y funcionamiento en paralelo de múltiples inversores.
También ofrecen salidas de generador independientes, capacidades de carga y descarga de alta corriente y una variedad de opciones de capacidad de carga flexible, incluida conmutación a nivel de UPS. Se adaptan fácilmente a cargas trifásicas desequilibradas y cargas de media onda, garantizando un suministro de energía altamente confiable.
| DC Input (PV Side) | |
| Max. recommended PV field size | 100 kW |
| Max. recommended PV input power | 96 kW |
| Max. absolute voltage | 1000 V |
| Rated voltage | 600 V |
| Startup voltage | 180 V |
| MPPT voltage range | 150 - 850 V |
| Max. input current | 4 × 40 A |
| Max. short circuit current | 4 × 60 A |
| MPPT number / Max. number of strings | 4 / 8 |
| Battery | |
| Battery type | Lithium-ion |
| Allowed voltage range | 150 - 800 V |
| Max. charge / discharge power | 55 kW |
| Max. charge / discharge current | 70 A × 2 |
| No. of battery inputs | 2 |
| Max. charge / discharge power per input | 35 kW |
| Communication | CAN / RS485 |
| AC Output (Grid Side) | |
| Rated output power | 50 kW |
| Max. apparent output power | 50 kVA |
| Nominal grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal grid frequency | 50 Hz / 60 Hz |
| Nominal grid output current | 76 A / 72.2 A |
| Max. output current | 76 A / 72.2 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
| AC Input (Grid Side) | |
| Max. AC transmission current | 152 A / 144.4 A |
| Nominal input voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal input frequency | 50 Hz / 60 Hz |
| AC Output (Backup) | |
| Rated output power | 50 kW |
| Max. apparent output power | 1.6 times the nominal power, 2 s |
| Backup switch-over time | < 10 ms |
| Nominal output current | 76 A / 72.2 A |
| THDv (@linear load) | < 2% |
| Efficiency | |
| Max. efficiency | 97.8% |
| European efficiency | 97.4% |
| Max. efficiency with battery charged by PV | 98.5% |
| Max. efficiency with battery charged/discharged in AC | 97.5% |
| Protection | |
| Anti-islanding system | Yes |
| Output overcurrent protection | Yes |
| Short circuit protection | Yes |
| Integrated DC switch | Yes |
| DC reverse polarity protection | Yes |
| DC Type II / AC Type II overvoltage protection | Yes |
| Integrated AFCI 2.0 | Optional |
| General Data | |
| Dimensions (W × H × D) | 530 × 880 × 290 mm |
| Weight | 73 kg |
| Topology | Transformerless |
| Self consumption (night) | < 35 W |
| Operating temperature range | -25 ~ +60°C |
| Relative humidity | 0 - 95% |
| Ingress protection | IP66 |
| Cooling method | Intelligent fan cooling |
| Max. operating altitude | 4000 m |
| Grid connection standards | |
| Grid connection standards | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, DE 21 DE MARÇO DE 2022 |
| Safety / EMC standards | |
| Safety / EMC standards | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |

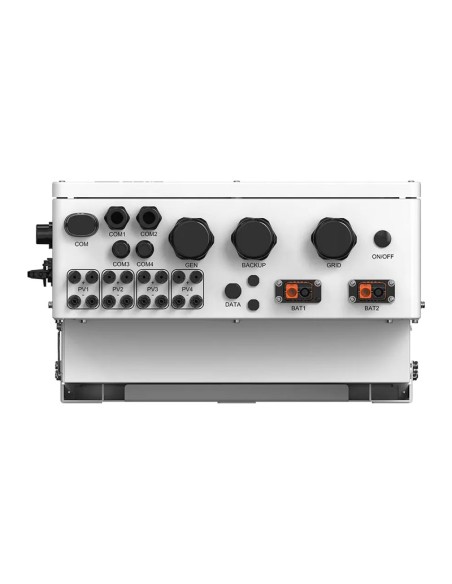

| Features | PV connection: MC4 connector; Battery connection: Terminal connectors; AC connection: Terminal block; Display: 7.0" LCD display and Bluetooth + APP; Communication: CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
