4.143,15 € Vat excl.

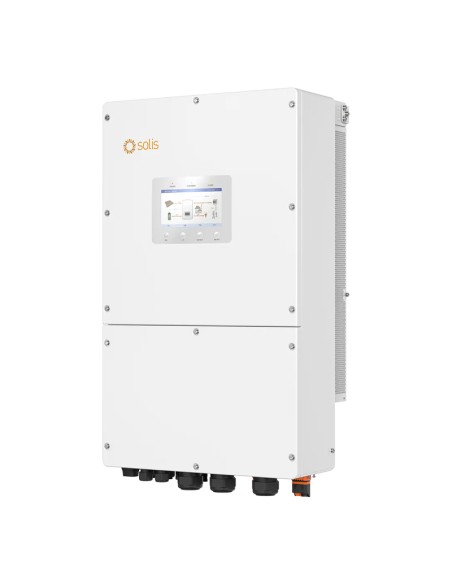

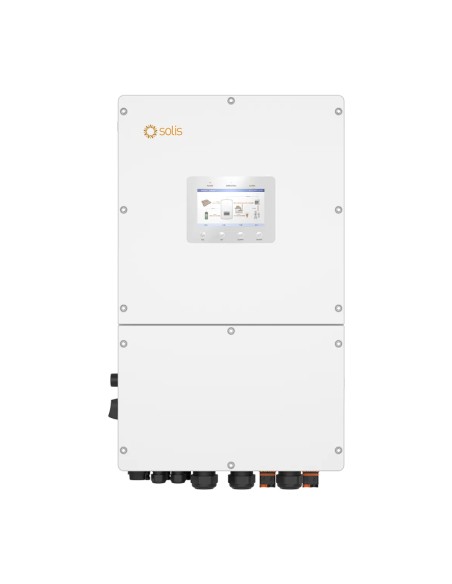

El inversor de almacenamiento de energía trifásico de la serie Solis S6-EH3P30K-H está diseñado para sistemas comerciales de almacenamiento de energía fotovoltaica. Este tipo de producto está equipado con una salida de generador independiente y funcionamiento en paralelo de múltiples inversores.
El inversor de almacenamiento de energía trifásico de la serie Solis S6-EH3P30K-H está diseñado para sistemas comerciales de almacenamiento de energía fotovoltaica. Este tipo de producto está equipado con una salida de generador independiente y funcionamiento en paralelo de múltiples inversores.
También ofrecen salidas de generador independientes, capacidades de carga y descarga de alta corriente y una variedad de opciones de capacidad de carga flexible, incluida conmutación a nivel de UPS. Se adaptan fácilmente a cargas trifásicas desequilibradas y cargas de media onda, garantizando un suministro de energía altamente confiable.
| DC Input (PV Side) | |
| Recommended maximum PV field size | 60 kW |
| Recommended maximum PV input power | 60 kW |
| Maximum absolute voltage | 1000 V |
| Rated voltage | 600 V |
| Startup voltage | 180 V |
| MPPT voltage range | 150 - 850 V |
| Maximum input current | 3 × 40 A |
| Maximum short-circuit current | 3 × 60 A |
| MPPT number / Maximum number of strings | 3 / 6 |
| Battery | |
| Battery type | Lithium-ion |
| Allowed voltage range | 150 - 800 V |
| Maximum charge / discharge power | 33 kW |
| Maximum charge / discharge current | 70 A × 2 |
| Number of battery inputs | 2 |
| Maximum charge / discharge power per input | 33 kW |
| Communication | CAN / RS485 |
| AC Output (Grid Side) | |
| Rated output power | 30 kW |
| Maximum apparent output power | 30 kVA |
| Nominal grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal grid frequency | 50 Hz / 60 Hz |
| Nominal grid output current | 45.6 A / 43.3 A |
| Maximum output current | 45.6 A / 43.3 A |
| Power Factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
| AC Input (Grid Side) | |
| Maximum AC transmission current | 91.2 A / 86.6 A |
| Nominal input voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal input frequency | 50 Hz / 60 Hz |
| AC Output (Backup) | |
| Rated output power | 30 kW |
| Maximum apparent output power | 1.6 times rated power, 2s |
| Backup switching time | < 10 ms |
| Nominal output current | 45.6 A / 43.3 A |
| THDv (@linear load) | < 2% |
| Efficiency | |
| Maximum efficiency | 97.8% |
| EU efficiency | 97.4% |
| Maximum efficiency with battery charged from PV | 98.5% |
| Maximum efficiency with battery charged/discharged in AC | 97.5% |
| Protection | |
| Anti-islanding system | Yes |
| Overcurrent protection on output | Yes |
| Short-circuit protection | Yes |
| Integrated DC switch | Yes |
| DC reverse polarity protection | Yes |
| Overload protection DC / AC | Type II / Type II |
| AFCI 2.0 integrated | Optional |
| General Data | |
| Dimensions (W × H × D) | 530 × 880 × 290 mm |
| Weight | 73 kg |
| Topology | Transformerless |
| Self consumption (night) | < 35 W |
| Operating temperature range | -25 ~ +60°C |
| Relative humidity | 0 - 95% |
| Ingress protection | IP66 |
| Cooling method | Smart fan cooling |
| Maximum operating altitude | 4000 m |
| Grid connection standard | |
| Grid connection standard | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, DE 21 DE MARÇO DE 2022 |
| Safety / EMC standards | |
| Safety / EMC standards | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |
| Features | |
| PV connection | MC4 quick connector |
| Battery connection | Terminal connectors |
| AC connection | Terminal block |
| Display | 7.0" LCD display with Bluetooth + APP |
| Communication | CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
