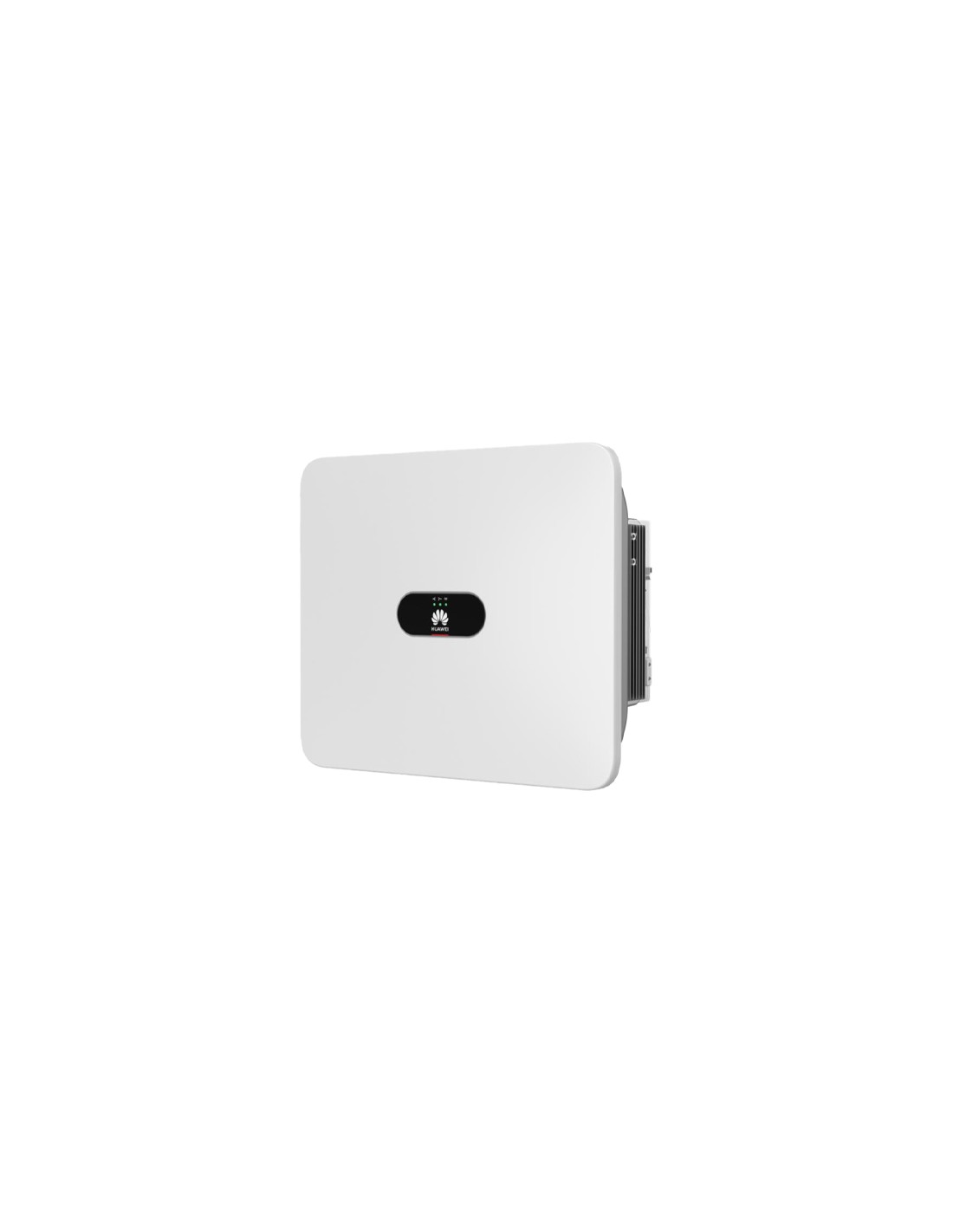

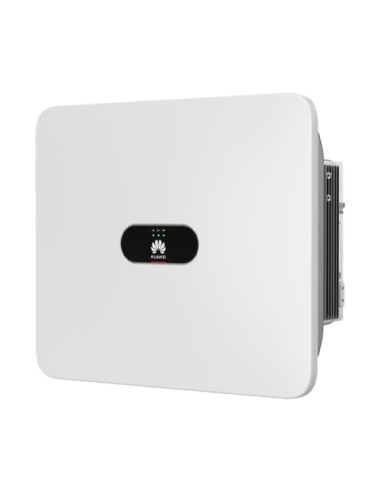

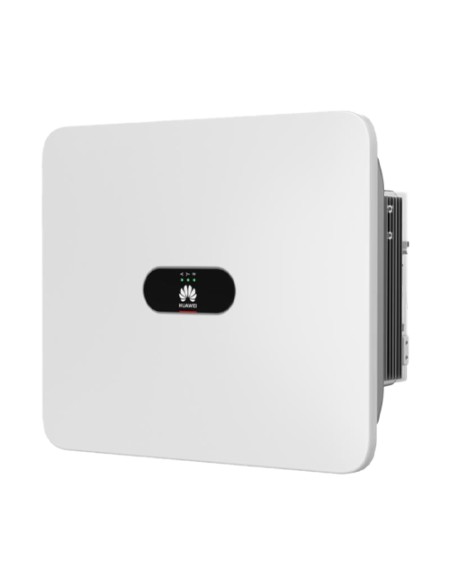

Wechselrichter von String dreiphasiger 17kW Huawei SUN2000-17KTL-M5 Photovoltaik
Wechselrichter von String dreiphasiger 17kW Huawei SUN2000-17KTL-M5 Photovoltaik

Wechselrichter von String dreiphasiger 17kW Huawei SUN2000-17KTL-M5 Photovoltaik

SUN2000-17KTL-M5
2.369,75 €
Bruttopreis 10 %

2.154,32 € Vat excl.

  • Aktive Sicherheit: KI-gestützter Lichtbogenschutz;
  • Höhere Erträge: bis zu 30 % mehr Energie mit Optimizer;
  • Flexible Kommunikation: WLAN, Fast Ethernet, 4G-Kommunikation unterstützt.



Wechselrichter von String dreiphasiger 17kW Huawei SUN2000-17KTL-M5


Features

  • Aktive Sicherheit: KI-gestützter Lichtbogenschutz;
  • Höhere Erträge: bis zu 30 % mehr Energie mit Optimizer;
  • Flexible Kommunikation: WLAN, Fast Ethernet, 4G-Kommunikation unterstützt.

Laden Sie für weitere Details die folgenden Dokumente herunter:


Technische Eigenschaften

Input
Recommended max. PV power 25,500 Wp
Max. input voltage 1,100 V
Max. input current per MPPT 30 A (two string) / 20 A (single string)
Max. short-circuit current 40 A
Start-up voltage 200 V
MPPT Operating voltage range 200 V ~ 1000 V
Rated input voltage 600 V
Max. number of inputs  4
Number of MPP trackers
Output
Rated output power 17,000 W
Max. apparent power 18,700 VA
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239.6 Vac / 415Vac, 3W + N + PE
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 28.6A/380Vac
27.1A/400Vac
26.1A/415Vac
Adjustable power factor 0.8 capac ... 0.8 indut
Features & Protection
Overvoltage Category PV Ⅱ/AC Ⅲ
Input-side disconnection device Yes
Anti-islanding protection Yes
AC over-current protection Yes
DC reverse-polarity protection Yes
String fault detection Yes
DC surge protection TYPE II
AC surge protection CLASS II
Standard compliance
Safety EN/IEC 62109-1, EN/IEC 62109-2
Grid connection standards G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002, RD 244, TOR D4, IEC61727, IEC62116
Optimizer compatibility
DC MBUS compatible optimizer SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, MERC-1300W-P, MERC-1100W-P
General data
Display LED Indicators; Integrated WLAN + FusionSolar App
Communication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional)
Operation temperature range -25 ~ + 60 °C (-13 °F ~ 140 °F)
Cooling Raffreddamento ad aria intelligente
Degree of protection IP 66
Dimensions (W x H x D) (incl. mounting plate) 546 x 460 x 228mm (21.5 x 18.1 x 9.0 inch)
Weight (with mounting plate) 21kg (46.4 lb)


Kunden Service


0882 22 82 47

Produkt-Code
SUN2000-17KTL-M5
MPPT number
2
Typologie
Dreiphasen
Wechselrichterleistung
17kW
8370000022367
0505
