1.272,55 € Vat excl.

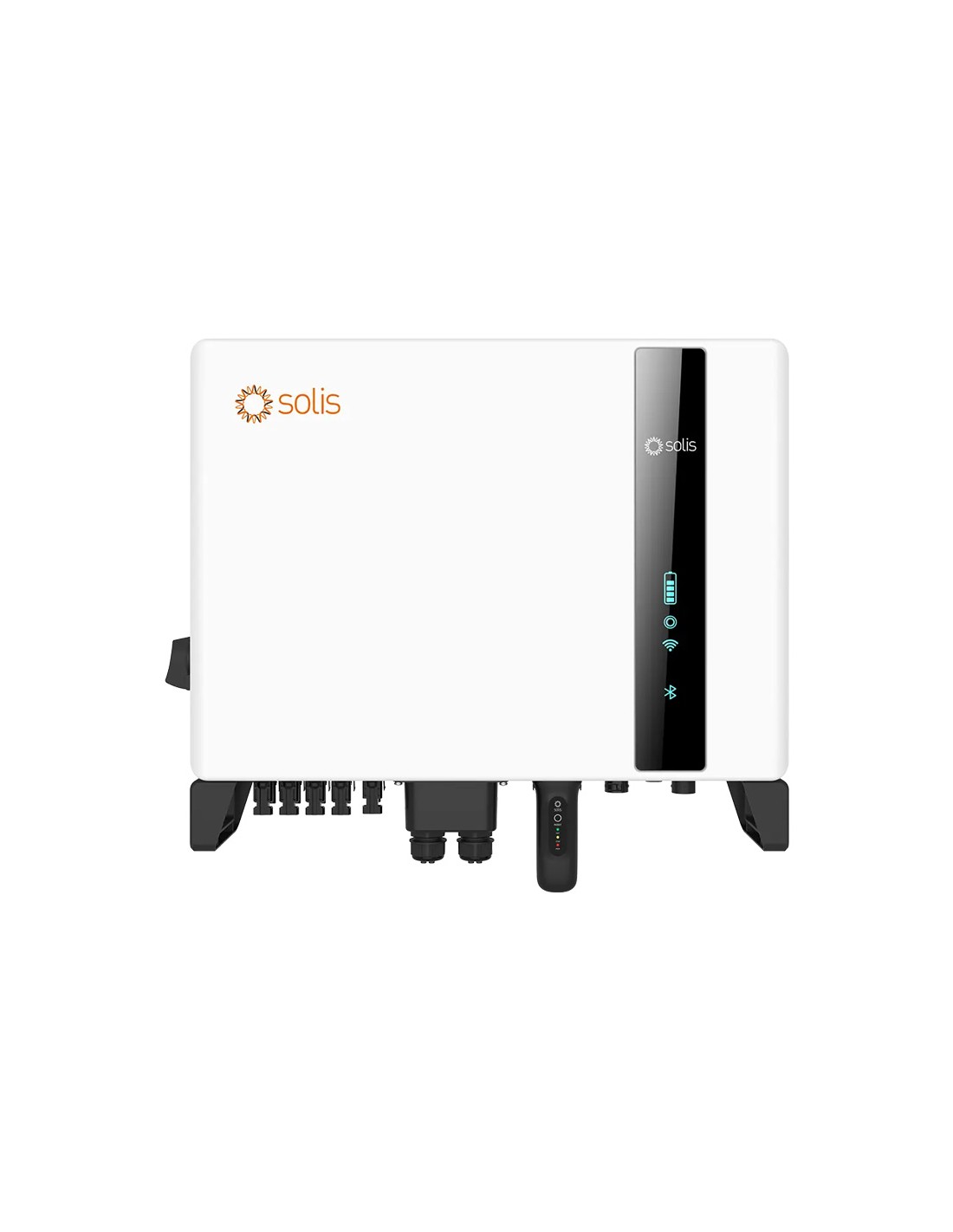

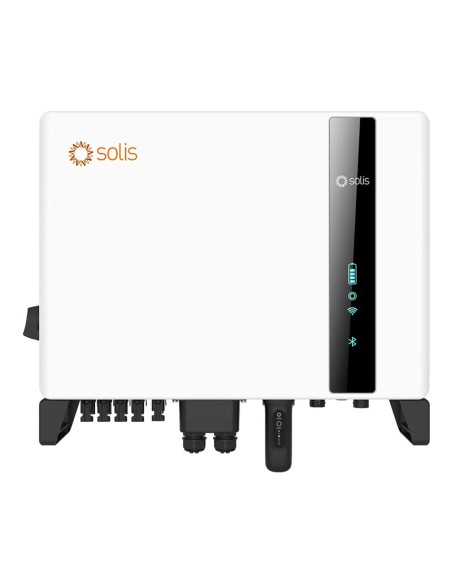

Der Wechselrichter Solis S6 eignet sich für den Anschluss von Solarmodulen und einer Hochvoltbatterie.
Der Wechselrichter Solis S6 eignet sich für den Anschluss von Solarmodulen und einer Hochvoltbatterie. Dieser Wechselrichter fängt tagsüber Sonnenenergie ein, versorgt Haushaltsverbraucher mit Strom und lädt die Batterie auf.
Nachts wird die Hochspannungsbatterie genutzt, um den Haushaltsverbrauch zu decken. Auf diese Weise vermeiden Sie die Nutzung von Energie aus dem Stromnetz.
| DC Input (PV Side) | |
| Recommended maximum photovoltaic field size | 12kW |
| Recommended maximum PV input power | 9.6kW |
| Maximum absolute voltage | 1000 V |
| Nominal voltage | 600 V |
| Startup voltage | 160 V |
| MPPT voltage range | 200 - 850 V |
| Maximum input current | 3 × 16 A |
| Maximum short circuit current | 3 × 24 A |
| MPPT number / Maximum string number | 3 / 3 |
| Battery | |
| Battery type | Lithium Ion |
| Allowed voltage range | 120 - 600 V |
| Maximum charge/discharge power | 6kW |
| Maximum charge/discharge current | 25 A |
| Communication | CAN / RS485 |
| AC Output (Grid Side) | |
| Nominal output power | 5kW |
| Maximum apparent output power | 5 kVA |
| Nominal grid voltage | 3/N/PE, 380 V / 400 V |
| Nominal grid frequency | 50 Hz / 60 Hz |
| Nominal grid output current | 9.1 A / 8.7 A |
| Maximum output current | 9.1 A / 8.7 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
| AC Input (Grid Side) | |
| Maximum AC transmission current | 13.8 A |
| Nominal input voltage | 3/N/PE, 380 V / 400 V |
| Nominal input frequency | 50 Hz / 60 Hz |
| AC Output (Backup) | |
| Nominal output power | 6kW |
| Maximum apparent output power | 9.6 kVA, 60 s |
| Backup switching time | < 10 ms |
| Nominal output current | 9.1 A / 8.7 A |
| THDv (@linear load) | < 2% |
| Efficiency | |
| Maximum efficiency | 97.00% |
| European efficiency | 97.10% |
| Maximum efficiency BAT charged by PV | 98.45% |
| Maximum efficiency BAT charged/discharged in AC | 97.34% |
| Protection | |
| Anti-islanding system | Yes |
| Overcurrent protection on output | Yes |
| Short circuit protection | Yes |

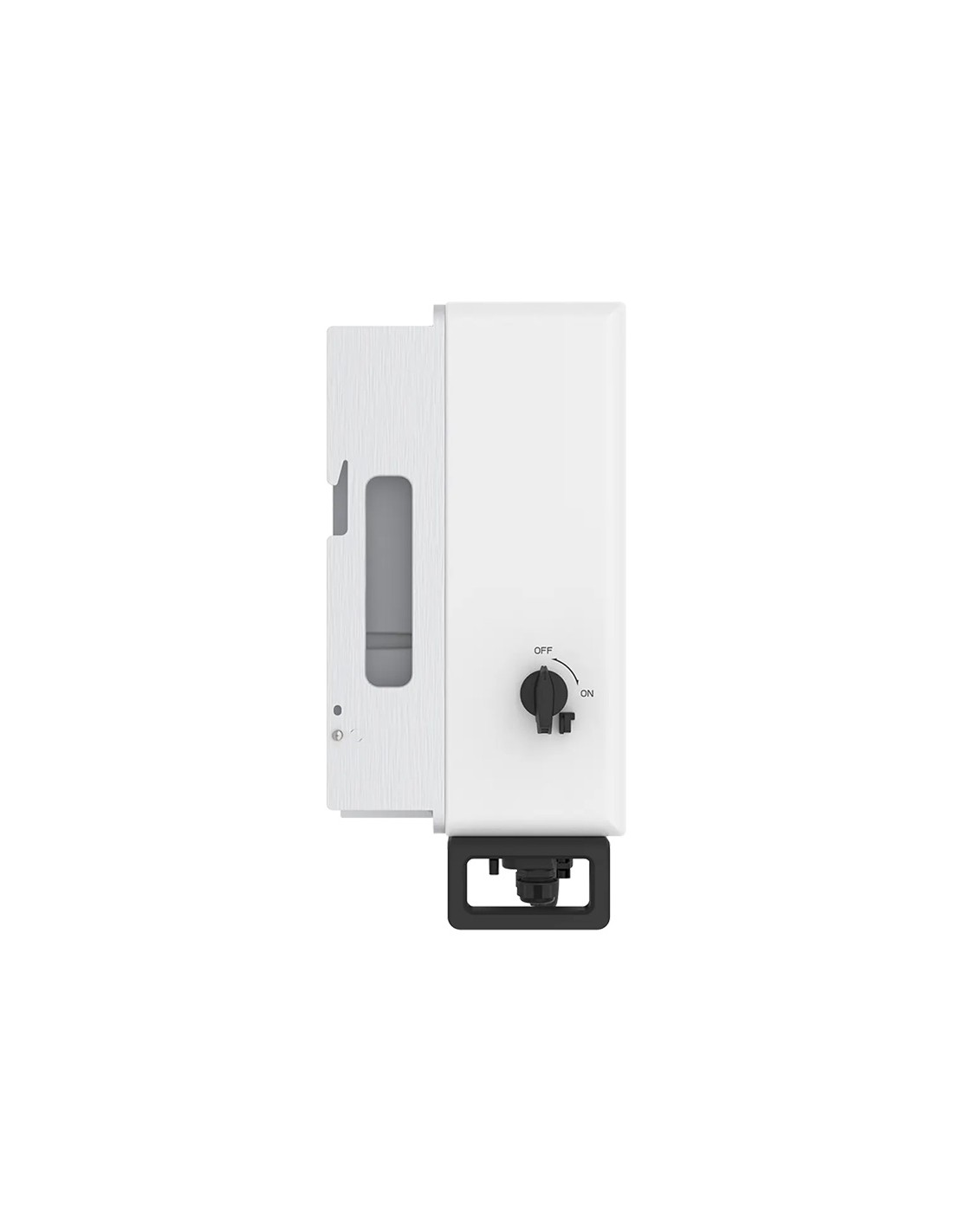

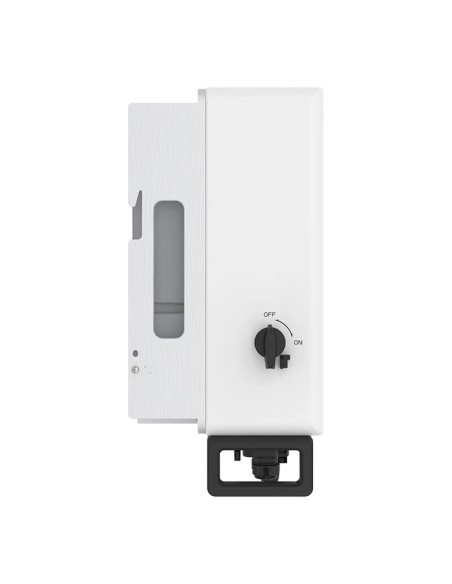

| Integrated DC switch | Yes |
| DC reverse polarity protection | Yes |
| PV overvoltage protection | Yes |
| Battery reverse polarity protection | Yes |
| General Data | |
| Dimensions (W × H × D) | 600 × 500 × 210 mm |
| Weight | 27.6 kg |
| Topology | Transformerless |
| Self-consumption (night) | < 25 W |
| Operating temperature range | -25 ~ +60°C |
| Relative humidity | 0 - 95% |
| Protection degree | IP66 |

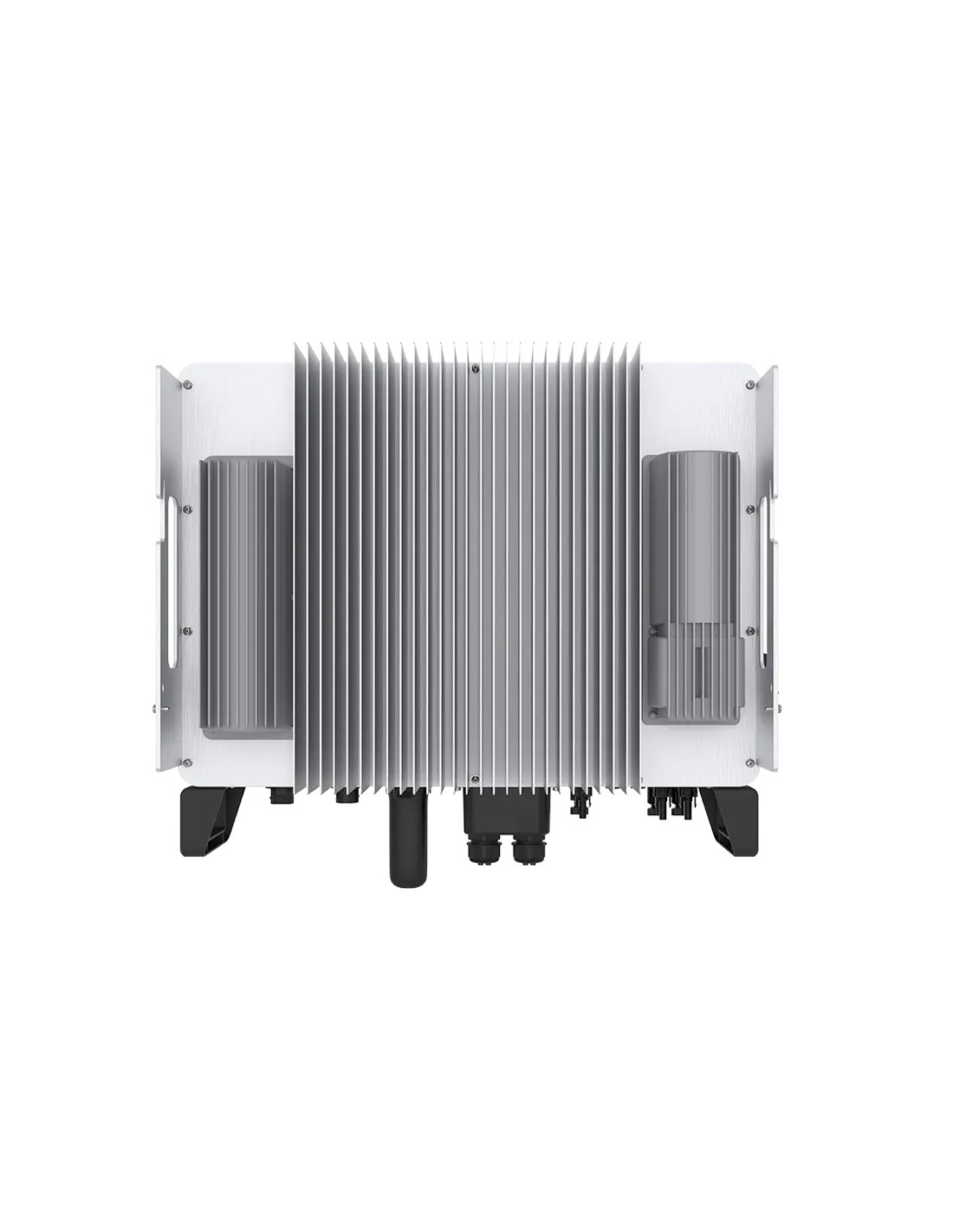

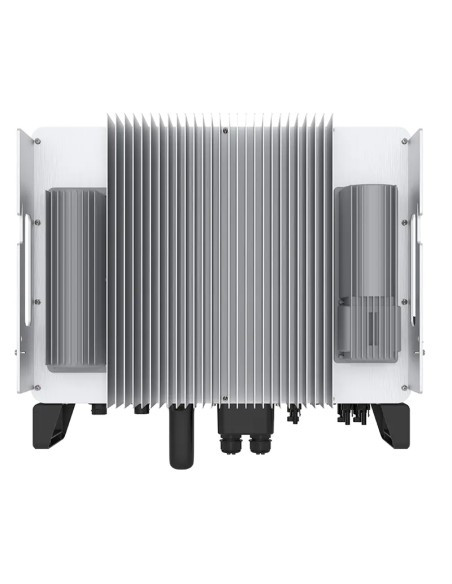

| Cooling method | Natural cooling |
| Maximum operating altitude | 4000 m |
| Grid Connection Standards | |
| Grid connection standard | G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
| Safety / EMC Standards | |
| Safety / EMC standards | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 |
| Features | |

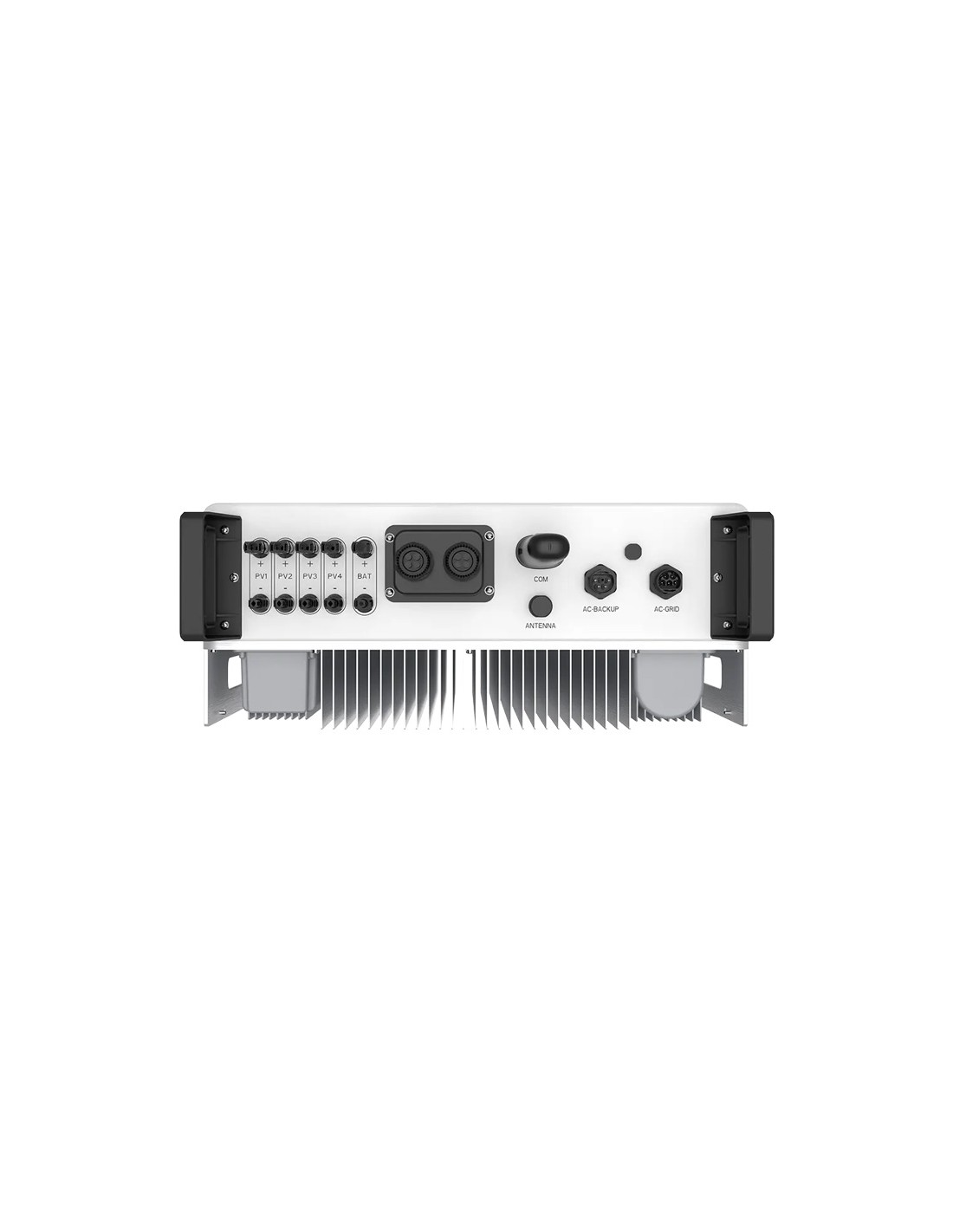

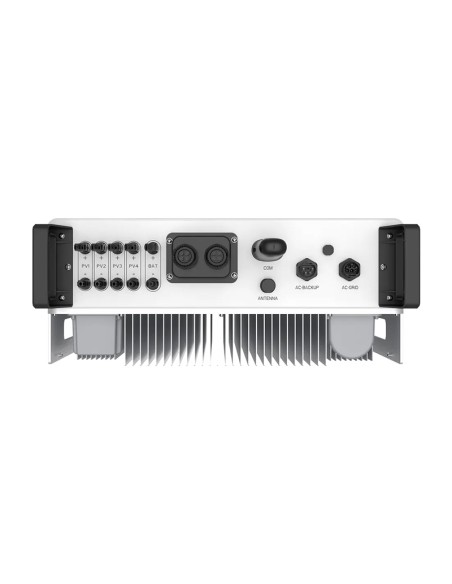

| PV connection | MC4 connector |
| Battery connection | Quick connection plug |
| AC connection | Quick connection plug |
| Display | LED indicator and Bluetooth + App |
| Communication | CAN, RS485, Optional: Wi-Fi, Cellular, LAN |
