Laderegler Smartsolar MPPT 100/30 100Voc 30A Victron Energy
Laderegler Smartsolar MPPT 100/30 100Voc 30A Victron Energy
Laderegler Smartsolar MPPT 100/30 100Voc 30A Victron Energy
Laderegler Smartsolar MPPT 100/30 100Voc 30A Victron Energy

Laderegler Smartsolar MPPT 100/50 100Voc 50A Victron Energy

SCC110050210
Nur noch wenige Teile verfügbar
179,19 €
Bruttopreis 10 %

162,90 € Vat excl.

Internes Bluetooth (unnötiger Schlüssel), Optionales LCD-Display Kommunikationsanschluss VE.Direct, Verfügbar mit Schraubklemmen.



Sind Sie ein Händler oder Installateur?

Für Großeinkauf von Victron Energy Produkte genannt n. 0882 228247, oder schreiben Sie an [email protected]

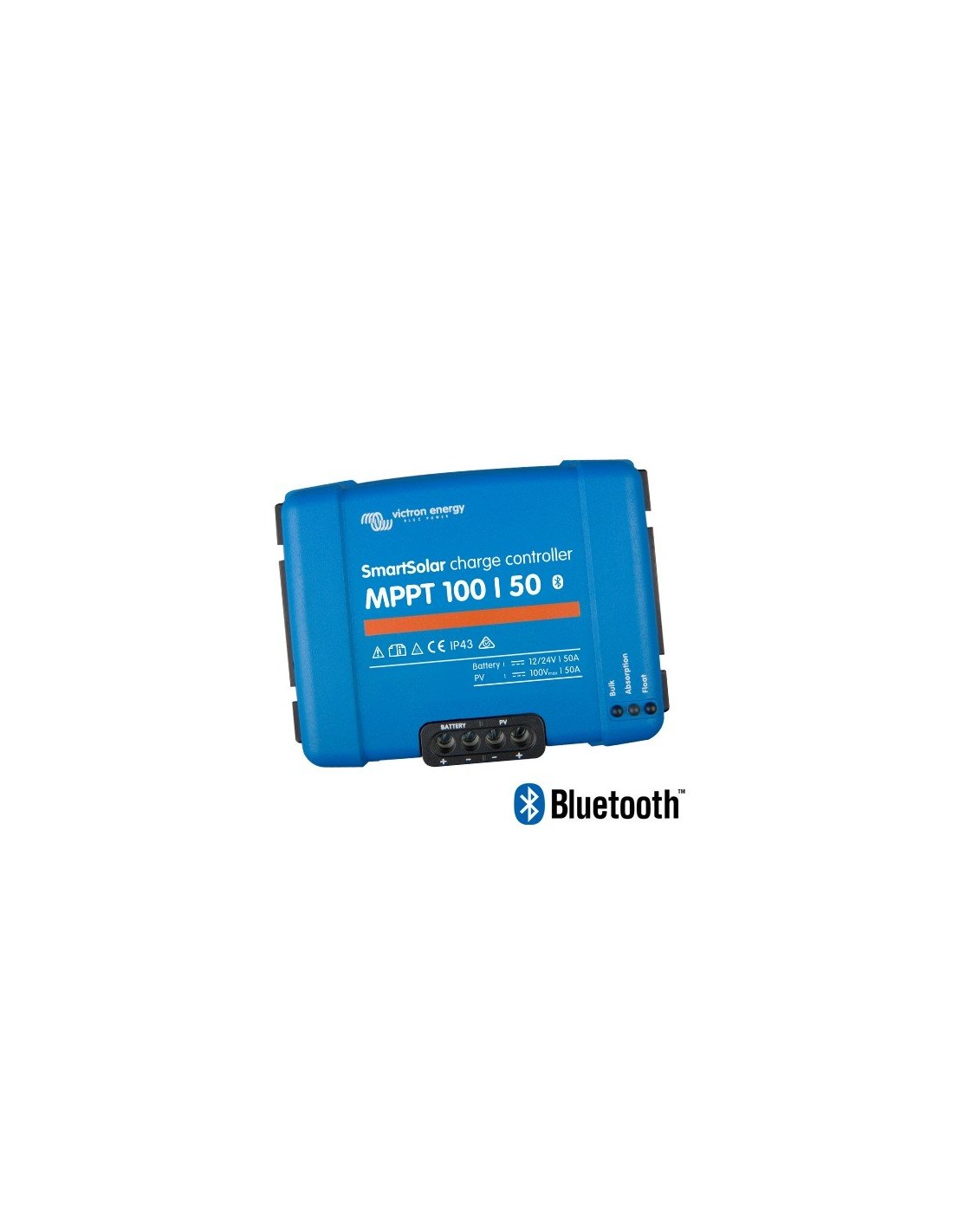

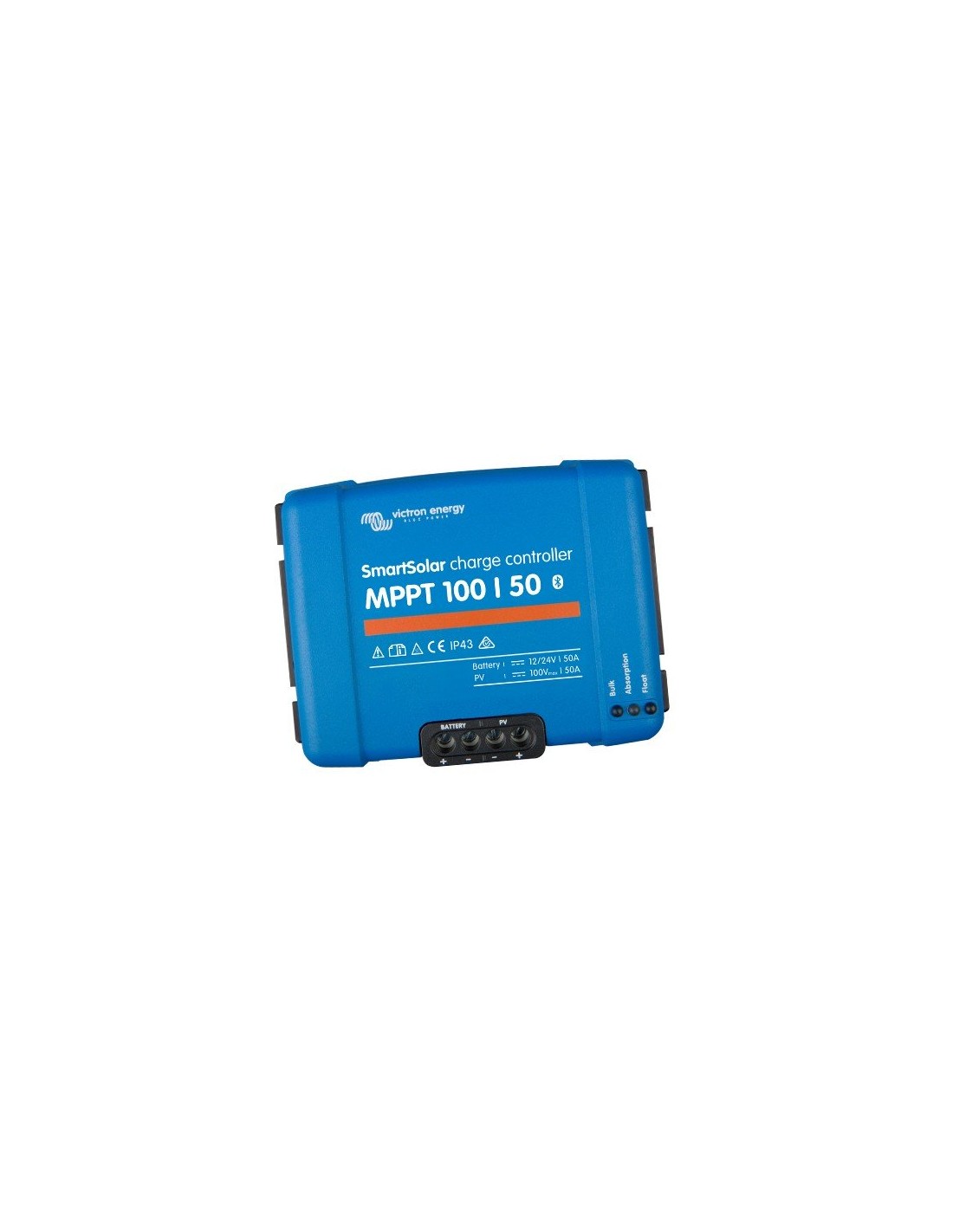

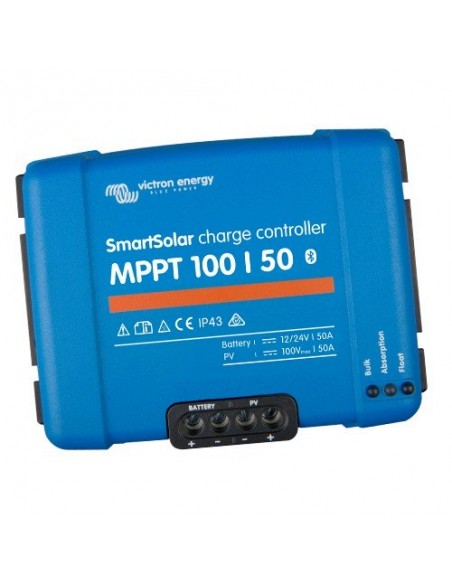

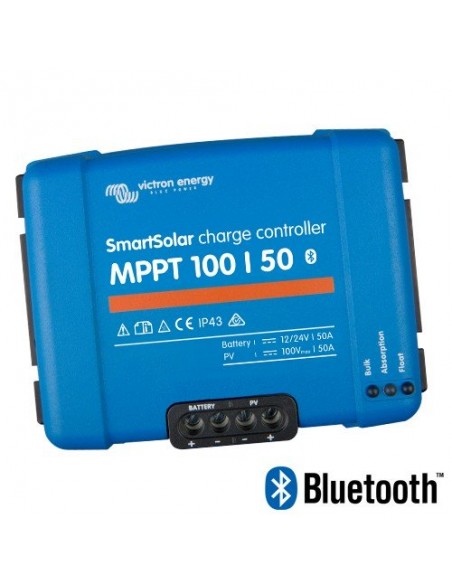

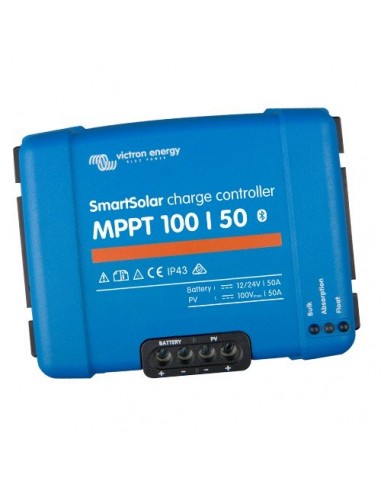

SmartSolar MPPT Laderegler

100/50 100Voc 50A

SmartSolar dreht sich alles um Funktionalität und Optionen. Diese hocheffizienten ultra-schnellen MPPT-Solarladeregler haben alles - von hoher Effizienz, optimaler Teilschattierung, programmierbaren Batteriealgorithmen, Straßenlichtfunktionen und vielem mehr. Smart ist für eingebaute Bluetooth-Geräte zur Überwachung und Steuerung mit VictronConnect vorgesehen. Zu den Optionen gehören die Fernüberwachung über das Internet über das VRM-Portal, sowie ein steckbares LCD-Display für die größeren Modelle.

Tecnical Features

Product Code: SCC110050210
Download Datasheet

Warranty

2 years warranty

Description

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm
See the software section on our website for details

Day/night timing and light dimming option
See the software section on our website for details

Programming, real-time data and history display options
- Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle
and the MPPT app discovery sheet for screenshots.
- ColorControl panel


Anzeige für Bedienung und Überwachung Color Control GX Victron Energy (nicht beinhalten, aber anschaffen trennen)


Das Color Control GX bietet eine intuitive Bedienung und Überwachung aller angeschlossenen Geräte. Die Liste der Victron-Produkte, die sich daran anschließen lassen ist schier endlos: Wechselrichter, Multis, Quattros, MPPT 150/70, die BMV-600 Serie, die BMV-700 Serie, Skylla-i, Lynx Ion und noch viele mehr.

N.B.: das Produkt ist nicht im Lieferumfang enthalten, aber es kann separat erworben werden.
Zum Produkt!

MPPT Control für BlueSolar MPPT Laderegler Victron Energy (nicht beinhalten, aber anschaffen trennen)


The MPPT Control lets you see the status as well as setup all BlueSolar MPPT Charge Controllers that have a VE.Direct communications port.

N.B.: das Produkt ist nicht im Lieferumfang enthalten, aber es kann separat erworben werden.
Zum Produkt!

   Downloads

Download Datasheet

Für alle anderen Dokumente herunterzuladen, besuchen Sie bitte die Website: www.victronenergy.com

  Kunden Service

0882 22 82 47
[email protected]
Produkt-Code
SCC110050210
Technologie (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 VDC Auto work
Rated Battery Current
50A
Max. PV input power
12V (700W)24V (1400W)
Self-consumption
10 mA
Terminal
13 mm²
Working temperature
-30°C - +60°C
Overall dimension
130x186x 70mm
Net weight
1.3kg
8380000025893
9538
