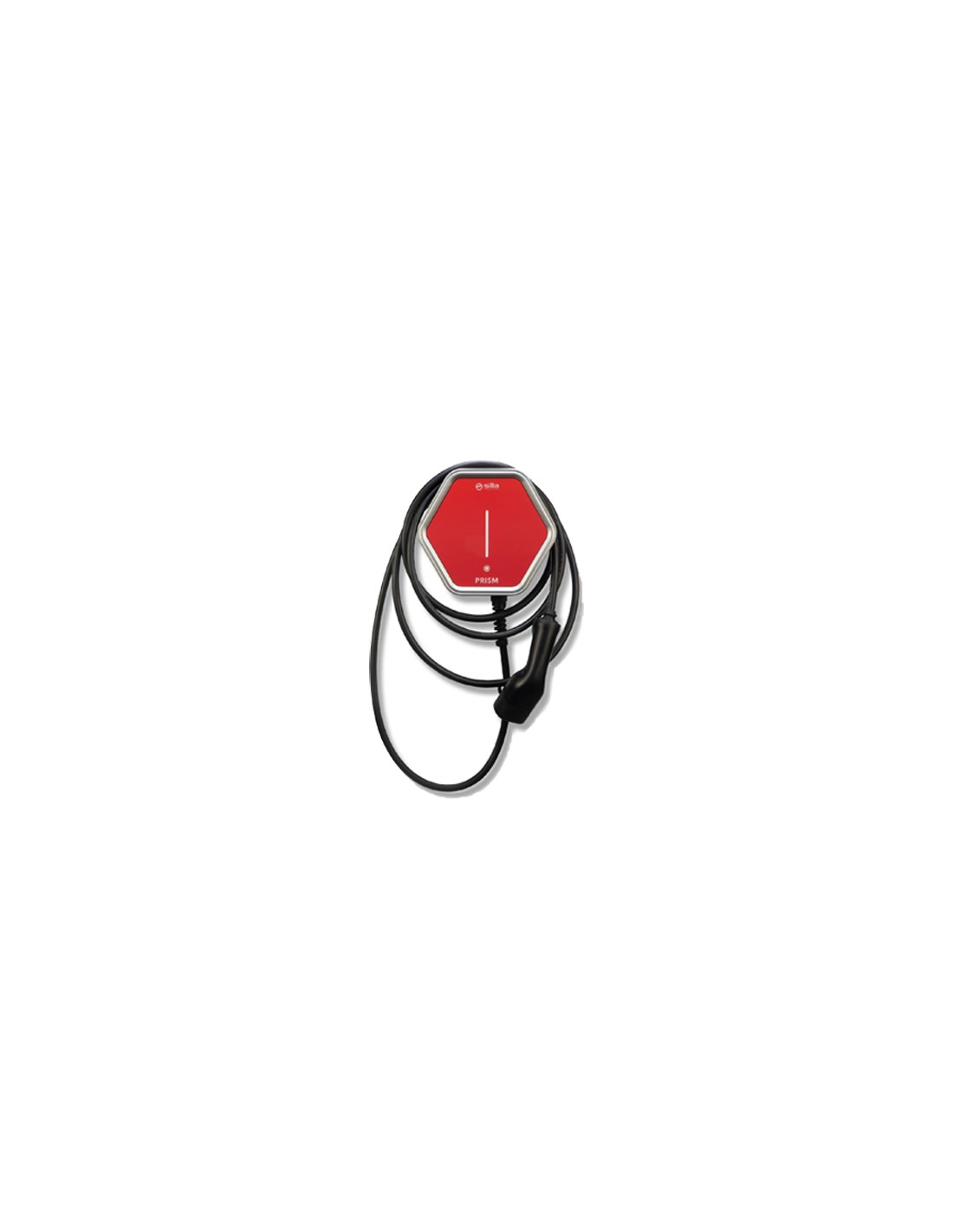

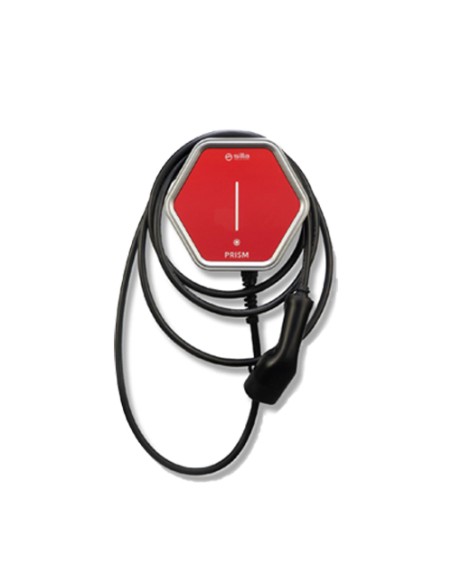

Einphasige Ladesäule 7.4kW Prism Solar Basic
Features
Prism Basic, das Einstiegsmodell, bietet serienmäßig Lastverteilung und FI-Schutzschalter – alles, was Sie zum sicheren Laden Ihres Autos benötigen. Mit dem Kauf des Smart Covers können Sie jederzeit auf Prism Solar aufrüsten.
Laden Sie für weitere Details die folgenden Dokumente herunter:
- Datasheet: [Download]
Technische Eigenschaften:
| ELECTRICAL SPECIFICATIONS | |
| Code with 5 m cable | BCS01320205 |
| Charging connector type | Type 2 |
| Power supply | 230V AC |
| Maximum current | 32A |
| Maximum charging power | 7.4 kW |
| Frequency | 50 Hz - 60 Hz |
| Electrical safety class | Class I |
| MECHANICAL SPECIFICATIONS | |
| Current sensor up to 100A | Yes |
| Material | ABS Bayblend |
| Protection rating | IP65 |
| Certifications | CE, IEC 61851, IEC 62196-2 |
| Integrated cable holder | Yes |
| Dimensions (without cable) | 263 × 238 × 88 mm |
| Weight | 4 kg (with 5 m cable) |
| Warranty | 2 Years |
- Typologie
- Einphasen
- Macht
- 7.4kW
