Charging Columns and Wall Box
Single phase charging column 7.4kW Prism Solar Basic electric vehicles
BCS01320205
€490.94
VAT included
10 %
€446.31 Vat excl.
Prism Basic, the entry-level model, includes load balancing and RCD protection as standard, everything you need to charge your car without sacrificing safety.

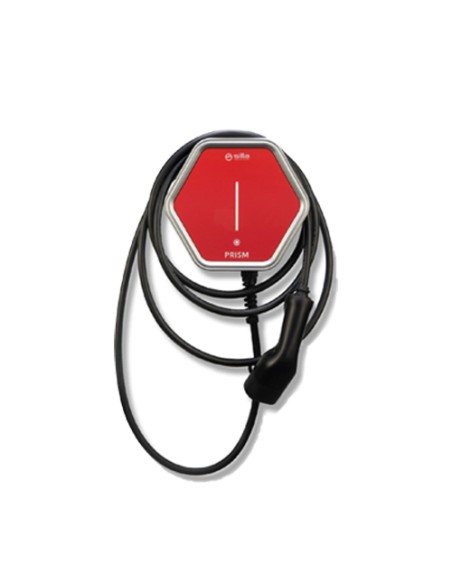

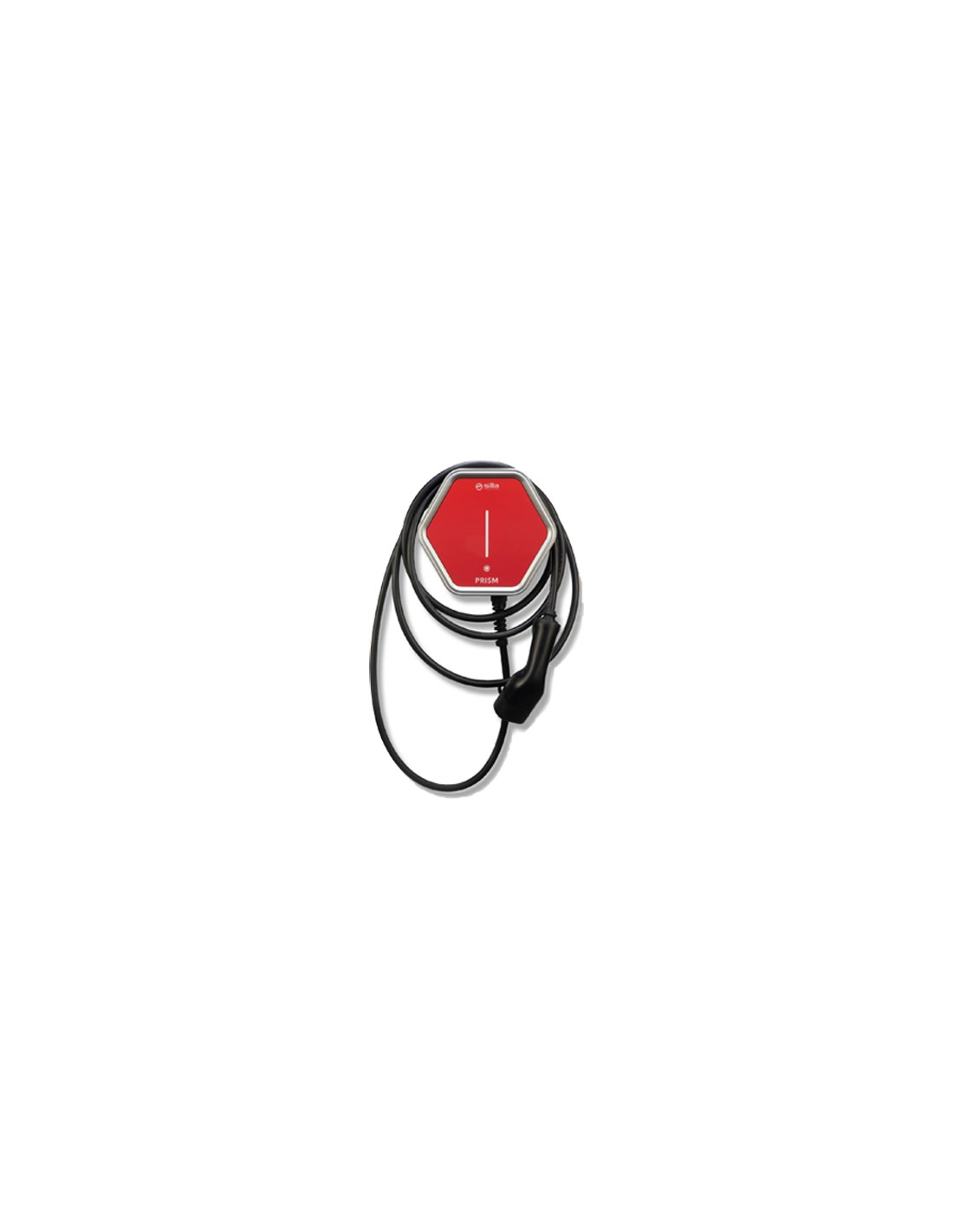

Single phase charging column 7.4kW Prism Solar Basic
Features
Prism Basic, the entry-level model, includes load balancing and RCD protection as standard, everything you need to charge your car without sacrificing safety. It can be upgraded to Prism Solar at any time with the purchase of the Smart Cover.
For more details, download the following documents:
- Datasheet: [Download]
Technical features:
| ELECTRICAL SPECIFICATIONS | |
| Code with 5 m cable | BCS01320205 |
| Charging connector type | Type 2 |
| Power supply | 230V AC |
| Maximum current | 32A |
| Maximum charging power | 7.4 kW |
| Frequency | 50 Hz - 60 Hz |
| Electrical safety class | Class I |
| MECHANICAL SPECIFICATIONS | |
| Current sensor up to 100A | Yes |
| Material | ABS Bayblend |
| Protection rating | IP65 |
| Certifications | CE, IEC 61851, IEC 62196-2 |
| Integrated cable holder | Yes |
| Dimensions (without cable) | 263 × 238 × 88 mm |
| Weight | 4 kg (with 5 m cable) |
| Warranty | 2 Years |
- Typology
- Single-phase
- Power
- 7.4kW
