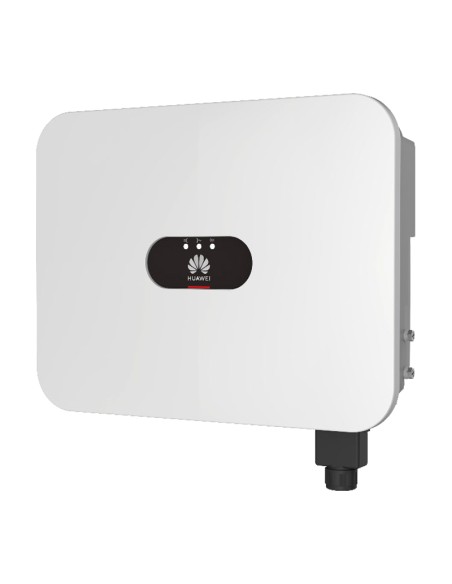

Huawei 4.6kW SUN2000-4.6KTL-LB0 einphasige Hybrid-Wechselrichter Solar-Photovoltaik

Huawei 4.6kW SUN2000-4.6KTL-LB0 einphasige Hybrid-Wechselrichter Solar-Photovoltaik

Name: Huawei 4.6kW SUN2000-4.6KTL-LB0 einphasige Hybrid-Wechselrichter Solar-Photovoltaik
Brand: Huawei
SKU: SUN2000-4,6KTL-LB0
Price: 988.47 EUR
Availability: InStock

Artikel-Nr. SUN2000-4,6KTL-LB0

988,47 €

Bruttopreis 10 %

898,61 € Vat excl.

Aktive Sicherheit: Aktiver Schutz gegen Lichtbögen;
Höherer Ertrag: Bis zu 30% mehr Energie mit dem Optimierer;
BatteryReady: Plug&Play-Batterieschnittstelle.

Huawei 4.6kW SUN2000-4.6KTL-LB0 einphasige Hybrid-Wechselrichter

Features

Aktive Sicherheit: Aktiver Schutz gegen Lichtbögen;
Höherer Ertrag: Bis zu 30% mehr Energie mit dem Optimierer;
BatteryReady: Plug&Play-Batterieschnittstelle.

Laden Sie für weitere Details die folgenden Dokumente herunter:

Datasheet: [Download]

Technische Eigenschaften

Input
Recommended max PV power	6,900 Wp
Maximum input voltage	600 V
Maximum input current per MPPT	16 A
Maximum short-circuit current	20 A
Startup voltage	50 V
MPPT operating voltage range	40~560V
Nominal input voltage	360 V
Max number of inputs per MPPT	2
Number of MPPTs	1
Input (Battery DC)
Compatible batteries	LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Operating voltage range	350~560Vdc
Maximum operating current	16.5A
Maximum charge power	6,000 W
Maximum discharge power	4,600 W
Output (OnGrid)
Grid connection	Single-phase
Nominal output power	4,000 W
Maximum apparent power	5,000VA
Nominal output voltage	220Vac/230Vac/240Vac
Grid frequency rating	50Hz/60 Hz
Maximum output current	23A
Backup power output	Yes (viaSmartGuard63AS0)
Features & Protections
Anti-islanding protection	Yes
DC reverse polarity protection	Yes
Insulation monitoring	Yes
DC overvoltage protection	Yes, compliant with TYPE II protection class according to EN/IEC61643-11
AC overvoltage protection	Yes, compliant with TYPE II protection class according to EN/IEC61643-11
Residual current monitoring	Yes
AC overcurrent protection	Yes
AC short-circuit protection	Yes
AC overvoltage protection	Yes
Arc fault protection	Yes
Battery charging from the grid	Yes
Standard compliance
Certifications	EN/IEC 62109-1,EN/IEC62109-2
Grid connection standards	G98,G99,G100,EN50549-1,CEI0-21,VDE-AR-N-4105,C10/11, P140, UTEC15-712, TOR Erzeuger, IEC61727, IEC62116
Compatible Optimizers
Compatible optimizers	SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P
Display	LED indicators, built-in WLAN + FusionSolar App
Communication	RS485, WLAN via built-in WLAN module, Ethernet via Smart Dongle-WLAN FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA
Operating temperature range	-25~+60°C
Cooling	Natural convection
Protection rating	IP66
Dimensions (W x H x D)	425 x 376.5 x 150 mm
Weight	15kg
