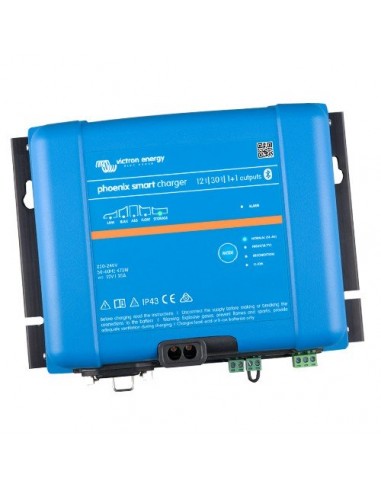

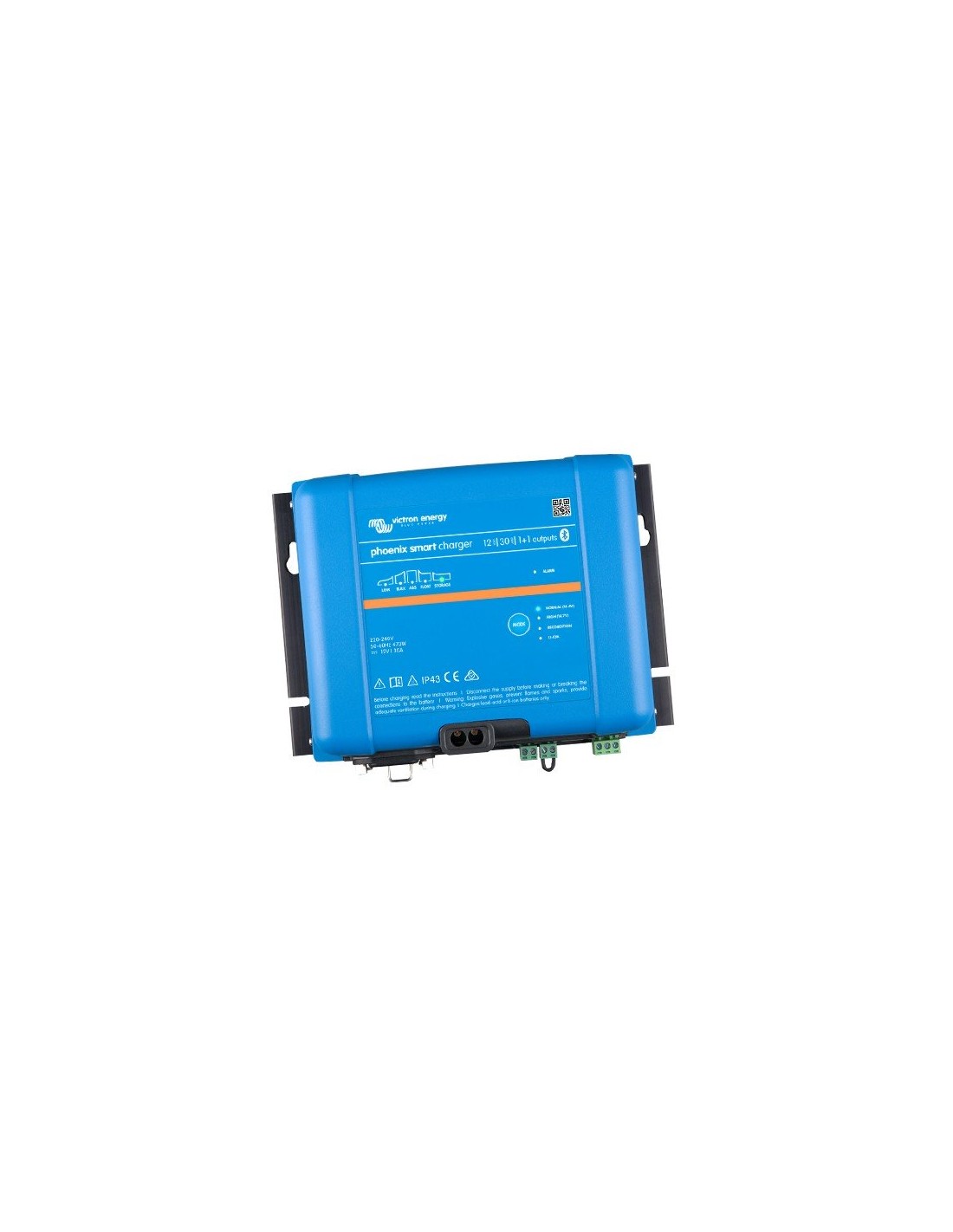

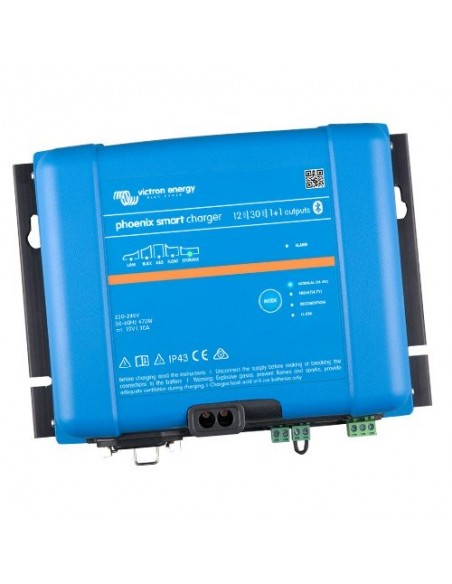

Charger 30A 12V Victron Energy Phoenix Smart Bluetooth 12/30 Outputs (1+1)
Charger 30A 12V Victron Energy Phoenix Smart Bluetooth 12/30 Outputs (1+1)
Charger 30A 12V Victron Energy Phoenix Smart Bluetooth 12/30 Outputs (1+1)
Charger 30A 12V Victron Energy Phoenix Smart Bluetooth 12/30 Outputs (1+1)

Charger 30A 12V Victron Energy Phoenix Smart Bluetooth 12/30 Outputs (1+1)

PSC123051085
Last items in stock
€423.69
VAT included 22 %

€347.29 Vat excl.

Designed with boat owners in mind, this 5-step charger can provide a 30A charge to each of the battery banks. Thanks to Bluetooth, you can monitor the charger and set alarms directly from your phone. Adaptive, intelligent, dynamic charging characteristics.



Charger Phoenix Smart IP43 30A 12V

Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.

Features

Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.

Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.

The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.

Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached

Less maintenance and aging when the battery is not in use: the Storage Mode
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours.
In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.
Alternatively full control of voltage and current can be achieved with Bluetooth.

Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.
Three preprogrammed algorithms can be selected with the mode button.

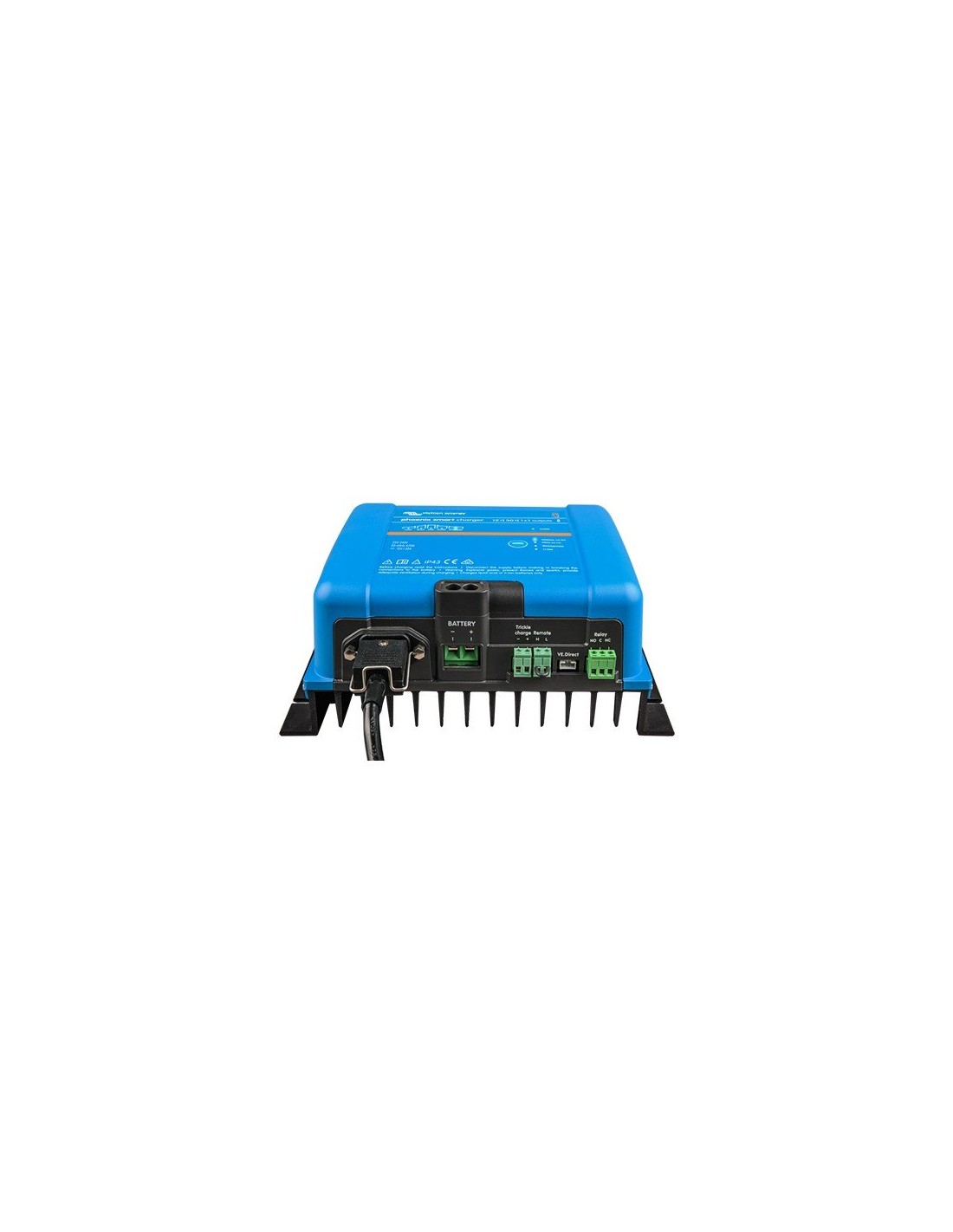

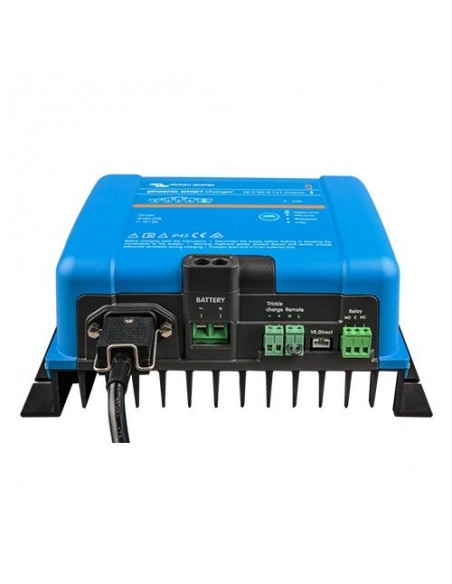

Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.
Alternatively, terminal H can be pulled high, or terminal L can be pulled low.

VE.Direct interface
For a wired data connection to a Color Control panel, PC or other devices.

Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.

Technical Features

  • Model: PSC123051085 - 12/30 (1+1)

CHARGER

  • Input voltage: 230 VCA(intervallo: 210 – 250 V)
  • DC input voltage range: CC 290 – 355 VCC
  • Frequency: 45 - 65 Hz
  • Power factor: 0,7
  • Back current drain: AC disconnected: < 0,1 mA AC connected and charger remote off: < 6 mA
  • No load power consumption: 1W
  • Efficiency: 94%
  • Charge voltage 'absorption': Normal: 14,4V  -  High: 14,7V  -  Li-ion: 14,2V
  • Charge voltage 'float': Normal: 13,8V  -  High: 13,8V  -  Li-ion: 13,5V
  • Storage mode: Normal: 13,2V  -  High: 13,2V  -  Li-ion: 13,5V
  • Fully programmable: Yes, with Bluetooth and/or VE.Direct
  • Charge current house battery: 30A
  • Low current mode: 15A
  • Charge current starter battery: 3A
  • Charge algorithm: 5 stage adaptive
  • Protection: Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
  • Can be used as power supply: Yes, output voltage can be set with Bluetooth and/or VE.Direct
  • Operating temp. range: -20 to 60°C (0 - 140°F) Rated output current up to 40°C, derate linearly to 20% at 60°C
  • Humidity (non-condensing): max 95%
  • Relay (programmable): DC rating: 5 A up to 28 VDC



ENCLOSURE

  • Material & Colour: aluminium (blue RAL 5012)
  • Battery-connection: Screw terminals 16 mm² (AWG6)
  • AC-connection: IEC 320 C14 inlet with retainer clip (AC cord with country specific plug must be ordered separately)
  • Protection category: IP43 (electronic components), IP22 (connection area)
  • Weight: 3,5 kg
  • Dimensions (AxLxP): 180 x 249 x 100 mm



STANDARDS

  • Safety: EN 60335-1, EN 60335-2-29
  • Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
  • Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
  • Vibration: IEC68-2-6:10-150Hz/1.0G

   Downloads

Datasheet EN [LINK]
User Manual [LINK]

  Customer Service

0882 22 82 47
[email protected]
Product Code
PSC123051085
Input voltage AC (V)
230VCA
Input frequency (Hz)
45-65Hz
Power factor
0.7
Charging current (A)
30A
Humidity (non-condensing)
max 95%
Protection
IP43
Weight kg
3,5Kg
Dimension (axlxp)
180 x 249 x 100mm
8719076041900
