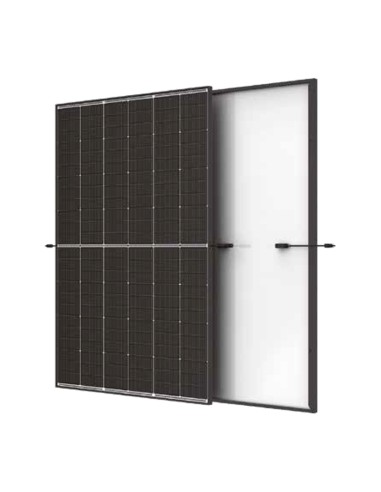

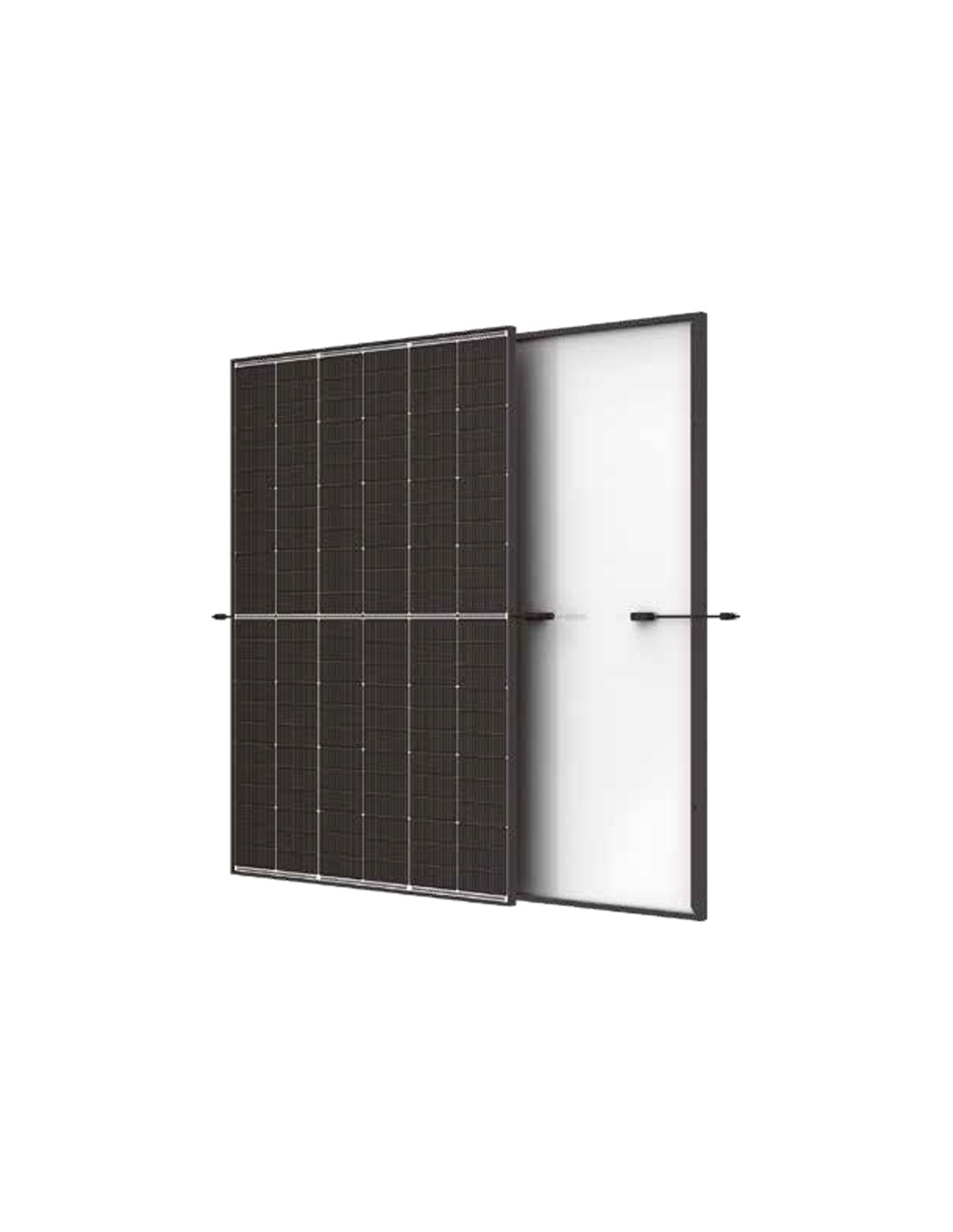

TRINASOLAR Vertex S+ 455W black frame monocrystalline photovoltaic solar panel
TRINASOLAR Vertex S+ 455W black frame monocrystalline photovoltaic solar panel

TRINASOLAR Vertex S+ 455W black frame monocrystalline photovoltaic solar panel

TSM-455NEG9R.28
€75.26
VAT included 10 %

€68.42 Vat excl.

Photovoltaic solar panel N-type TOPCon Dual Glass 455W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).



Photovoltaic Solar Panel 455W monocrystalline TRINASOLAR Vertex S+ N-type TOPCon Dual Glass black frame

Model: TSM-455NEG9R.28

Features

  • Maximum power output: 455W;
  • Positive power tolerance: (0~+5W);
  • Maximum efficiency: up to 22.8%.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL TSM-455NEG9R.28
Peak power (Pmax) 455W
Voltage at Pmax (Vmp) 45.0V
Current at Pmax (Imp) 10.11A
Open Circuit Voltage (Voc) 53.4V
Short Circuit Current (Isc) 10.77A
Maximum System Voltage 1500V DC (IEC)
Maximum Fuse Rating 25A
Efficiency module 22.8%
MECHANICAL CHARACTERISTICS
Number of Cells 144
Solar Cells TOPCon N-type Module
Frame 30 mm Anodized Aluminum Alloy, Black
Junction Box IP68
Cable Cross-Section 4.0 mm UV-resistant single-core cables mm2
Dimensions 1762 x 1134 x 30 mm
Weight 21.0Kg
Packaging 36 pieces per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
455W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
144
