€94.66 Vat excl.

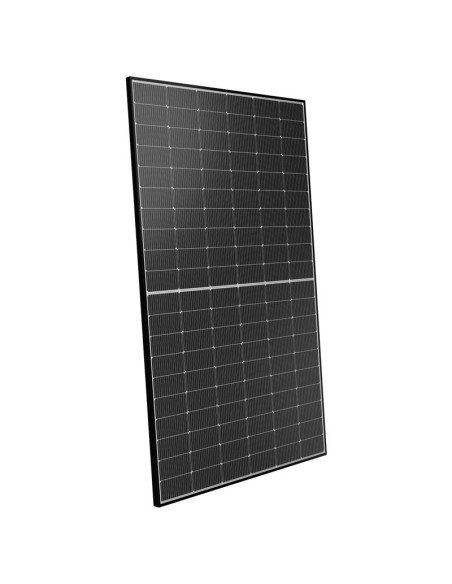

Photovoltaic solar monocrystalline panel 510W, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
| ELECTRICAL CHARACTERISTICS | |
| TEMPLATE | OR10H510MNDB-BF |
| Peak power (Pmax) | 510W |
| Voltage at Pmax (Vmp) | 37.19V |
| Current at Pmax (Imp) | 13.71A |
| Voltage Open Circuit Current (Voc) | 43.64V |
| Short Circuit Current (Isc) | 14.43A |
| Maximum System Voltage | 1500V |
| Maximum Fuse Rating | 30A |
| Module Efficiency | 23.63% |
| MECHANICAL CHARACTERISTICS | |
| Cells | 120 M10 HALF monocrystalline N-TYPE |
| Frame | Double-thickness anodized aluminum alloy |
| Junction Box | IP68 Certified |
| Cable Cross-Section | 4.0 mm² |
| Dimensions | 1903 x 1134 x 30 mm |
| Weight | 25.7 kg |
| Pallet panels | 36/37 pieces per pallet |
