€116.87 Vat excl.

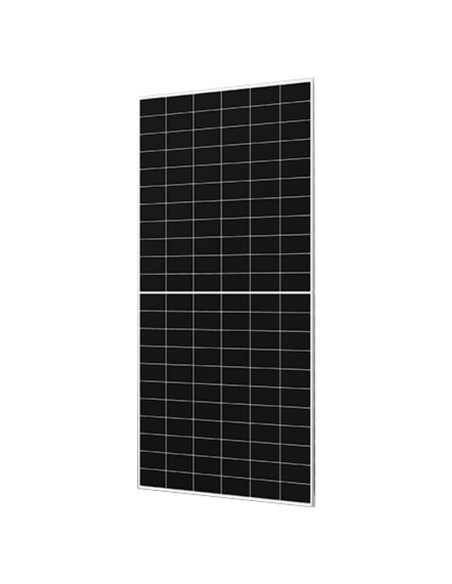

650W bifacial monocrystalline silicon photovoltaic solar panel, ideal for the installation of both grid-connected (on-grid) and stand-alone (off-grid) photovoltaic systems
The 132-cell module combines high energy production efficiency with excellent value for money. The ABC N-Type configuration improves electrical distribution within the panel to increase the product’s output. It is suitable not only for industrial installations but also for residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| MODEL | AIKO-A650-GRH66DW |
| Peak power (Pmax) | 650W |
| Voltage at Pmax (Vmp) | 40.68V |
| Current at Pmax (Imp) | 15.98A |
| Open Circuit Voltage (Voc) | 49.70V |
| Short Circuit Current (Isc) | 16.64A |
| Maximum System Voltage | 1500V |
| Maximum Fuse Rating | 30A |
| Efficiency module | 24.1% |
| MECHANICAL CHARACTERISTICS | |
| Cells | 132 monocrystalline ABC N-Type |
| Frame | Anodized aluminum |
| Junction Box | IP68, 3 bypass diodes |
| Cable Cross-Section |
4 mm² (IEC) 12 AWG (UL) |
| Dimensions | 2382 x 1134 x 30 mm |
| Weight | 32.5kg ±3% |
| Pallet panels | 36 pieces per pallet |
