€92.02 Vat excl.

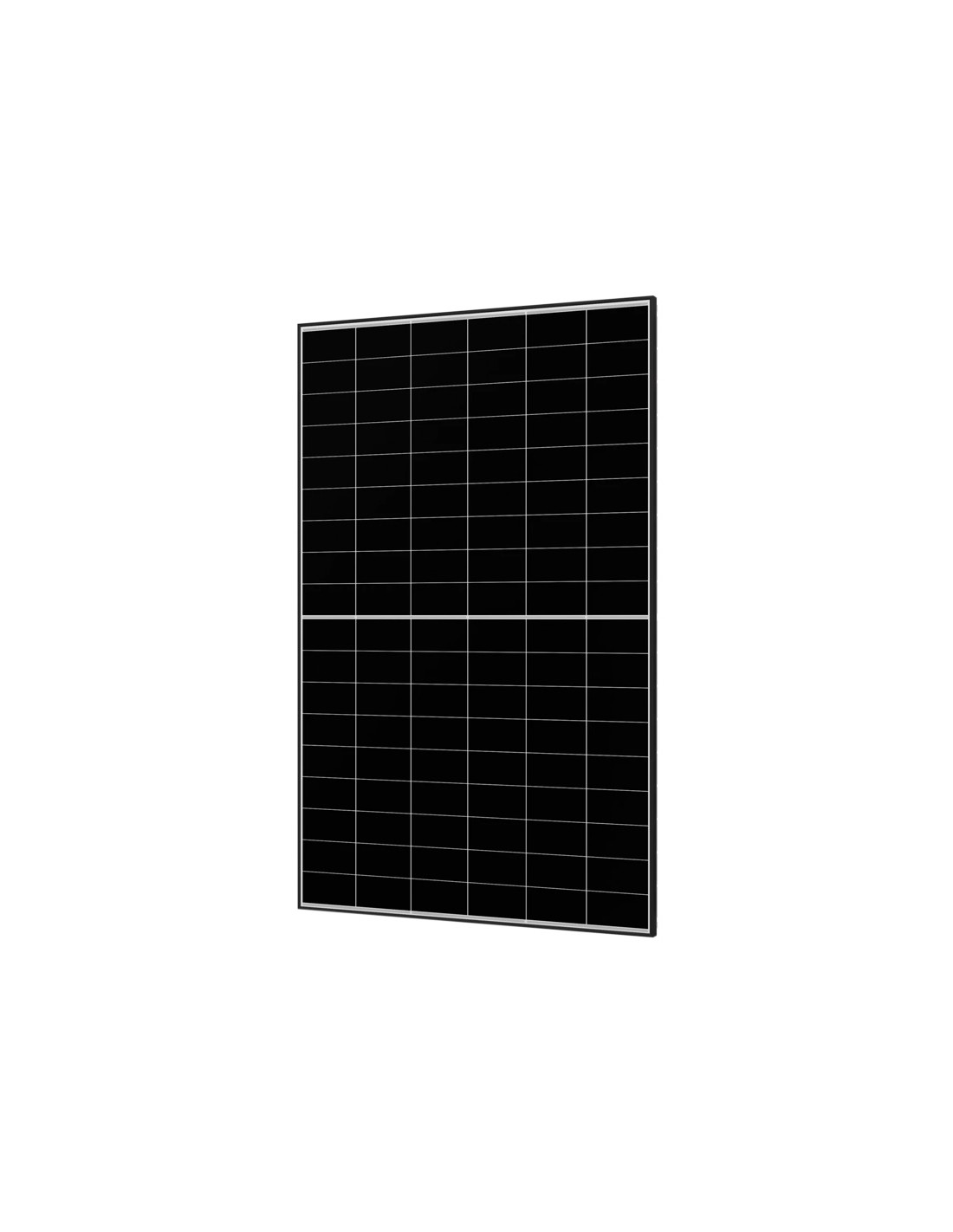

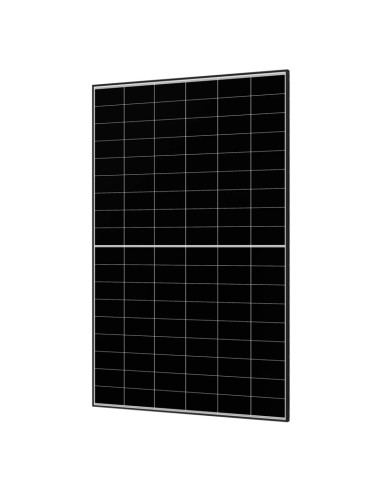

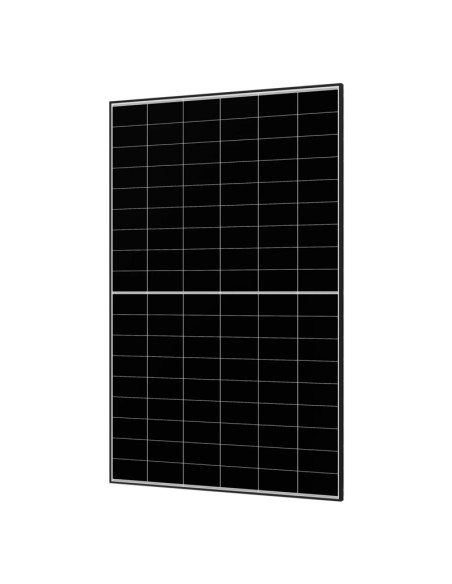

Photovoltaic solar panel 475W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
The 108-cell module combines high energy production efficiency with an excellent quality/price ratio. The ABC N-Type configuration improves the electrical distribution inside the panel to increase the product's yield. It is suitable not only for industrial installations but also for residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| MODEL | AIKO-A475-MAH54Dw |
| Nominal Output (Pmax) | 475W |
| Voltage at Pmax (Vmp) | 34.80V |
| Current at Pmax (Imp) | 13.66A |
| Open Circuit Voltage (Voc) | 41.24V |
| Short Circuit Current (Isc) | 14.35A |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 25A |
| Module Efficiency | 23,8% |
| MECHANICAL CHARACTERISTICS | |
| Solar Cells | 108 monocrystalline ABC N-Type |
| Frame | Black anodized aluminum |
| Junction Box | IP68, three bypass diodes |
| Cables Section | 4 mm² (IEC) 12 AWG (UL) ±1200 mm |
| Dimensions | 1757 x 1134 x 30mm |
| Weight | 24.2 kg |
| Pieces per pallet | 37 pieces per pallet |
