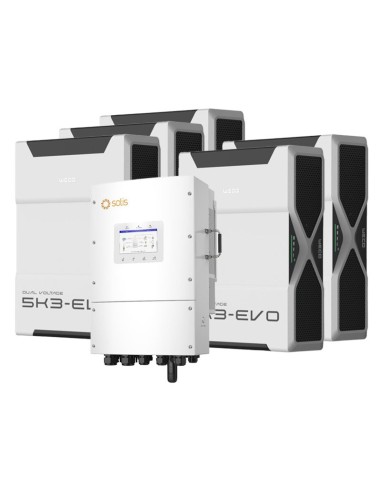

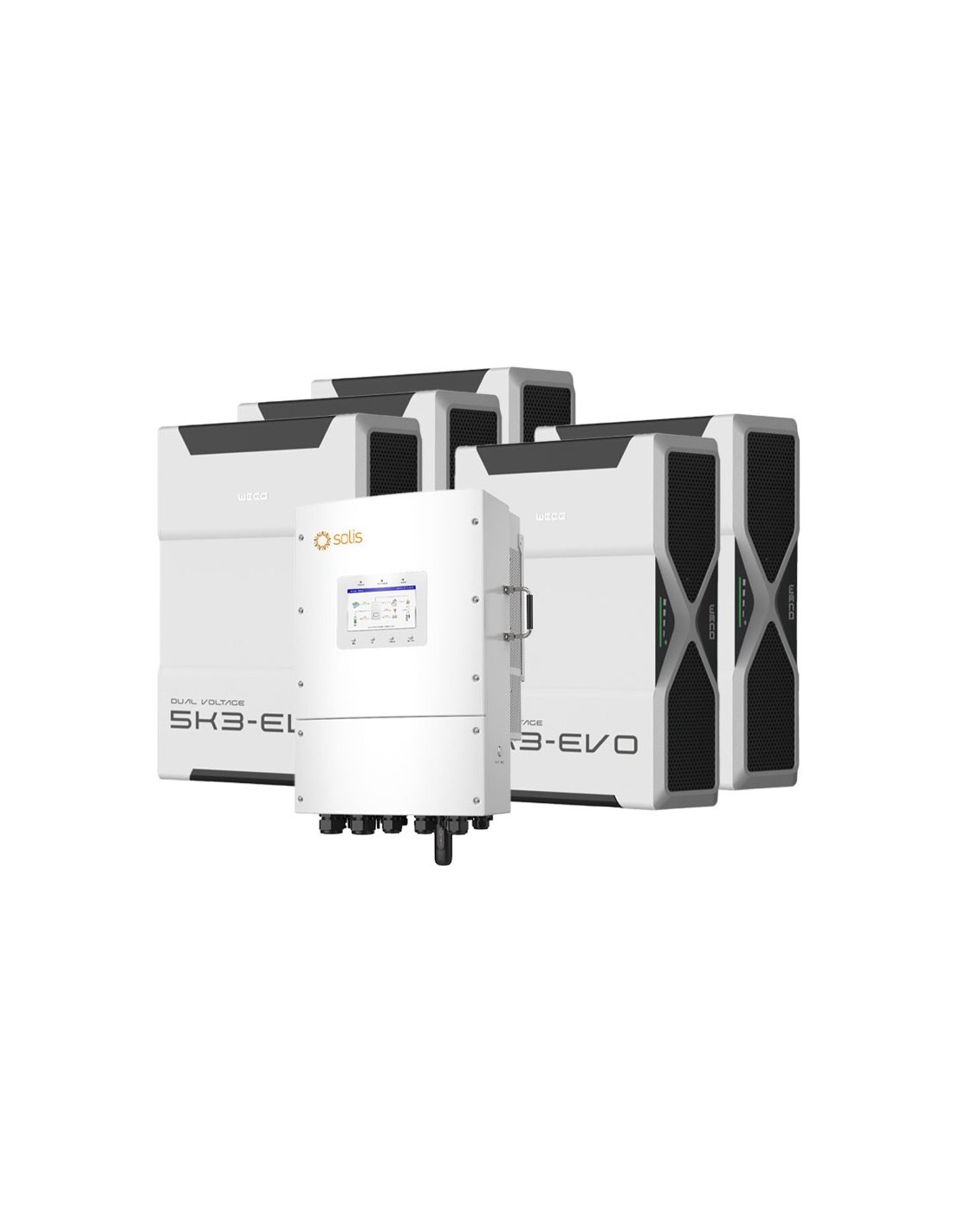

Three-phase storage system Solis 8kW LV inverter 26.1kWh lithium battery Weco 5k3 EVO

New
Pack

Three-phase storage system Solis 8kW LV inverter 26.1kWh lithium battery Weco 5k3 EVO

Name: Three-phase storage system Solis 8kW LV inverter 26.1kWh lithium battery Weco 5k3 EVO
Brand: Solis
SKU: KSA-8.0EH3P-K02-WECO-EVO-26.1
Price: 8612.56 EUR
Availability: InStock

Reference KSA-8.0EH3P-K02-WECO-EVO-26.1

Last items in stock

€8,612.56

VAT included 10 %

€7,829.60 Vat excl.

Storage system with Solis inverter for grid connection with storage in Weco Lithium battery.

NOTE: SYSTEM DESIGNED FOR WALL MOUNTING.

FOR HORIZONTAL OR VERTICAL FLOOR MOUNTING OPTIONS, CONTACT TECHNICAL SUPPORT.

This pack contains

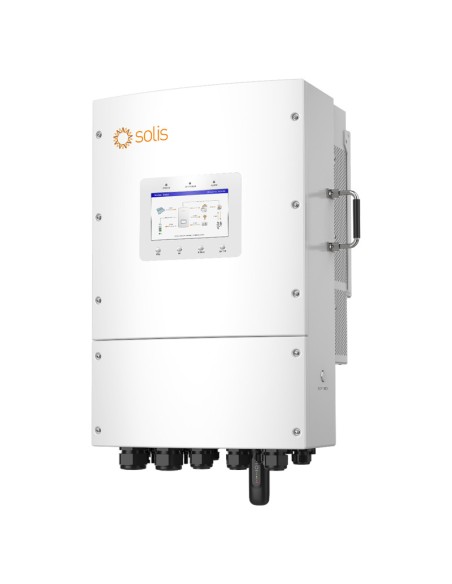

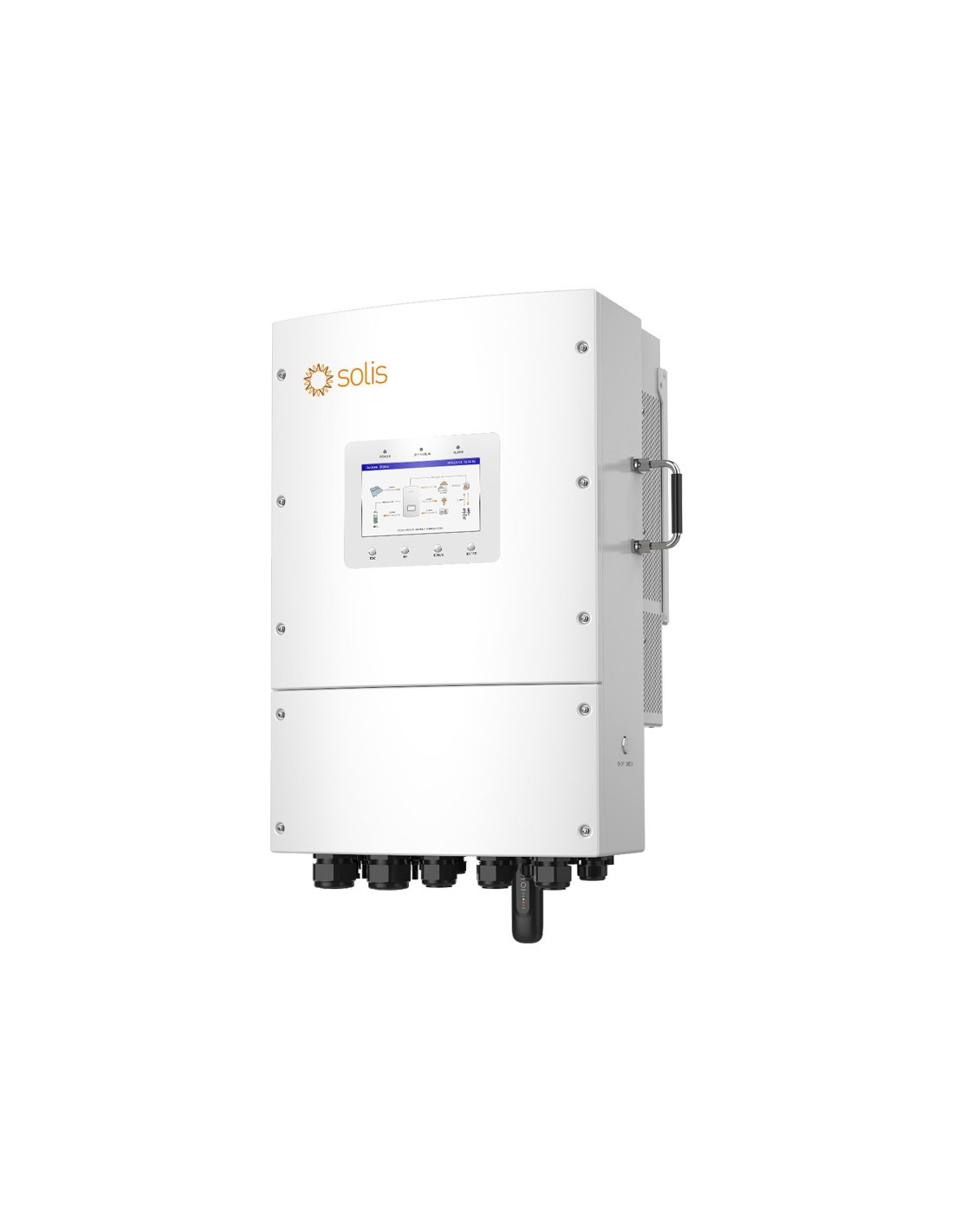

Three Phase low voltage hybrid Inverter 8kW Solis S6 2 MPPT Photovoltaic

€1,985.06

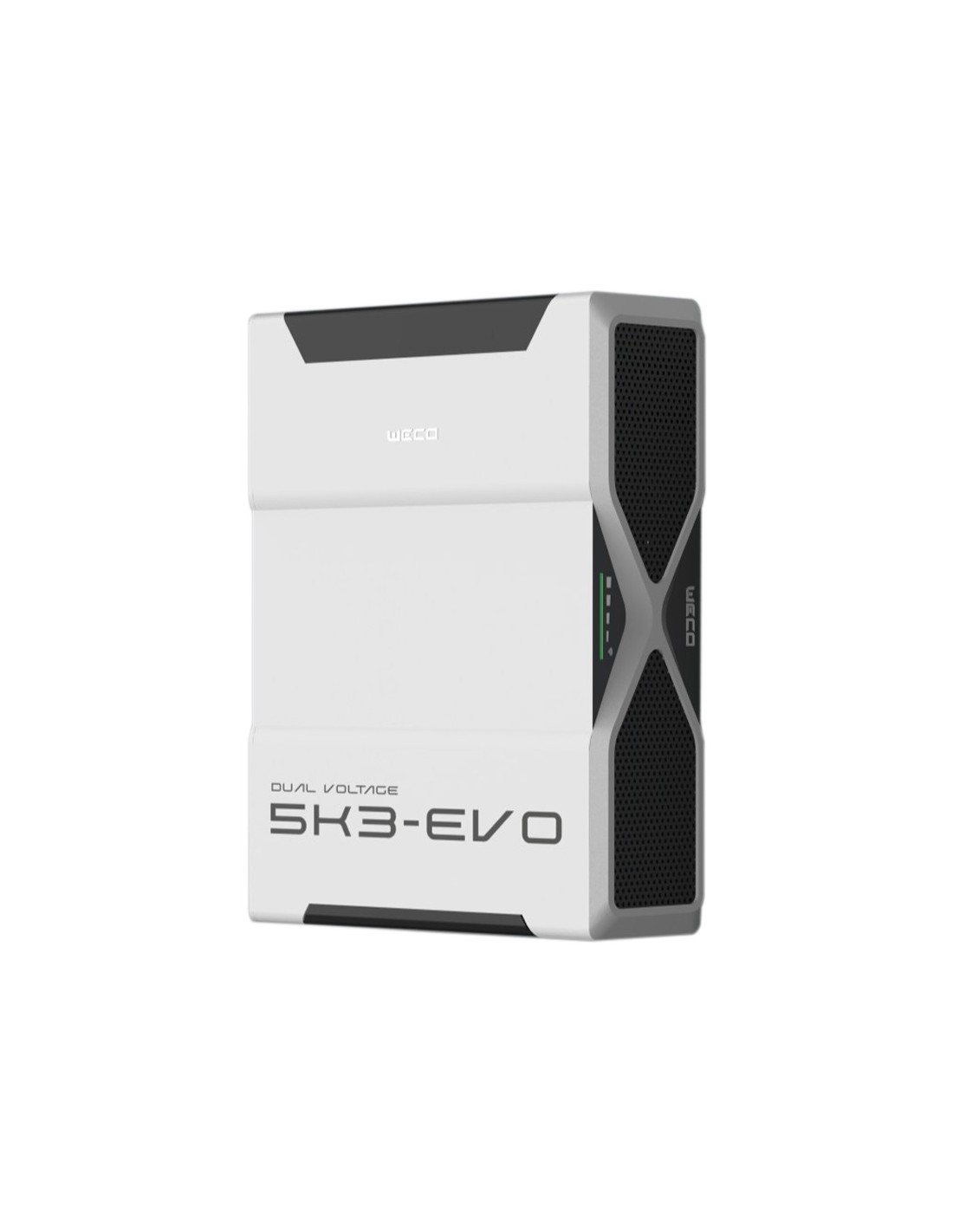

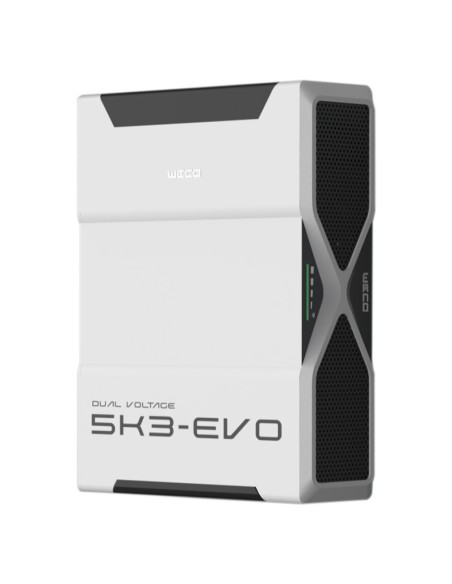

Weco 5K3 EVO Dual Voltage 5.22kWh lithium battery photovoltaic storage

€1,237.50

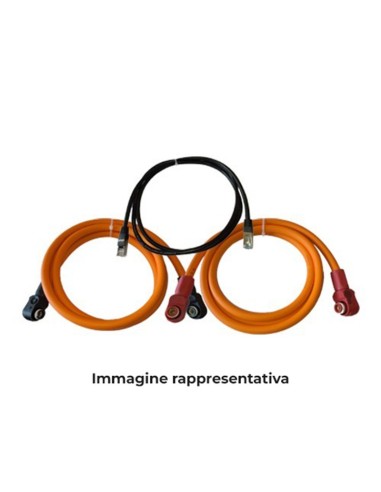

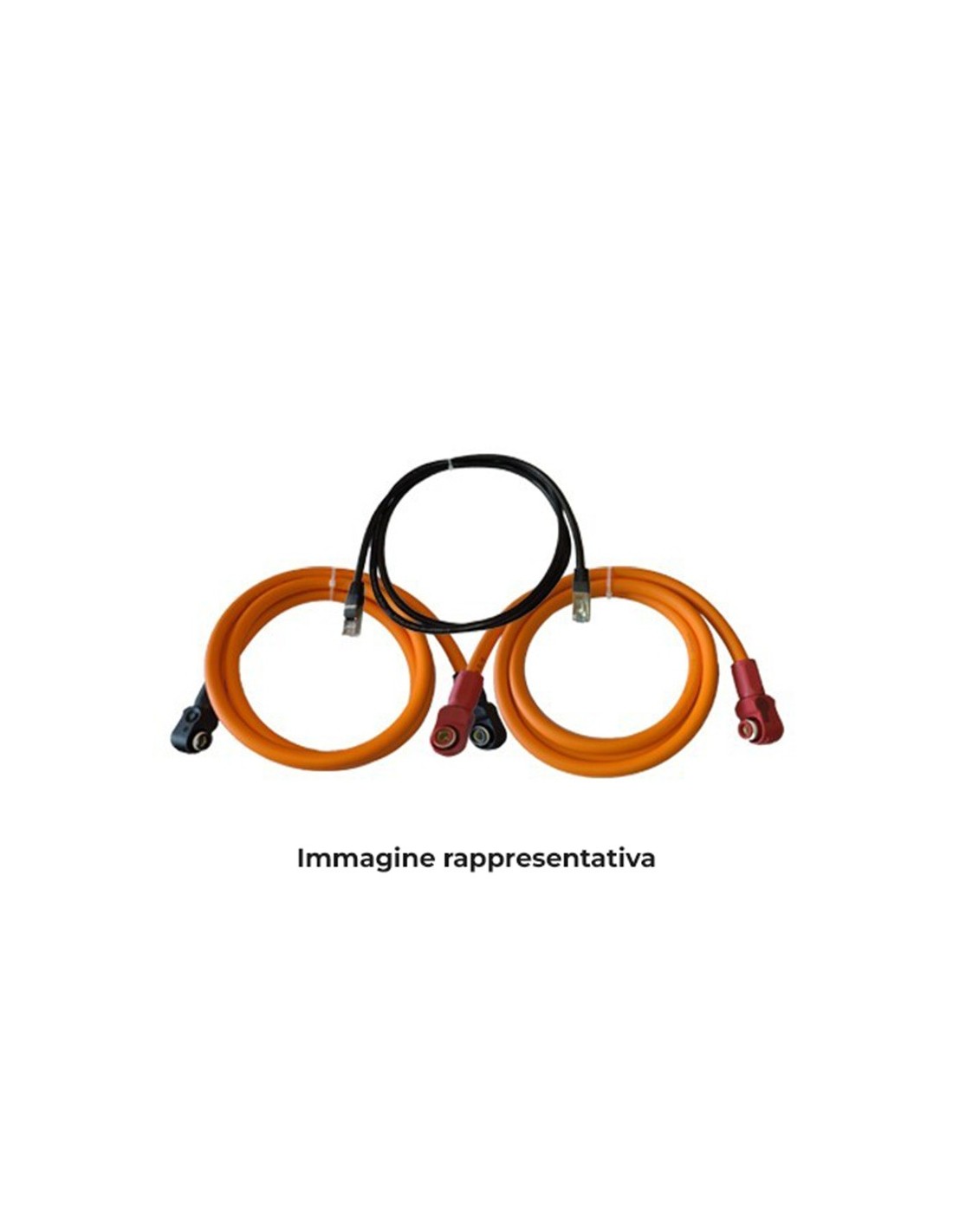

Connection kit between Weco 5k3 EVO batteries and between battery and inverter

€88.00

Three-phase storage system Solis 8kW LV inverter 26.1kWh lithium battery Weco 5k3 EVO

With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to the power supply of the loads and the storage of energy in the WECO lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

COMPONENTS OF THE KIT


1	Inverter Hybrid	Inverter Hybrid Three phase 8.0kW Photovoltaic System with Lithium storage	Download

5	Lithium Battery	Lithium Battery 5.22kWh Weco 5k3 EVO	Download

5	Connection kit	Connection kit between Weco 5k3 EVO batteries and between battery and inverter

Main features of the inverter:

Supports PV input up to 160% of the inverter’s rated DC power, maximizing solar energy utilization;
Supports PV input current up to 21 A, compatible with future higher-power PV modules;
200% overload for 10 seconds in off-grid mode, ensuring stable start-up of motors, water pumps, and air conditioners;
Seamless on/off-grid switching in less than 10 ms, ensuring an uninterrupted power supply;
Supports unbalanced three-phase output, with each phase supporting a maximum output of 50% of the inverter’s rated power;
Supports both DC and AC coupling, facilitating PV expansion, battery charging, and load power supply in a reliable manner, even under off-grid conditions;
Multiple generator connection methods and automatic control enable flexible local deployment; supports up to 6 units in parallel, expanding system capacity;
Intelligent load management with priority assignment, extending backup time for critical loads;
Customizable battery backup level for uninterrupted power supply;
Supports PV-only off-grid operation, reducing initial costs;
AI-based and VPP compatible: maximizes savings and unlocks additional revenue;
7-inch industrial-grade touchscreen, providing a larger and more intuitive interface for local operation;
IP66 protection, for operation in harsh environments.

Main features Battery:

The state-of-the-art heating system keeps the battery cells above minimum temperatures, ensuring constant performance even in persistently cold conditions.
Each module is equipped with a sophisticated fire suppression system, offering unparalleled safety and peace of mind.
Parallel up to 105 modules: 548kWh.
Total 8 clusters of 15 batteries: 626kWh
Min2 Modules + HV BOX;
Max17 Modules /1000Vdc.
Total 8 clusters of 17 batteries 710kWh.
