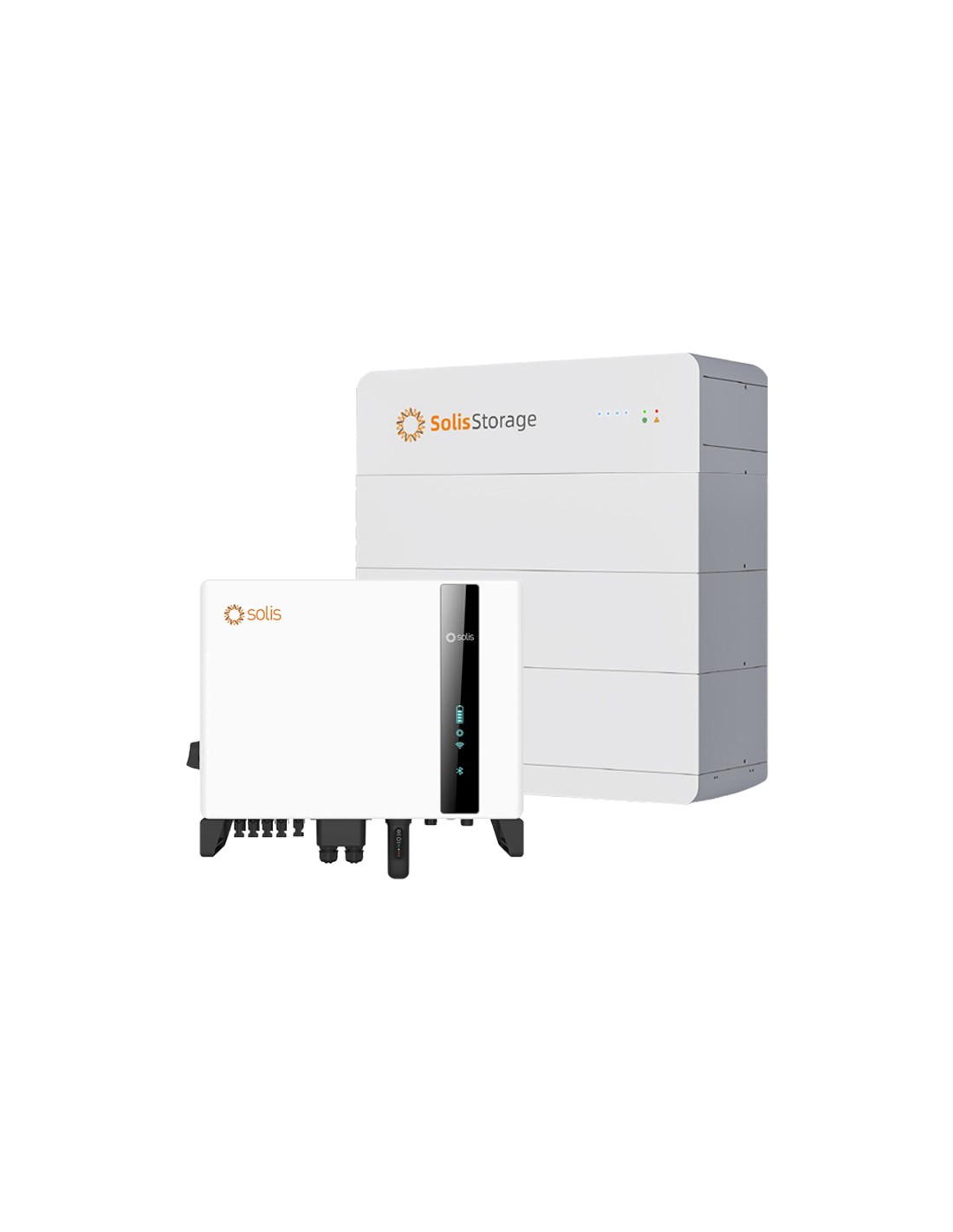

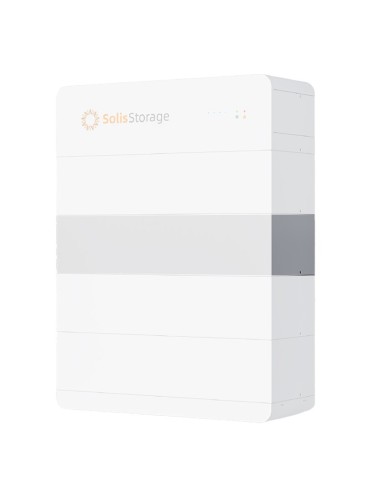

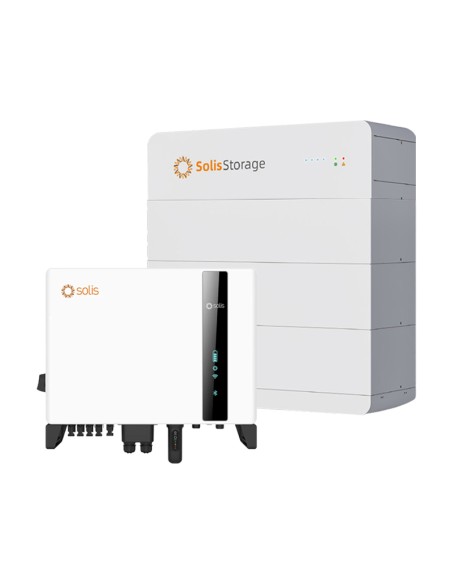

Three-phase storage system 8kW inverter Solis FlexHome 15kWh HV lithium battery
With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.
The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the SOLIS lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.
COMPONENTS OF THE KIT
|
 |
1 |
Inverter Hybrid |
Inverter Hybrid Three phase 8kW Photovoltaic System with Lithium storage |
Download |
|
 |
3 |
Lithium Battery |
Lithium Battery 5kWh Solis FlexHome |
Download |
|
|
1 |
Control Box |
Control Box for Solis FlexHome 5kWh HV Lithium Battery Module |
Download |
|

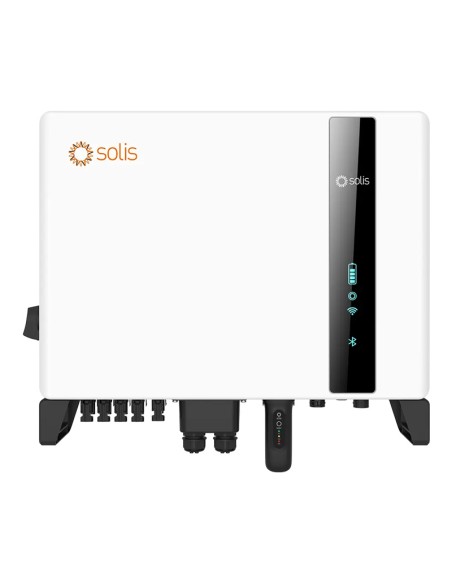

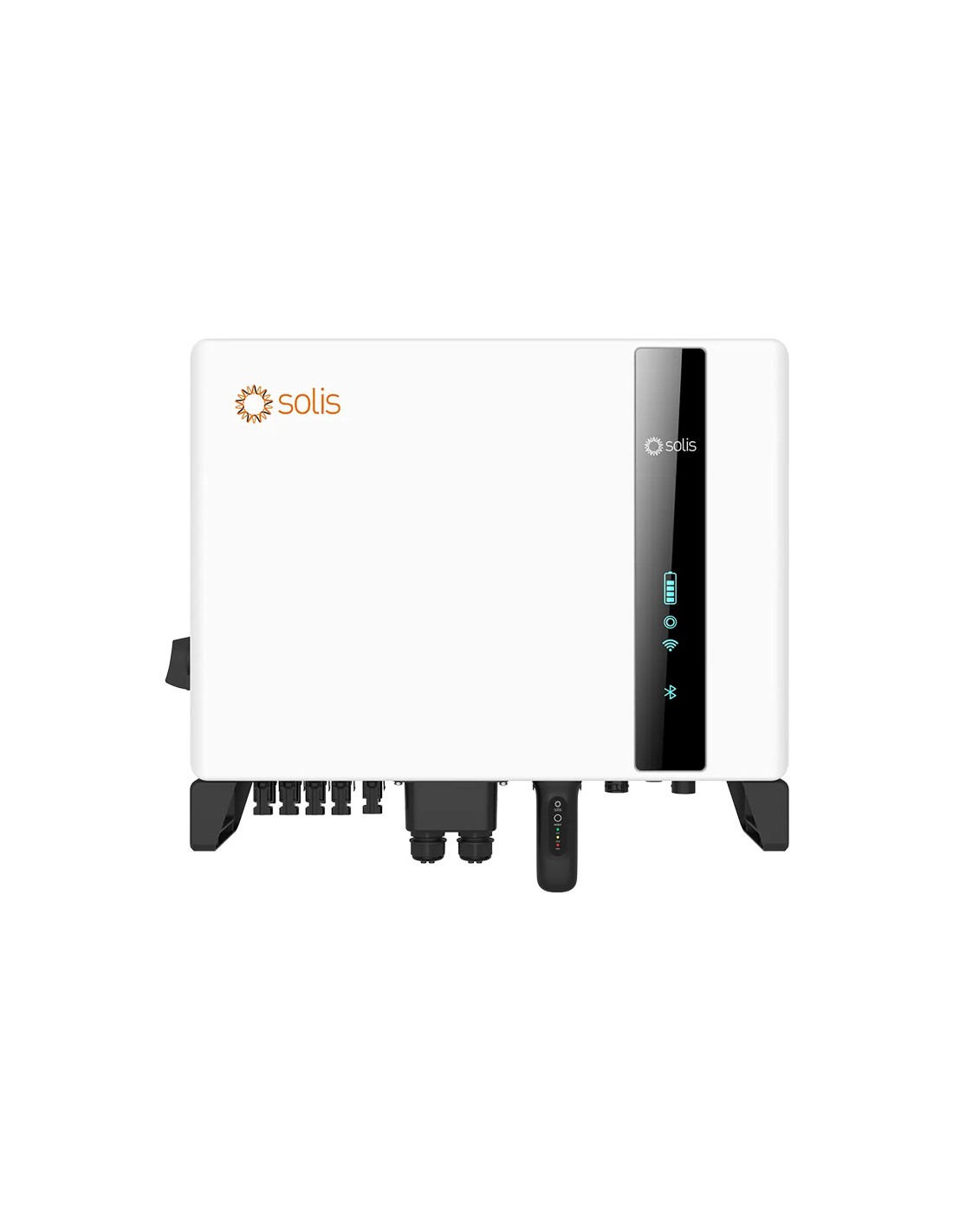

Main features of the inverter:
- Automatic UPS switching;
- Supports Peak Shaving mode;
- Built-in 3 or 4 MPPTs for multiple field orientations;
- Industry-leading 50A/10kW maximum charge/discharge power;
- Compatible with multiple lithium battery models from various brands;
- Prefabricated battery, meter and CAN wiring to reduce installation time;
- Supports unbalanced and half-wave loads on both the grid and backup ports;
- Enhanced battery protection and operating features to extend battery life.

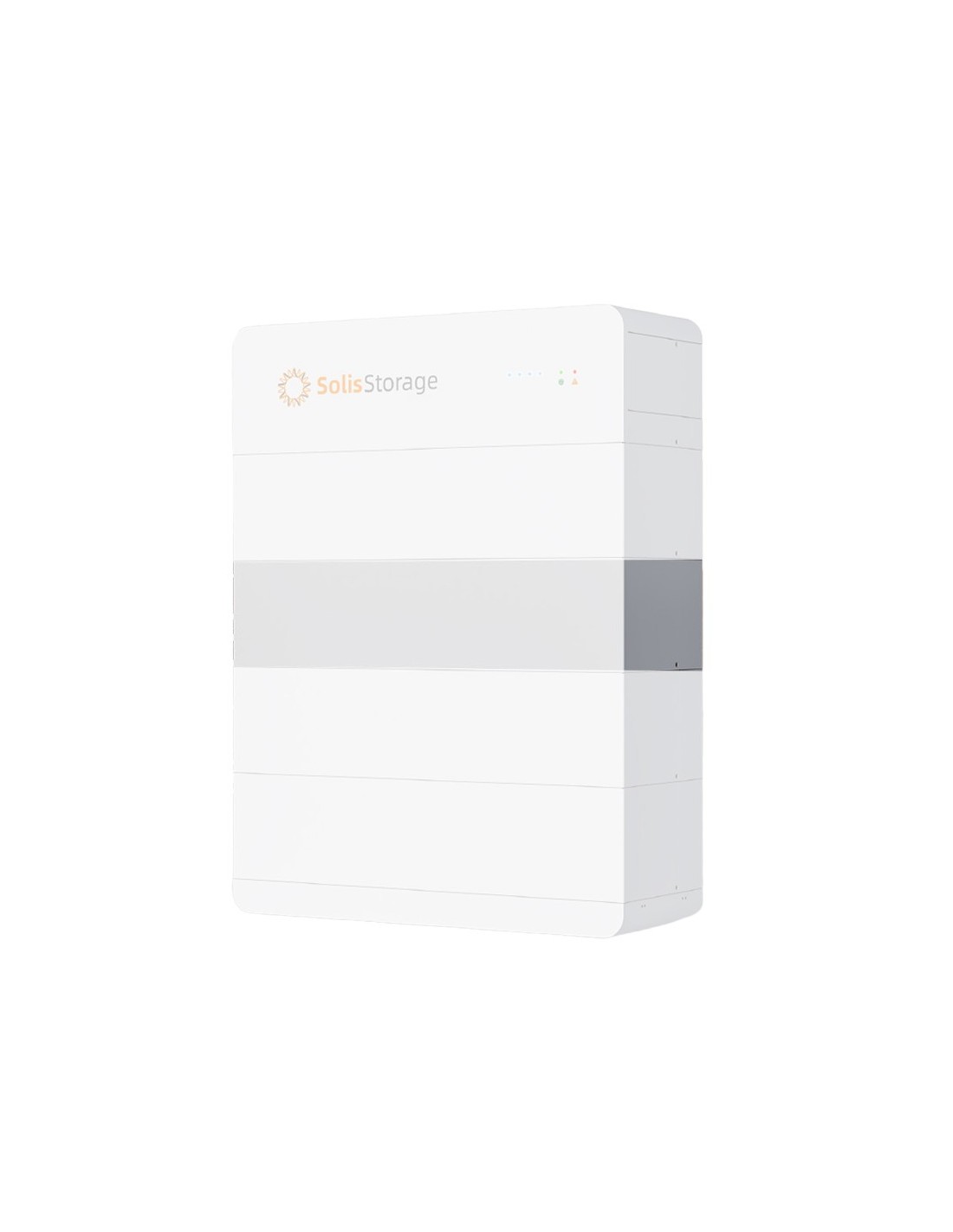

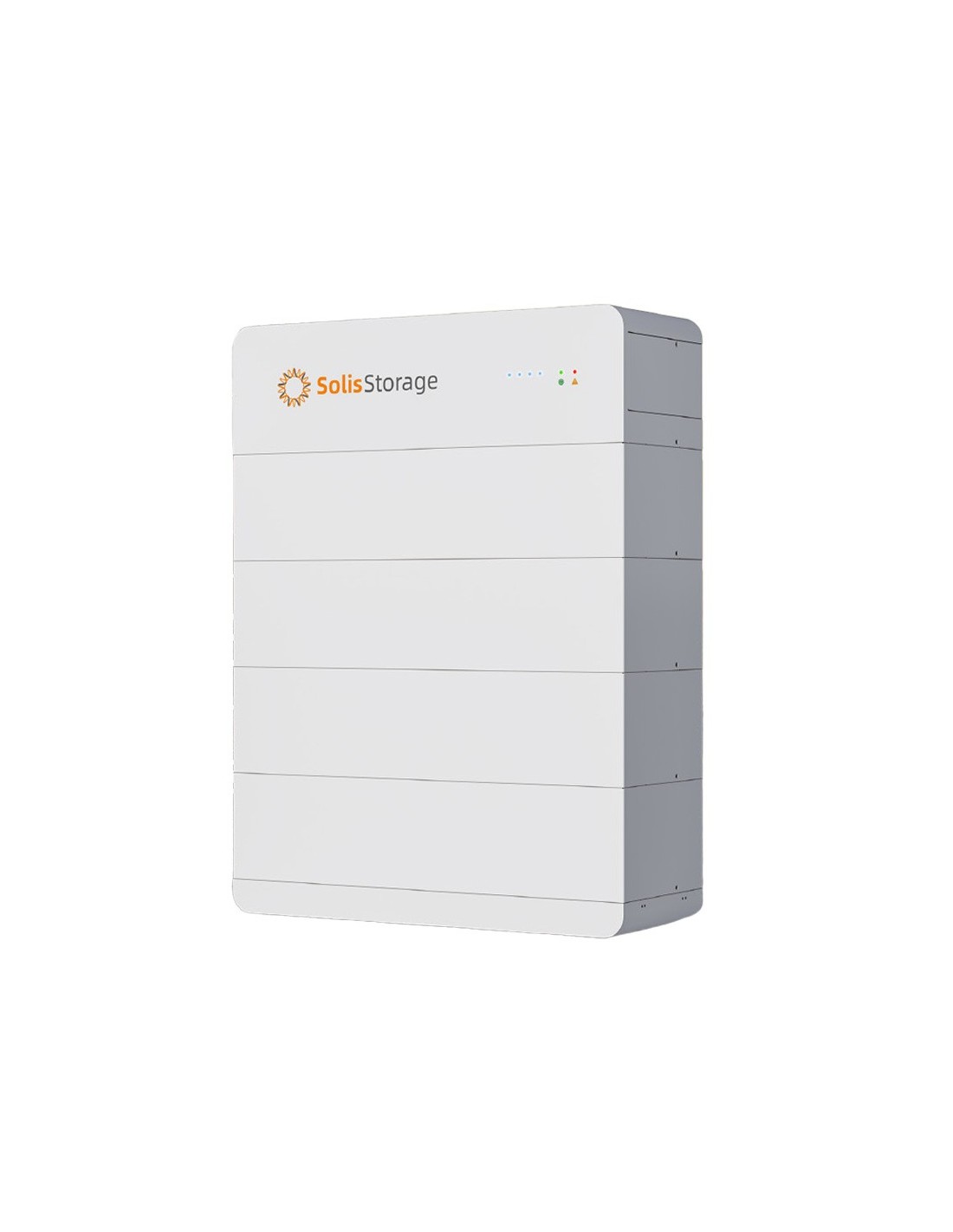

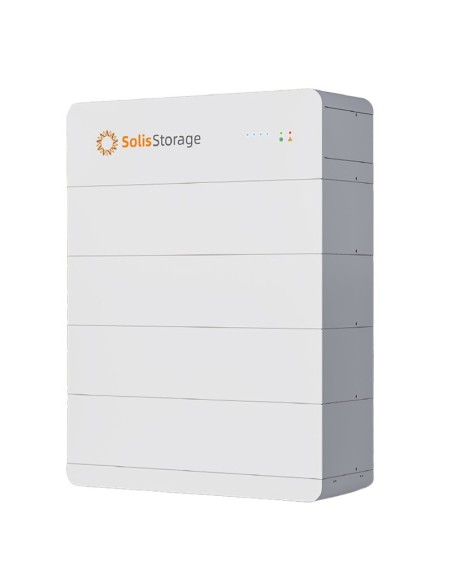

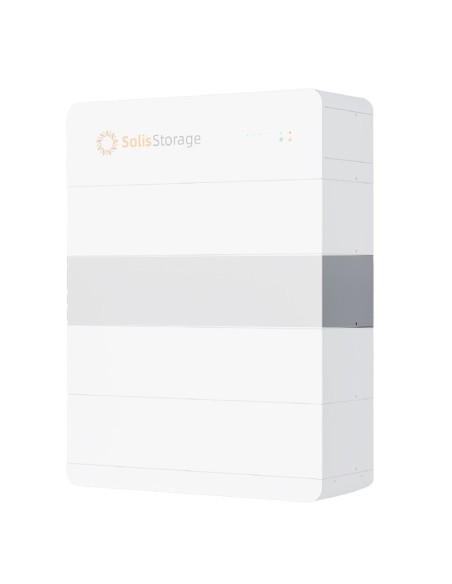

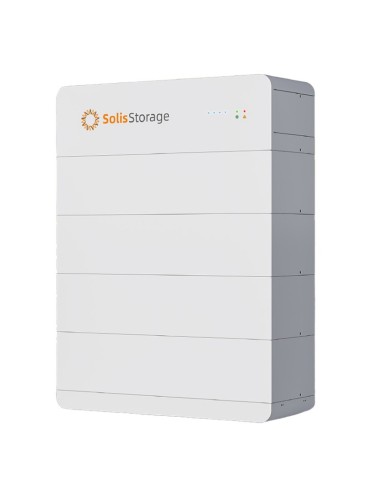

Main features Battery:
- Technology: LiFePO₄ battery (Lithium Iron Phosphate).
- Nominal capacity: 15 kWh (3 modules of 5 kWh).
- Operating voltage: 134.4–172.8 V.
- Cell capacity: 100 Ah.
- Recommended charge/discharge current: 50 A (maximum continuous 50 A).
- Depth of Discharge (DoD): up to 100%.
- Lifespan: over 6,000 charge/discharge cycles (service life up to 10 years).
- Protection: IP66 rating with CAN/RS485 communication and natural cooling.
- Dimensions and weight: 800 × 860 × 285 mm, 170 kg.
- Installation: floor-mounted (default) or wall-mounted, expandable up to 4 systems in parallel (160 kWh total).
