Three-Phase Storage System 10kW Inverter 16kWh Solis IntelliHome-16 LV Lithium Battery
KSA-10EH3P-K02-SOLIS-INTELLIHOME-16-16
Last items in stock
€4,649.81
VAT included
10 %
€4,227.10 Vat excl.
Storage system with Solis inverter for grid connection with storage in Solis Lithium battery.
NOTE: THIS SYSTEM CAN BE USED WITH UP TO 8 BATTERIES.
Three-Phase Storage System 10kW Inverter 16kWh Solis IntelliHome-16 LV Lithium Battery
With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.
The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the SOLIS lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.
The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the SOLIS lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

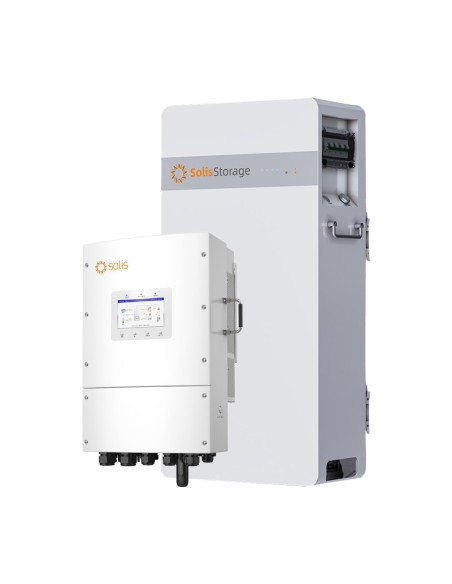

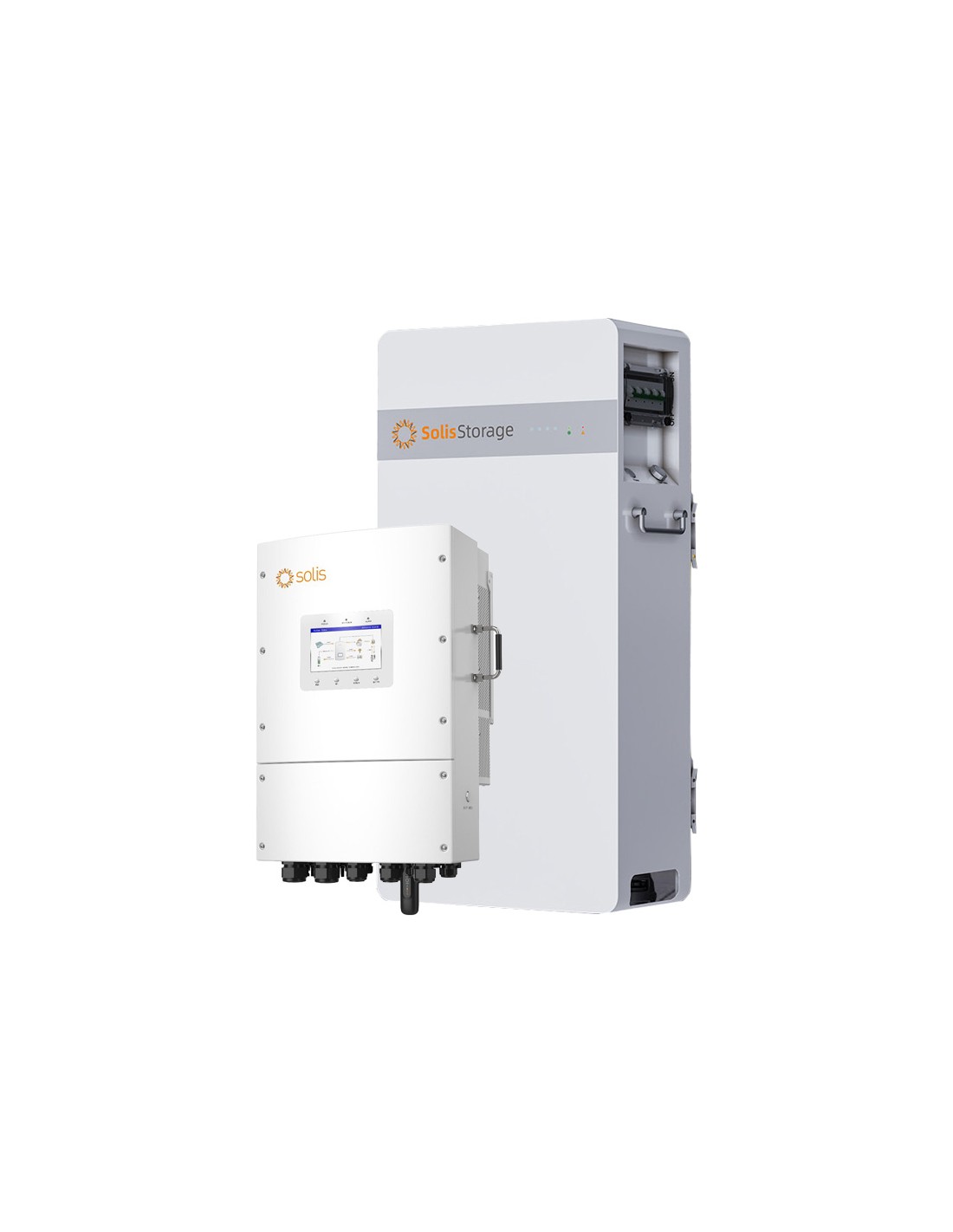

COMPONENTS OF THE KIT
 |
1 | Inverter Hybrid | Inverter Hybrid Three phase 10kW Photovoltaic System with Lithium storage | Download |
 |
1 | Lithium Battery | Lithium Battery 16kWh Solis IntelliHome | Download |

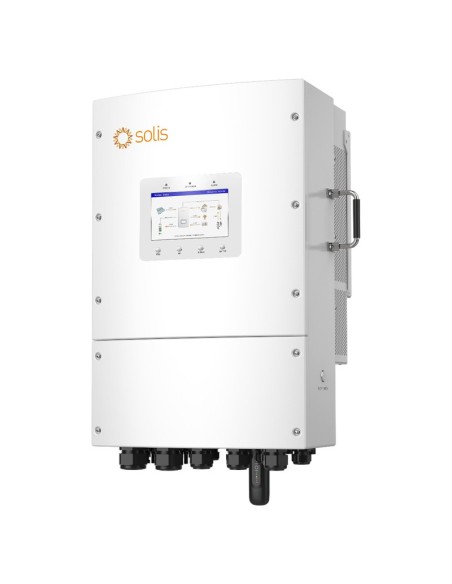

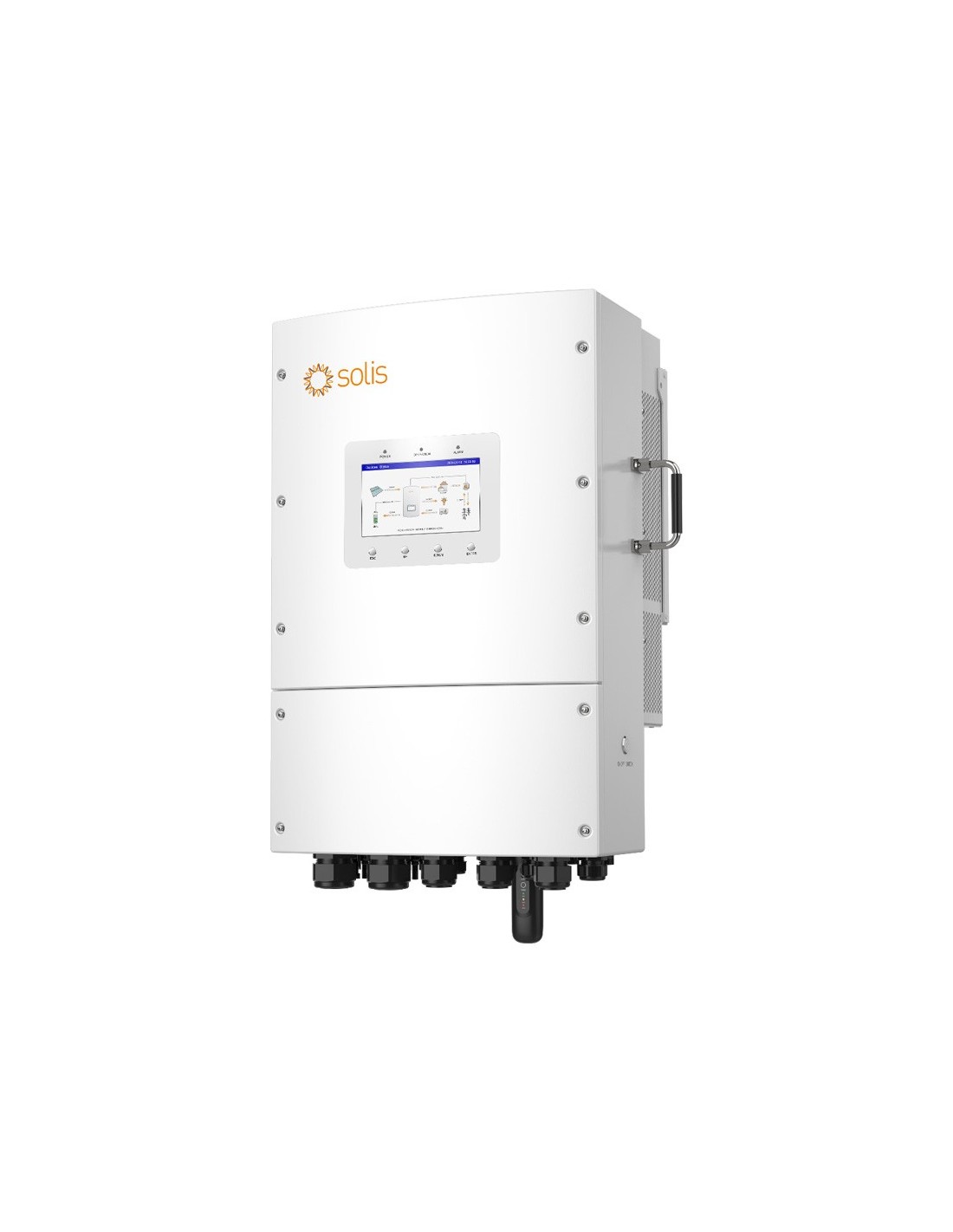

Main features of the inverter:
- Supports PV input up to 160% of the inverter’s rated DC power, maximizing solar energy utilization;
- Supports PV input current up to 21 A, compatible with future higher-power PV modules;
- 200% overload for 10 seconds in off-grid mode, ensuring stable start-up of motors, water pumps, and air conditioners;
- Seamless on/off-grid switching in less than 10 ms, ensuring an uninterrupted power supply;
- Supports unbalanced three-phase output, with each phase supporting a maximum output of 50% of the inverter’s rated power;
- Supports both DC and AC coupling, facilitating PV expansion, battery charging, and load power supply in a reliable manner, even under off-grid conditions;
- Multiple generator connection methods and automatic control enable flexible local deployment; supports up to 6 units in parallel, expanding system capacity;
- Intelligent load management with priority assignment, extending backup time for critical loads;
- Customizable battery backup level for uninterrupted power supply;
- Supports PV-only off-grid operation, reducing initial costs;
- AI-based and VPP compatible: maximizes savings and unlocks additional revenue;
- 7-inch industrial-grade touchscreen, providing a larger and more intuitive interface for local operation;
- IP66 protection, for operation in harsh environments.

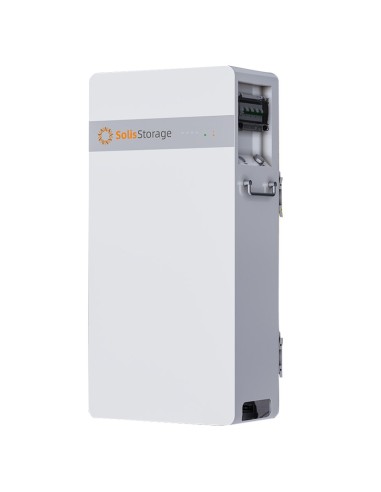

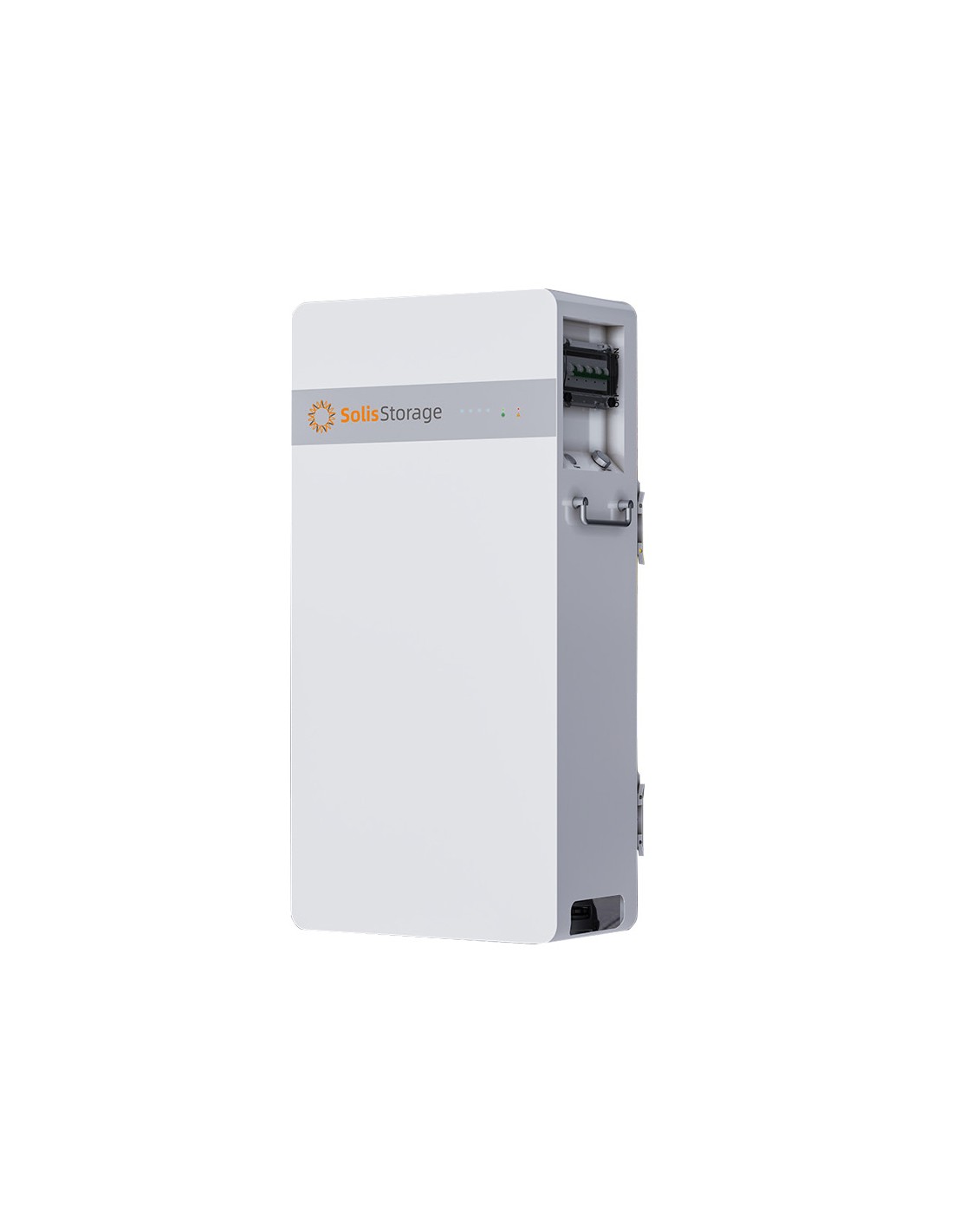

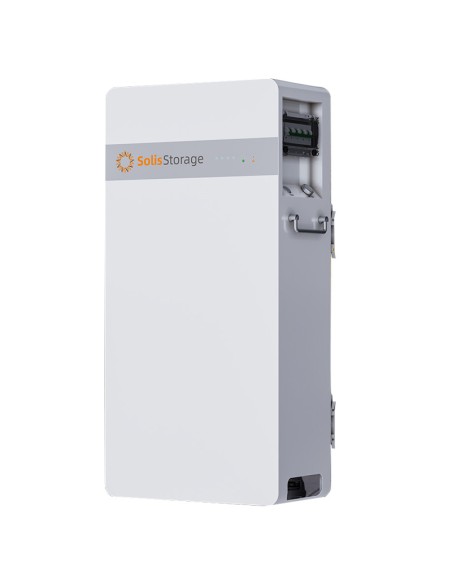

Main features Battery:
- Technology: LiFePO₄ (Lithium Iron Phosphate) battery.
- Nominal Capacity: 5 kWh.
- Operating Voltage: 44.8–57.6 V.
- Cell Capacity: 100 Ah.
- Charge/Discharge Current Recommended: 50 A (maximum 100 A).
- Depth of Discharge (DoD): Up to 100%.
- Communication: CAN/RS485 with status indicator and SOC.
- Protection Rating: IP66 with integrated overvoltage, overcurrent, and overtemperature protection.
- Dimensions and Weight: 470 × 655 × 175 mm, 47 kg.
- Installation: Floor or wall-mounted, expandable up to 8 units in parallel.
Customer Service
 |
0882 22 82 47 |
- Typology
- Three-phase
- Battery type
- Lithium
- Accumulation capacity
- 16kWh
- Inverter power
- 10kW
- Inverter series
- S6-EH3PK02-NV-YD-L
- Battery series
- IntelliHome
