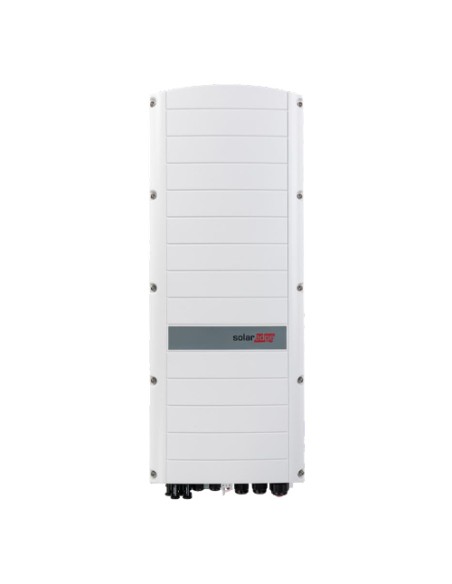

SolarEdge 8kW StorEdge three-phase hybrid inverter with SetApp configuration
SolarEdge 8kW StorEdge three-phase hybrid inverter with SetApp configuration

SolarEdge 8kW StorEdge three-phase hybrid inverter with SetApp configuration

SE8K-RWS48BEN4
€3,141.61
VAT included 10 %

€2,856.01 Vat excl.

A single inverter connects directly to one or more 48V batteries from different battery suppliers. This highly efficient inverter manages the production and consumption of photovoltaic energy and battery power for three-phase supplies.



SolarEdge 8kW StorEdge three-phase hybrid inverter with SetApp configuration


A single inverter connects directly to one or more 48V batteries from different battery suppliers. This highly efficient inverter manages the production and consumption of photovoltaic energy and battery power for three-phase supplies.
Ideal for indoor or outdoor installations, inverter models range from 5kW to 10kW.


Main features

  • Simple installation with a single inverter to manage both photovoltaic production and battery storage;
  • More energy by leveraging the DC coupled solution architecture that stores PV power directly into the battery without losses due to AC conversion;
  • Quick and easy commissioning of the inverter from a smartphone using SolarEdge SetApp;
  • Designed to eliminate high voltage during installation, maintenance or firefighting operations in order to optimize safety;
  • Embedded module-level monitoring and full visibility of battery status, PV production and self-consumption data;
  • It allows you to connect low voltage 48V batteries from different suppliers to offer greater flexibility.

For more details, download the following documents:


Technical Features

OUTPUT
Rated AC Power Output 8000VA
Maximum AC Power Output 8000VA
AC Output Voltage (Nominal) 380/220; 400/230 VCA
AC Output Voltage Range 184-264,5 VCA
AC Frequency (Nominal) 50/60 ± 5% Hz
Maximum continuous output current (per phase) 13A
INPUT PV
Maximum DC Power 10800W
Transformer-less, Ungrounded Yes
Maximum Input Voltage 900 VCC
Nominal DC Input Voltage 750 VCC
Maximum Input Current 13.5 ACC
European maximum efficiency 97.6%
BATTERY INPUT
Compatible batteries LG Chem RESU10, SolarEdge Home BAT-05K48M0B-01
Number of batteries per inverter 1
Maximum DC power 5000W
Maximum continuous input current 130 Acc
Maximum battery discharge efficiency 96.1%
ADDITIONAL FEATURES
Supported Communication Interfaces 2 x RS485, Ethernet, Zigbee communications for Smart Energy(3), Wi-Fi(4), cellular modem (optional)
STANDARD COMPLIANCE
Safety IEC-62109
Grid Connection Standards VDE 0126-1-1, VDE-AR-N-4105, G98 / G99, CEI 0-21
Emissions IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
INSTALLATION SPECIFICATIONS
AC Output - Diameter of the cable gland 15-21 mm
Battery DC Output - Diameter of the cable gland 2 x 8-11 mm
DC Input 2 x MC4
Dimensions (H x W x D) 853 x 316 x 193 mm
Weight 37kg
Protection Rating IP65 — Outdoor and Indoor



Customer service


0882 22 82 47

Rated Power VA
8000VA
Typology
Three-phase
Inverter power
8kW
Manufacturer Inverter
SolarEdge
