Charge controller 15Ah MPPT 12/24V 75Voc + Bluetooth Victron Energy

SCC010015050R-SD
€140.36
VAT included 10 %

€123.39 Vat excl.

By connecting the Smart Dongle to the charge controller can display information from your solar system as the state of the battery, the erogazine solar panel and many other useful data conveniently on your smartphone, tablet or any other iOS and Android device.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0039 (0)882 228247 or write to [email protected]

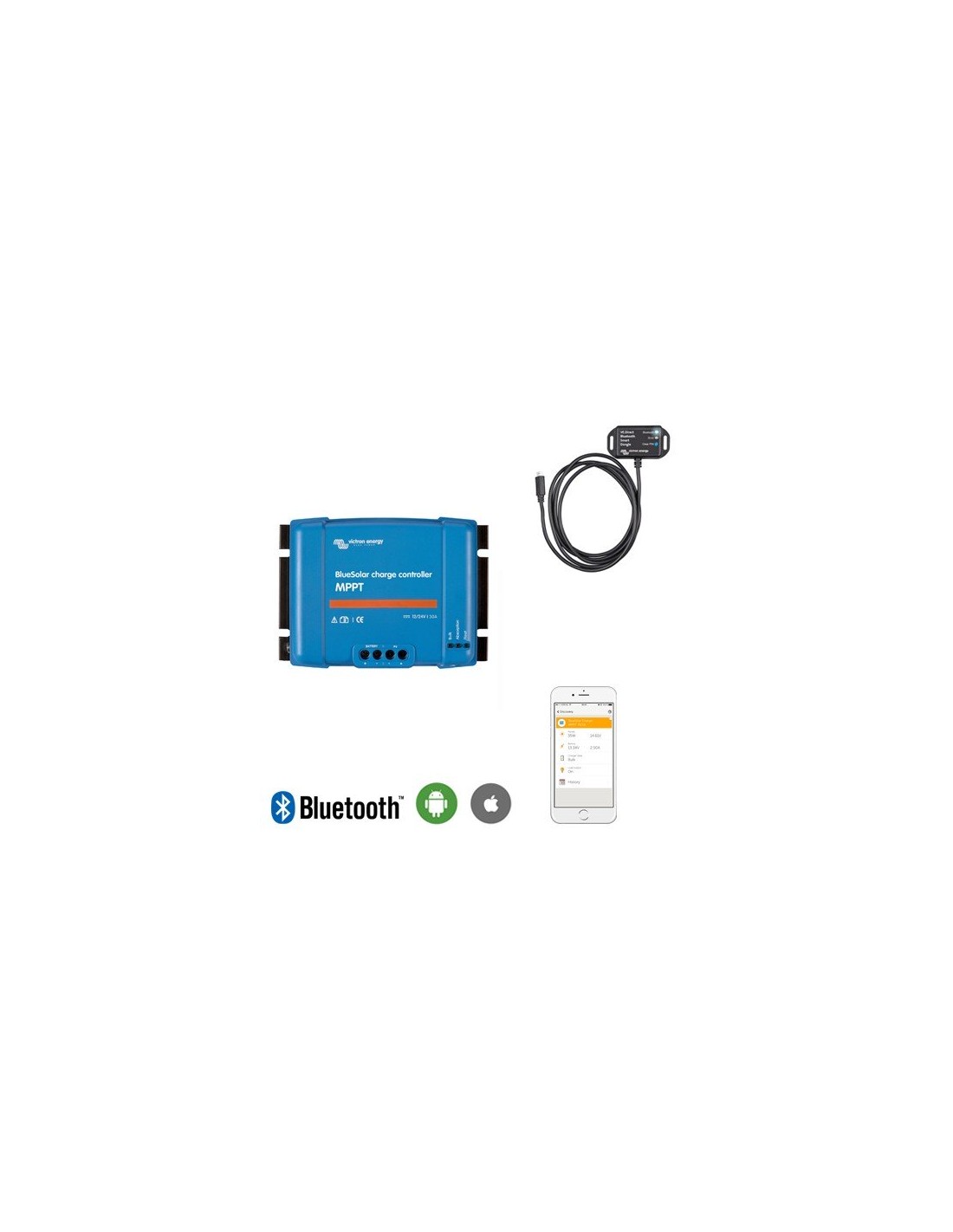

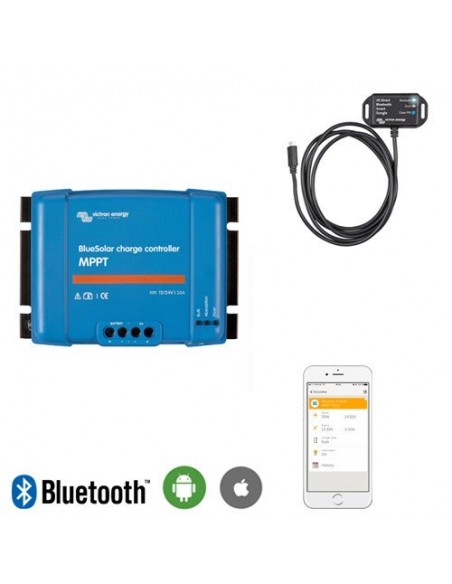

Set charge controller 15Ah MPPT 12/24V 75Voc + Control Bluetooth

By connecting the Smart Dongle to the charge controller can display information from your solar system as the state of the battery, the erogazine solar panel and many other useful data conveniently on your smartphone, tablet or any other iOS and Android device. To access this utility simply download the app on your device grauita VictronConnect





Kit components


  N. Components Product code Product description Download Datasheet

1 Charge controller SCC010015050R Charge controll Victron Energy

Modell: BlueSolar MPPT - 75/15 75VOC 15A
[Datasheet]

1 Smart Dongle ASS030536011 Controllo VE.Direct Bluetooth Smart Dongle Bluetooth [Datasheet]

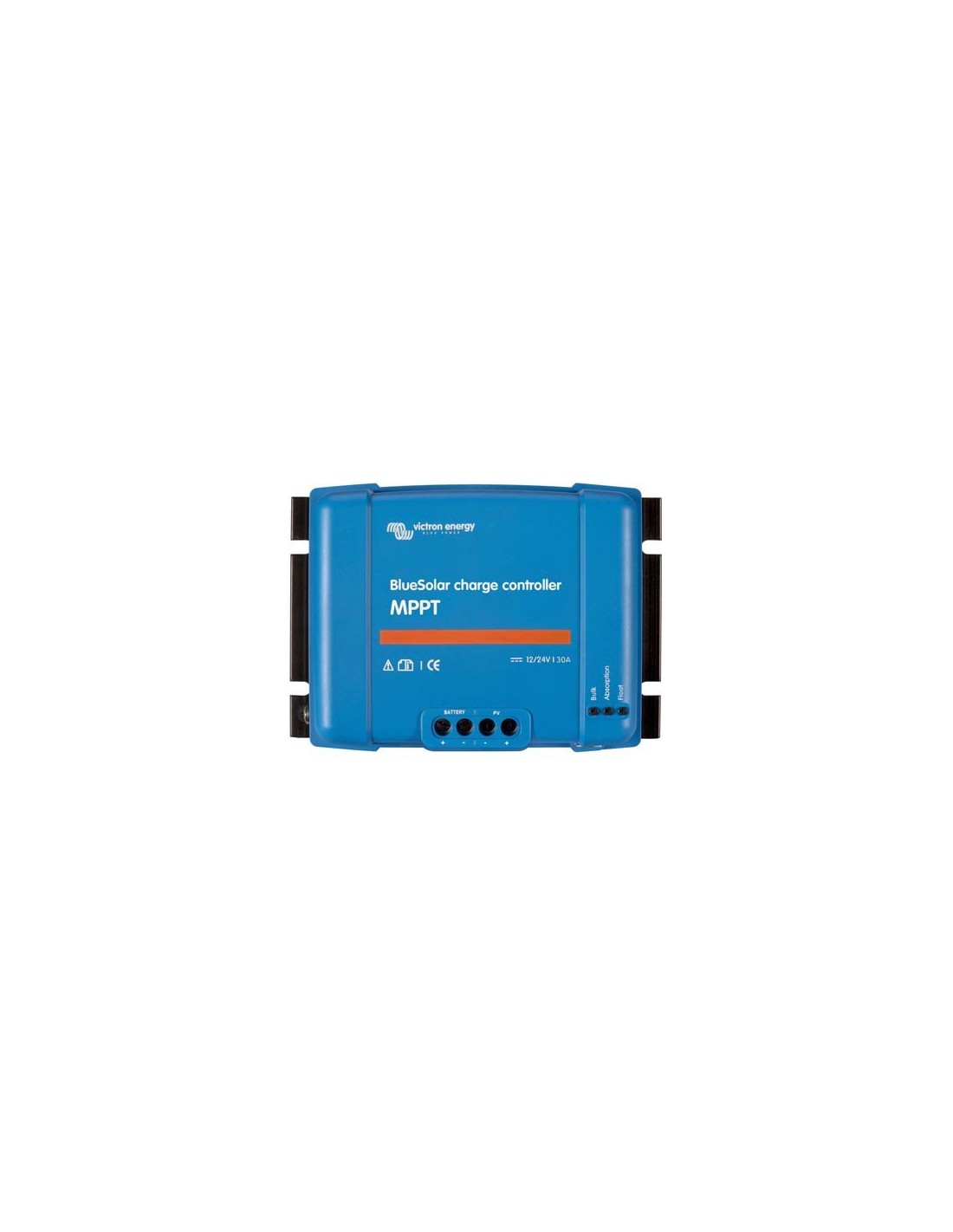

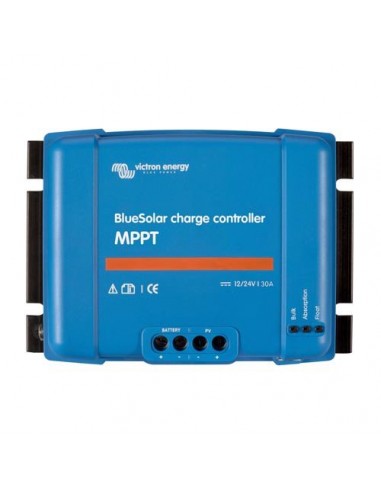

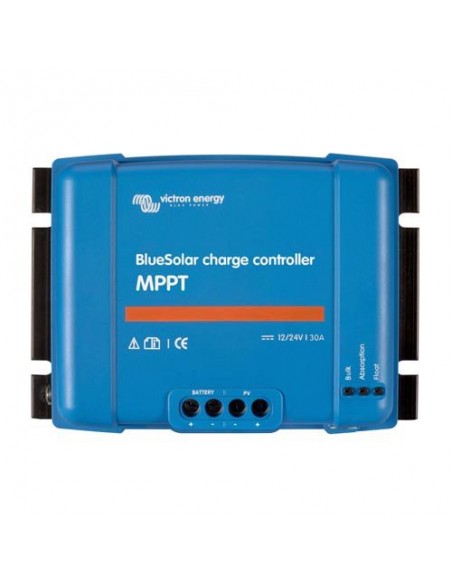

Bluesolar charge controller

The charging BlueSolar regulator, especially in case of cloudy sky, when the intensity of light is constantly changing, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and up to 10 % compared to slower MPPT controllers.

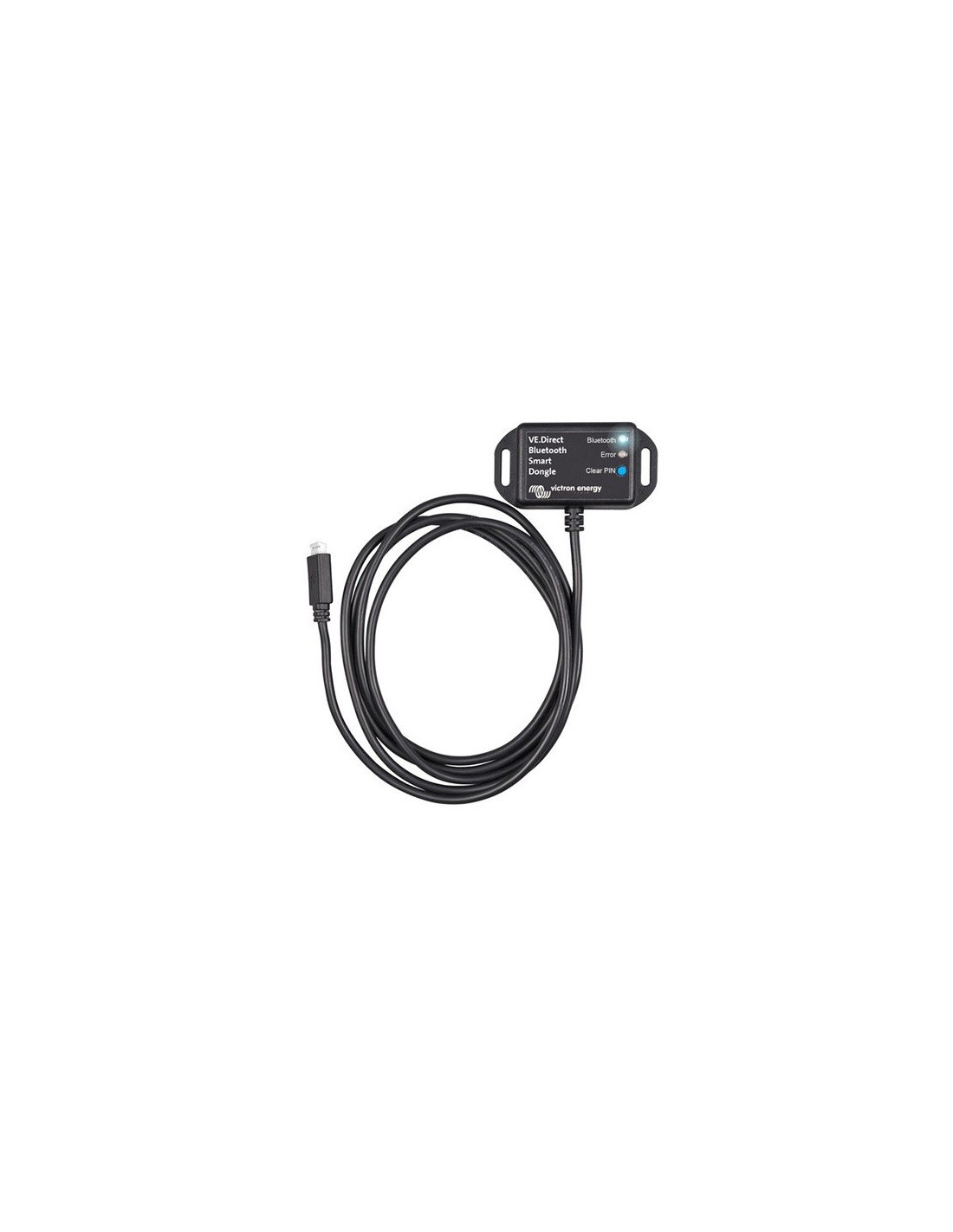

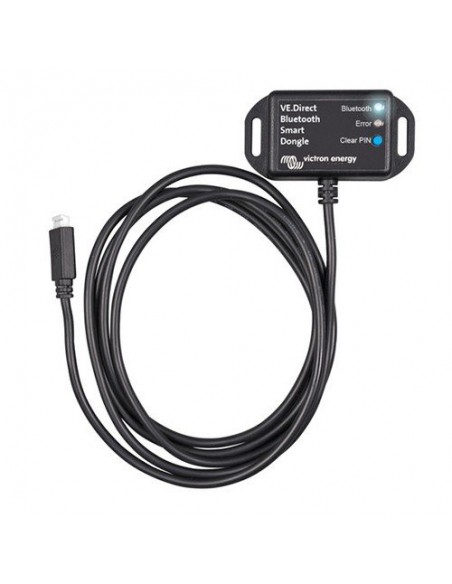

Smart Dongle

The device is able to read data from the monitor for batteries BMV-70x Series, the Inverter the Phoenix series VE.Direct through the door, the MPPT charge controller (with the exception of 150/70 and 150/85) using the port VE.Direct communication and Smart Charger Blue IP65.



   Downloads

Datasheet charge controller EN [link]
Manual Smart Dongle EN [link]
App VictronConnect [link]

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
SCC010015200R
Technology (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 VDC Auto work
Rated Battery Current
15A
Max. PV input power
12V (200W)
24V (400W)
Self-consumption
10 mA
Terminal
6 mm²
Working temperature
-30°C - +60°C
Dimensions
100x113x40 mm
Weight
0.5kg
8380000010509
