Converter Voltage DC-DC Orion 20A 240W 18-35V Galvanic Isolation Victron Energy
Converter Voltage DC-DC Orion 20A 240W 18-35V Galvanic Isolation Victron Energy

Converter Voltage DC-DC Orion-Tr 48/12 360W 30A In.40-70V Victron Energy

ORI481240110
€217.29
VAT included 10 %

€197.54 Vat excl.

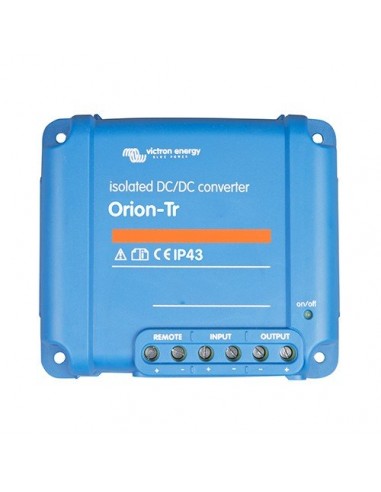

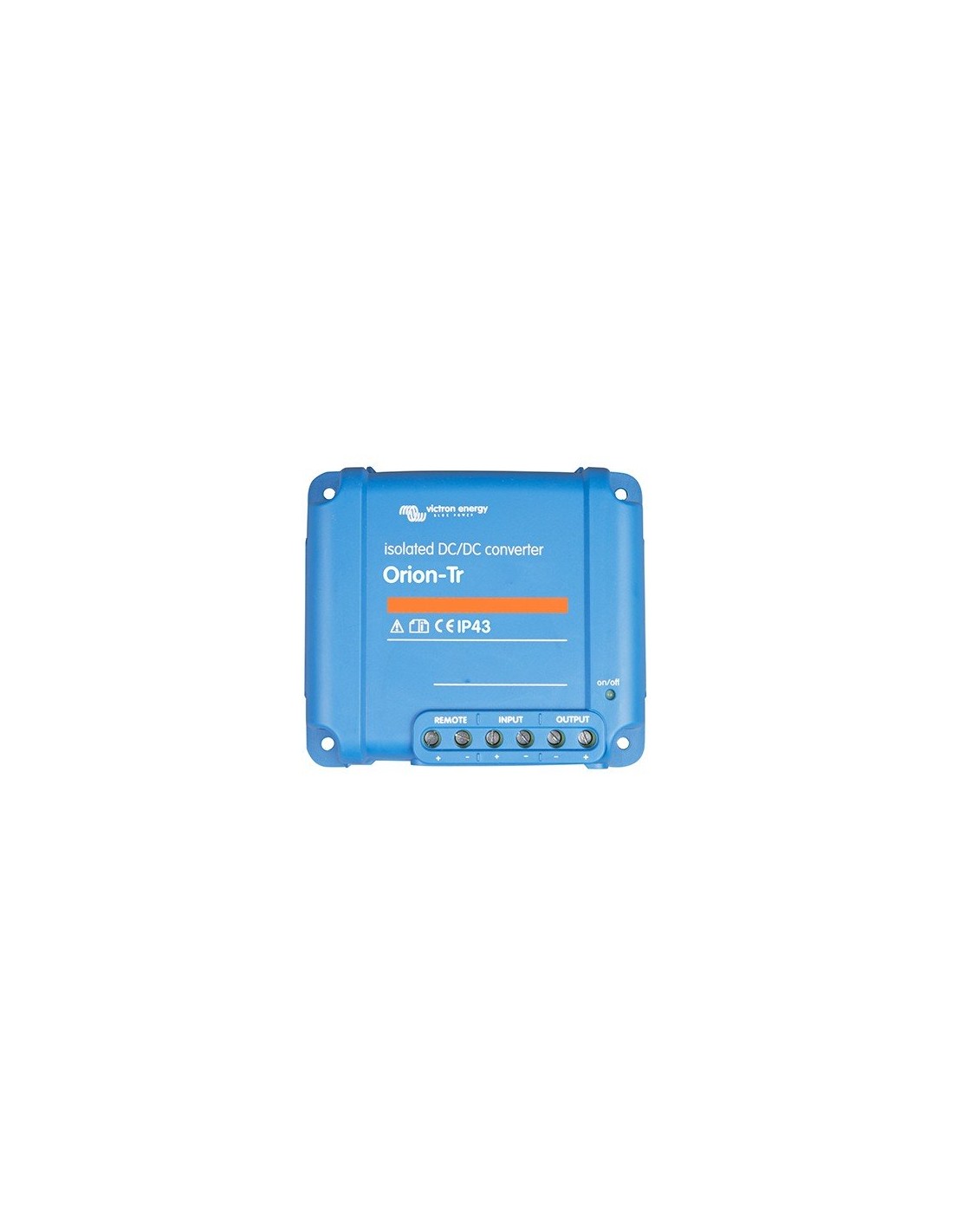

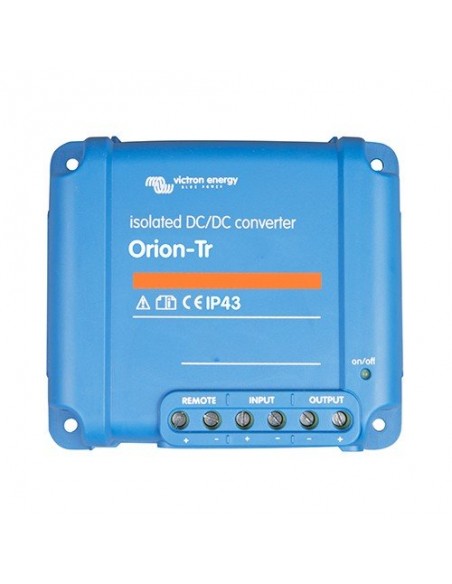

The converter Orion Tr Dc-Dc is used to convert the input voltage 40-70V in 12.2V Adjustable output for a maximum output of 30A(360W).



Converter Voltage DC-DC Orion Isolation 48/12 30A 360W In. 40-70V Victron Energy

The converter Orion Tr Dc-Dc is used to convert the input voltage 40-70V in 12.2V Adjustable output for a maximum output of 30A.(360W)

Features

Code Product: ORI481240110
Download Product Datasheet

Warranty

2 Year Warranty

Assembly instructions

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards

Screw terminals
No special tools needed for installation

Input fuse (not replaceable)
On 12V and 24V input models only



Dimensions





Downloads

Datasheet EN [LINK]

For all other documents to download, please visit the web site: www.victronenergy.com

Assistance

For service or plant configuration call 0882 22 82 47
For technical assistance, write to [email protected]
Product Code
ORI481240110
8380000028733
