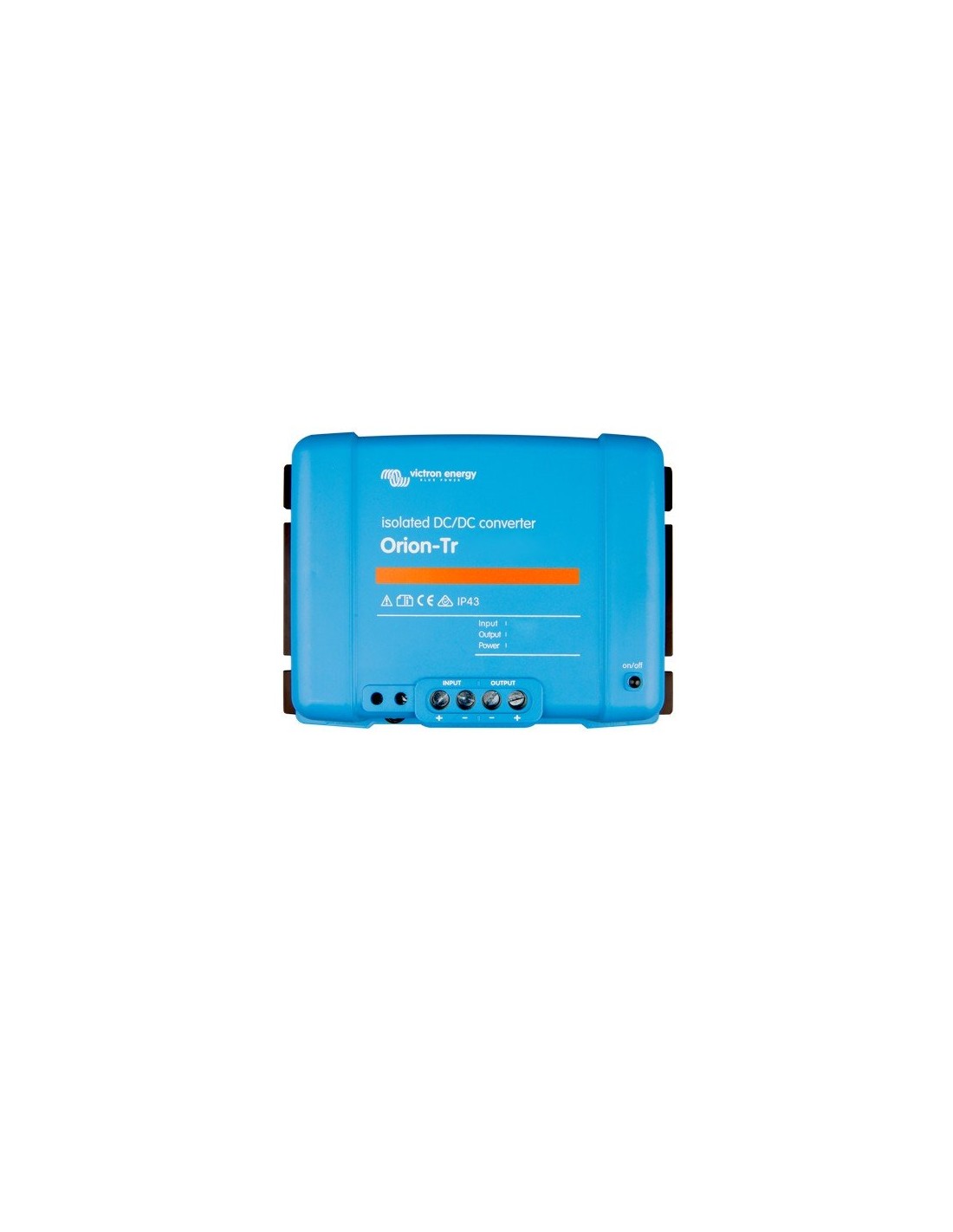

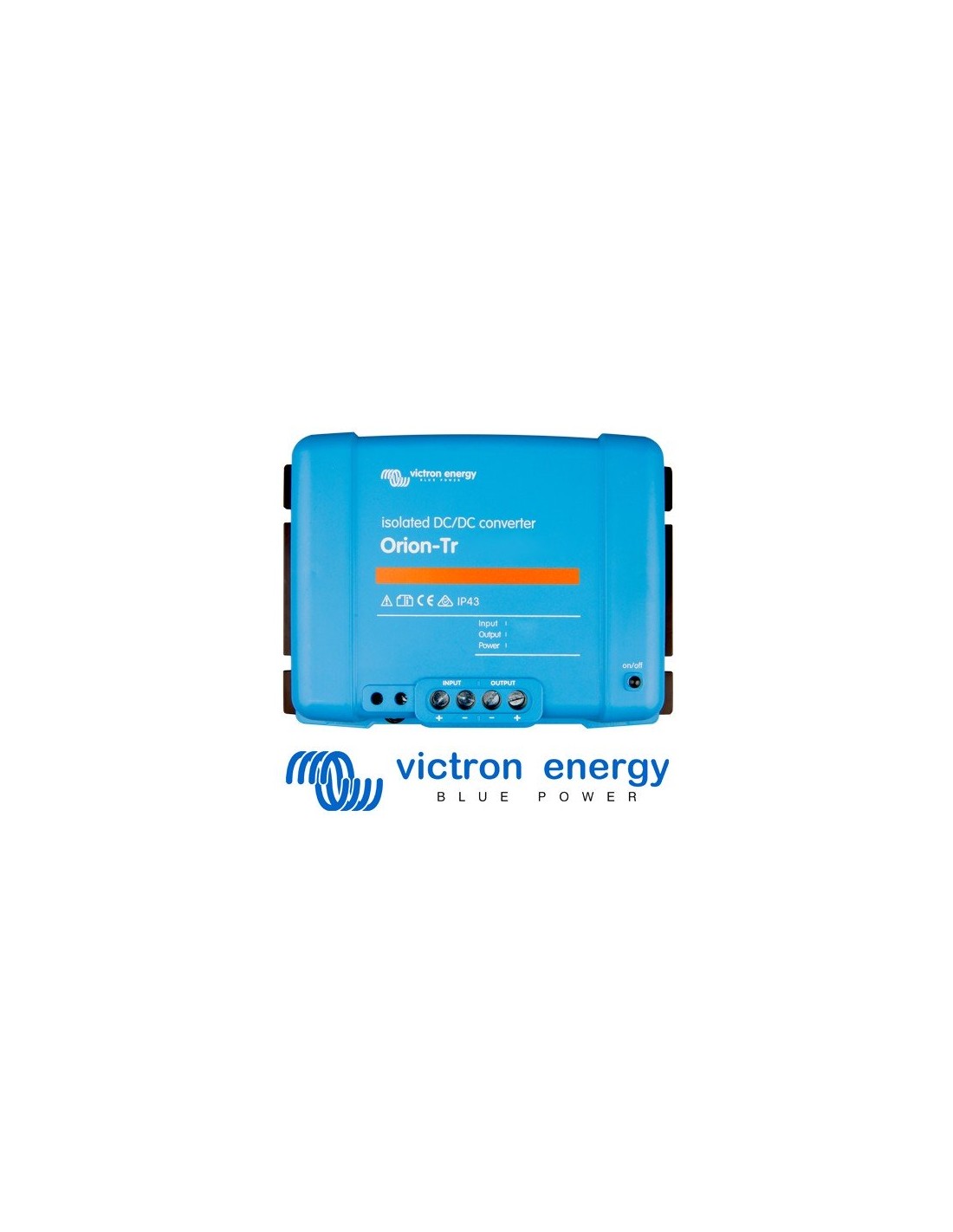

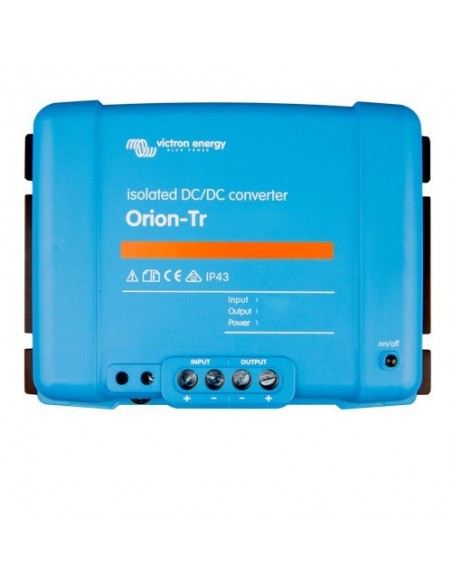

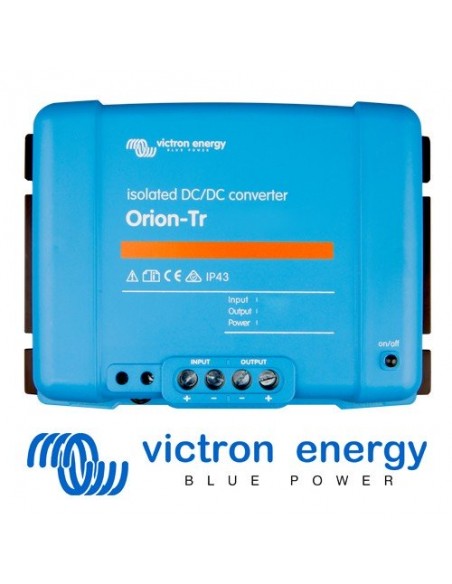

Converter Voltage DC-DC Orion-Tr 24/12 360W 30A In. 20-35V Victron Energy

ORI241240110
Last items in stock
€236.51
VAT included 10 %

€215.01 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 20-35V in 24.2V Adjustable output for a maximum output of 30A (360w).



Converter Voltage DC-DC Orion Isolation 24/12 30A 360W In. 20-35V Victron Energy

The converter Orion Tr DC-DC is used to convert the input voltage 20-35V in 24.2V Adjustable output for a maximum output of 30A.(360W)

Features

Code Product: ORI241240110
Download Product Datasheet

Warranty

2 Year Warranty

Assembly instructions

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards

Screw terminals
No special tools needed for installation

Input fuse (not replaceable)
On 12V and 24V input models only



Dimensions

   Downloads

Data Sheet EN [LINK]

For all other documents to download, please visit the web site: www.victronenergy.com

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
ORI241240110
Input voltage range (V)
20-35V
Under voltage shutdown (V)
14V
Under voltage restart (V)
15V
Output voltage (V)
12,2V
Continuous output current (A)
30A
Max. Output current (A)
45A
Dimensions (L x W x H)
130 x 186 x 80 mm
Weight
1.8Kg
8380000029945
