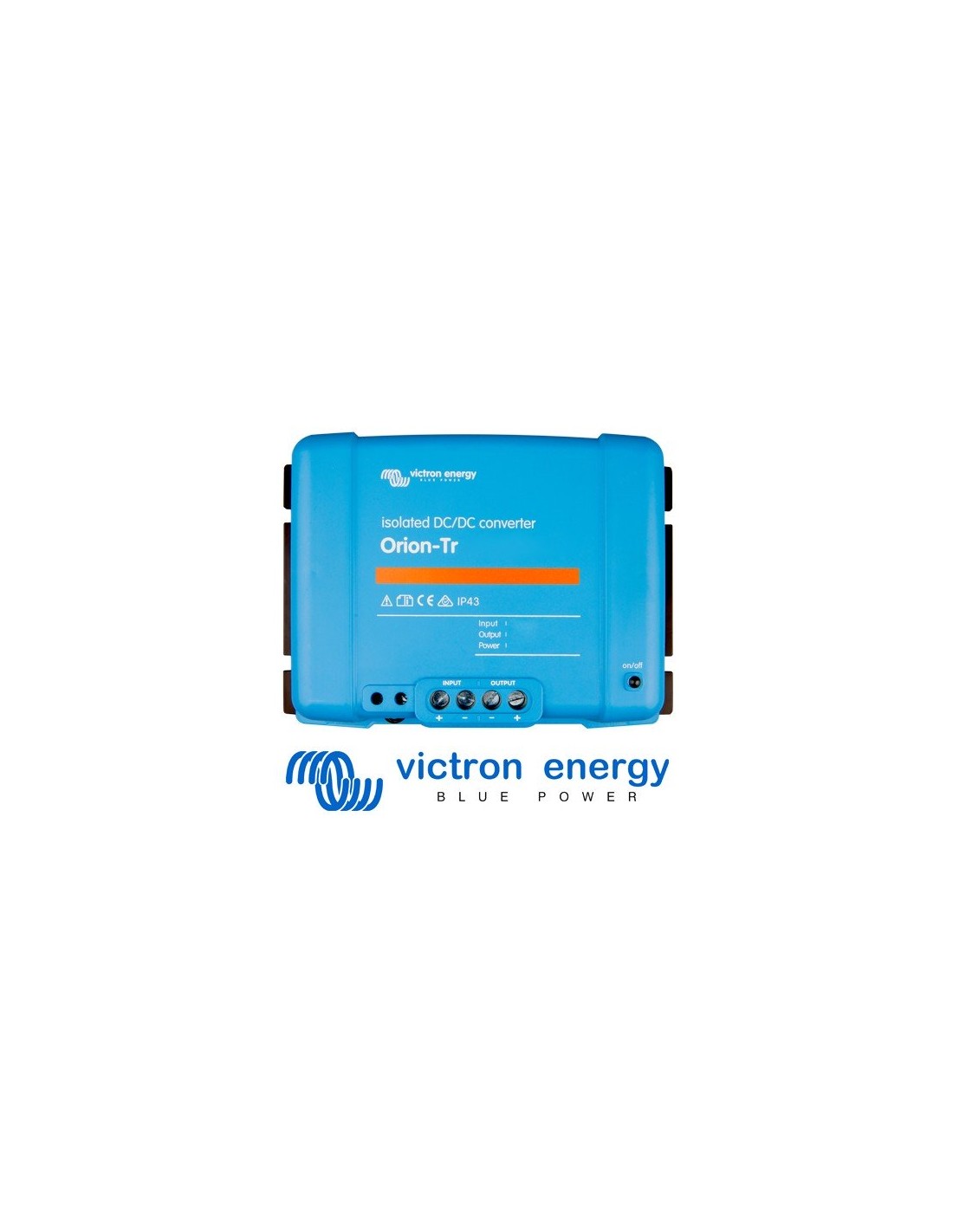

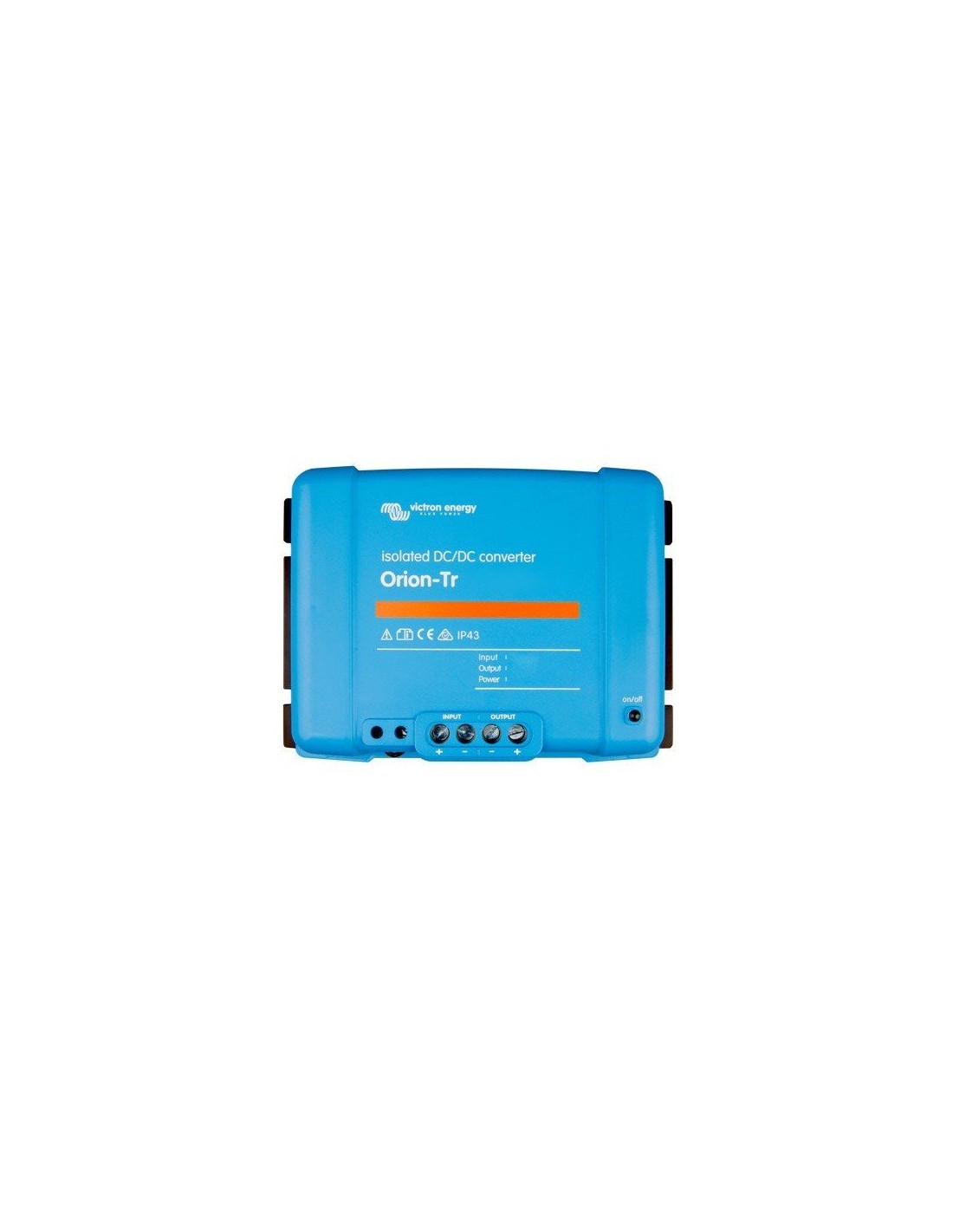

Converter Voltage DC-DC Orion-TR 12/12-18A 220W Victron Energy In.8-17V

ORI121222110
Last items in stock
€126.42
VAT included 22 %

€103.62 Vat excl.

The remote on-off eliminates the need for a high current switch in the input wiring. The remote onoff
can be operated with a low power switch or by for example the engine run/stop switch (see
manual).



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0039 (0)882 228247 or write to [email protected]

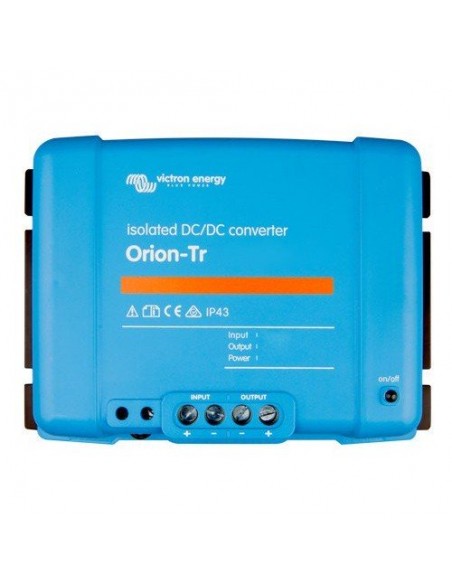

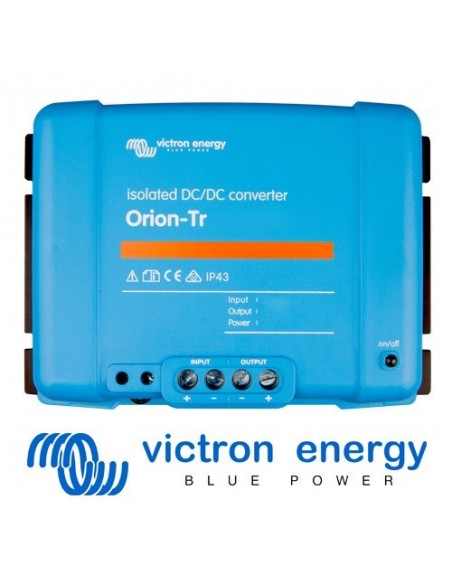

Orion-Tr DC-DC Converters 18A In. 8-17V 220W Galvanic isolation Victron Energy

Orion 12/12-18 (220W)

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote onoff
can be operated with a low power switch or by for example the engine run/stop switch (see
manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24 V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards

Screw terminals
No special tools needed for installation

Input fuse (not replaceable)
On 12V and 24V input models only





Techinical Features

  • Code Product: ORI121222110
  • Input voltage range (V): 8-17
  • Under voltage shutdown (V):7
  • Under voltage restart (V): 7.5
  • Nominal output voltage (V): 12,2
  • Continuous output current (A): 18
  • Max. Output current (A): 25
  • Galvanic isolation200V dc between input, output and case
  • Dimensions HxWxD in mm: 130x186x70


   Downloads

Datasheet Orion EN [link]
User Manual Orion [link]

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
ORI121222110
Dimensions
130x186x70 mm
Weight
1.3kg
Input voltage range (V)
8-17
Under voltage shutdown (V)
7
Under voltage restart (V)
7.5
Output voltage (V)
12.2
Continuous output current (A)
18
Max. Output current (A)
25
8380000016198
