Converter Voltage DC-DC Orion 8.5A 400W In. 20-35V Galvanic Isolation Victron

ORI244841110
€241.00
VAT included 22 %

€197.54 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 20-35V in 48.2Adjustable output for a maximum output of 8.5A.(400w)

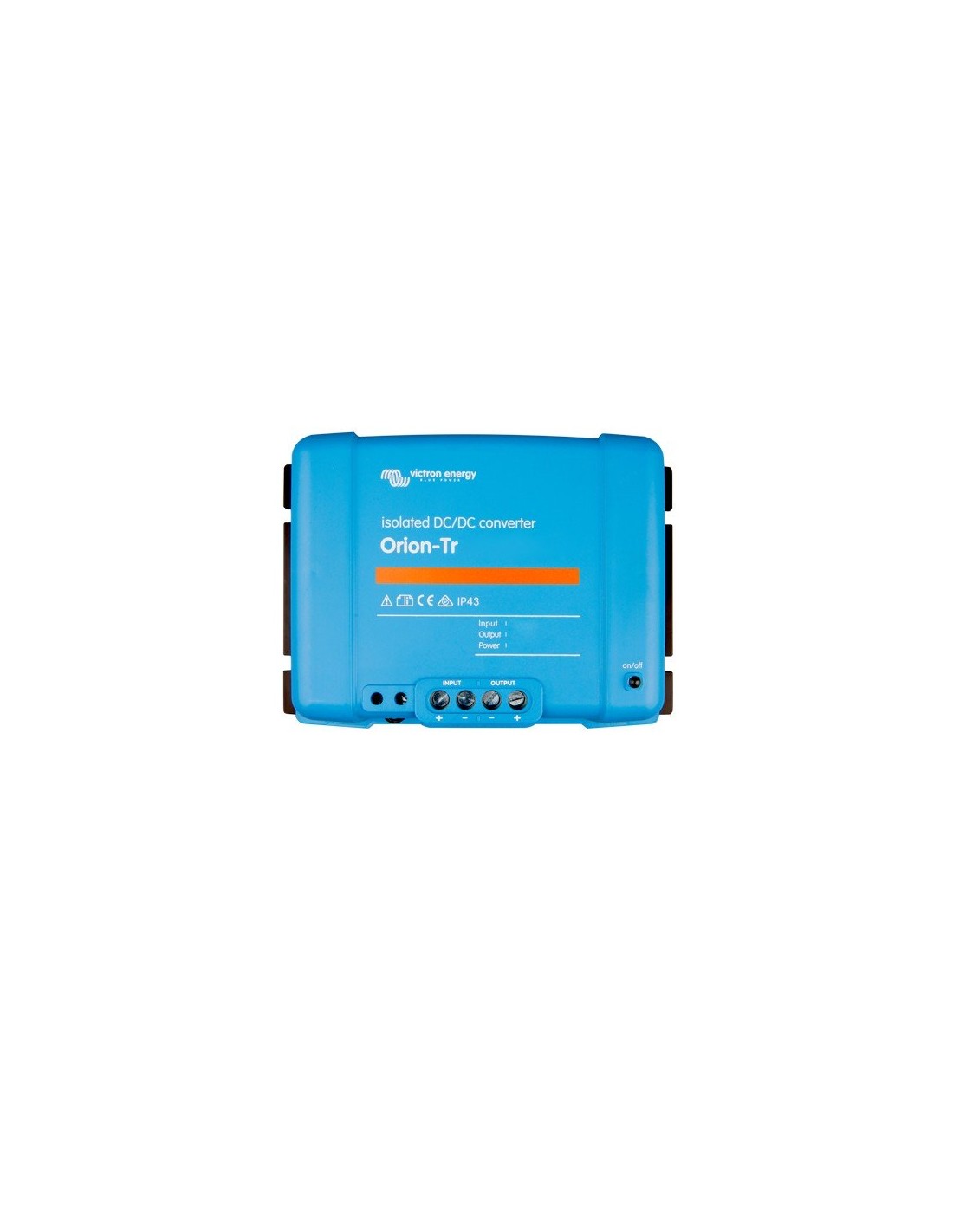

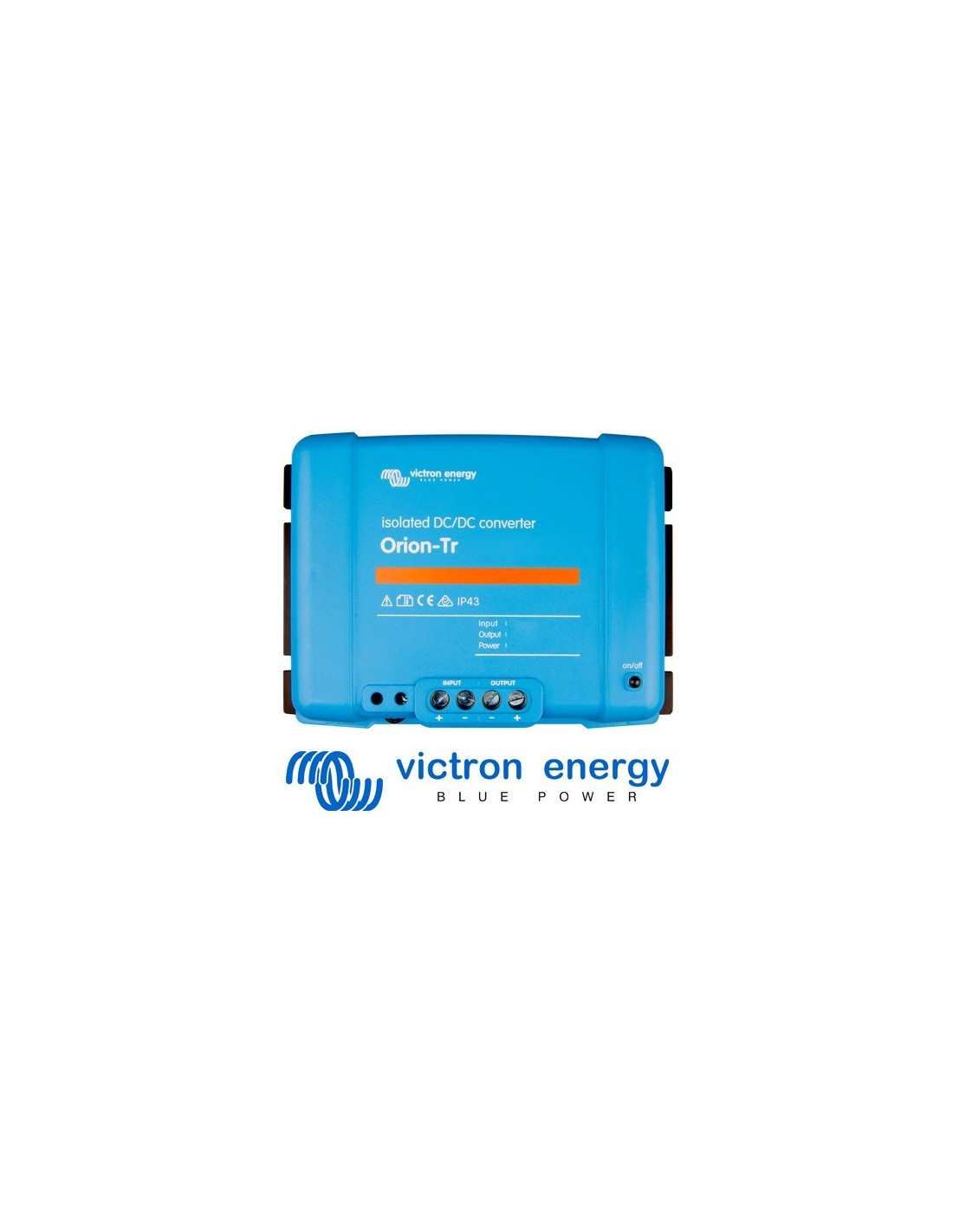

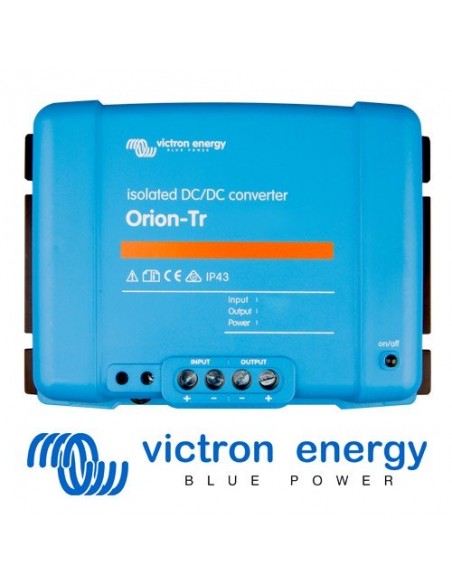

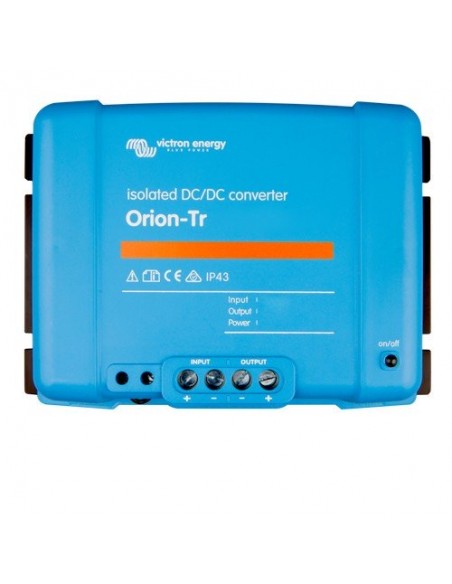

Converter Voltage DC-DC Orion 8.5A 400W In. 20-35V Galvanic Isolation Victron Energy

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)
On 12V and 24V input models only

Technical Features

Input voltage range 20-35V VDC
Stop Voltage 14V
Starting voltage 15V
Internal consumption < 120 mA
DC output 48,2V
Maximum output current 8.5A
Operating Temperature Range -20°C a 55°C
Efficiency 89%
Weight 1.6 Kg
Dimensions (h x w x d) in mm 130 x 186 x 70 mm


Dimensions

   Downloads

Datasheet EN [link]

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
ORI244841110
Dimensions
130 x 186 x 70mm
Weight
1.6Kg
Input voltage range (V)
20-35V
Under voltage shutdown (V)
14V
Under voltage restart (V)
15V
Output voltage (V)
48.2V
Continuous output current (A)
8.5A
Max. Output current (A)
15A
