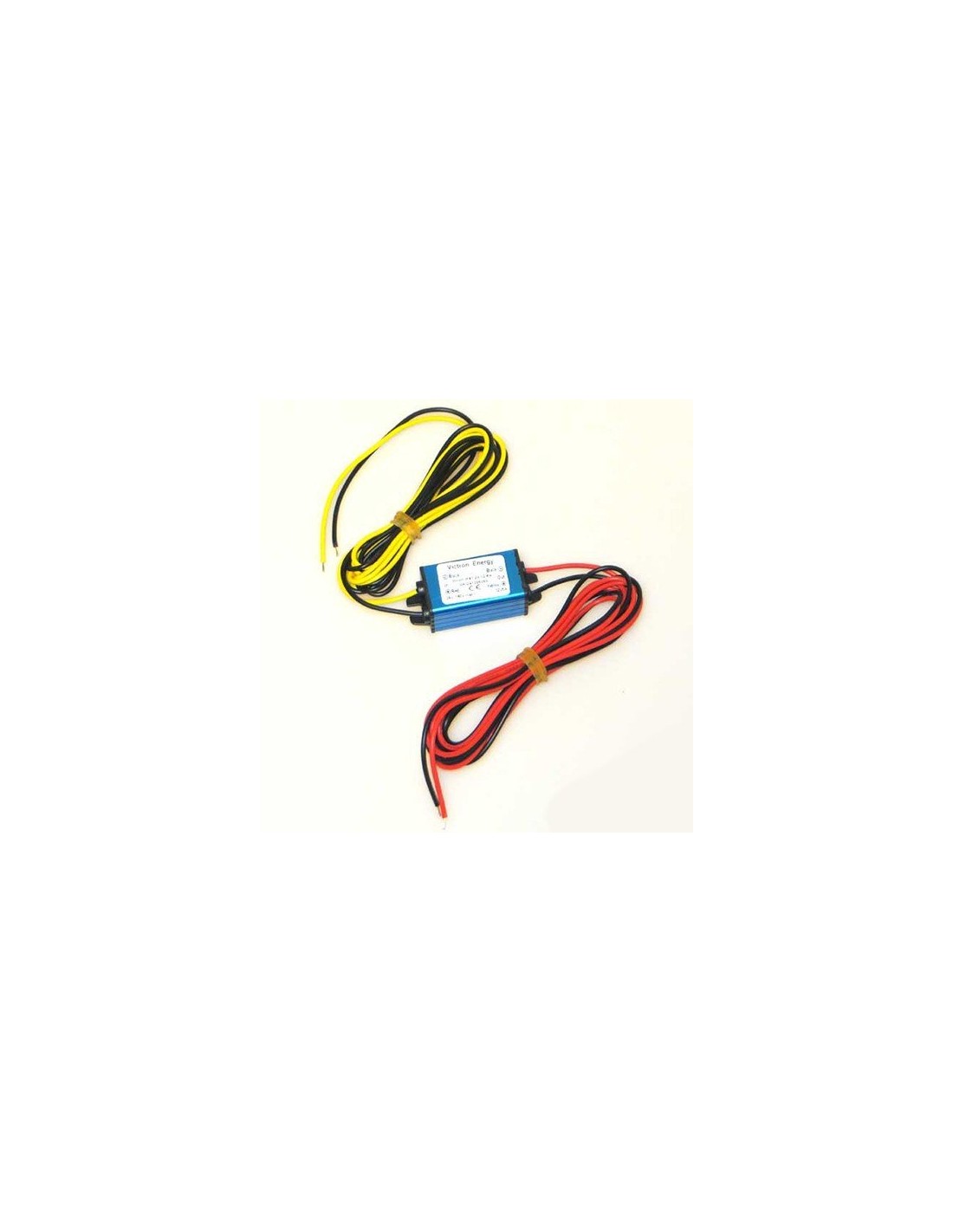

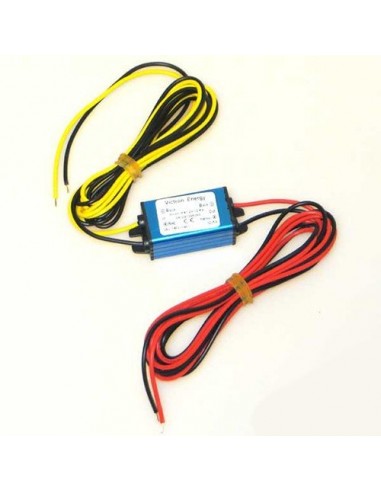

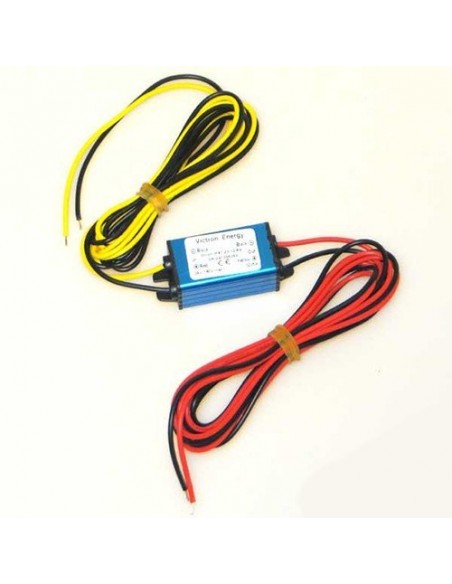

Converter / reducer Victron Orion DC-DC 5A 60W IP67
Converter / reducer Victron Orion DC-DC 5A 60W IP67

Converter Voltage DC-DC Orion 24/12-5A 60W Victron Energy IP67

ORI241205260
Last items in stock
€28.24
VAT included 22 %

€23.15 Vat excl.

The converter Orion Tr Dc-Dc is used to convert the input voltage 15-40V in 12V Adjustable output for a maximum output of 5A.(60w)



Converter Voltage DC-DC Orion 24/12-5A 60W Victron Energy IP67

The converter Orion Tr Dc-Dc is used to convert the input voltage 15-40V in 12V Adjustable output for a maximum output of 5A.(60w)

Features

Modell: ORI241205260
Degree of protection: IP67
Protection against overheating and reverse polarity: Yes
Wide range of input voltage: da 15V a 40V
Casing in blue color

Warranty

2 Year Warranty

Certifications

Specifiche Elettriche e Meccaniche

Input voltage range 15-40V VDC
Stop Voltage 13V
Starting voltage 14V
Internal consumption 1 mA
DC output 12V +/- 3%
Maximum output current 5A
Operating Temperature Range -20°C a 70°C
Efficiency 93%
Weight 50g
Dimensions (h x w x d) in mm 25 x 43 x 20 mm


Dimensioni


Assembly instructions:

The converter is completely encapsulated with an IP67 rating that is:

Waterproof, resistant to water and dust. Its die-cast casing and the electronics of its printed circuit board is completely covered with resin so as to protect it.




Downloads
  Data Sheet EN [LINK]
  Multilingual Product Manual [LINK]
  Certification of Conformity EN [LINK]

Assistance
  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
ORI241205260
8380000000777
