€78.57 Vat excl.

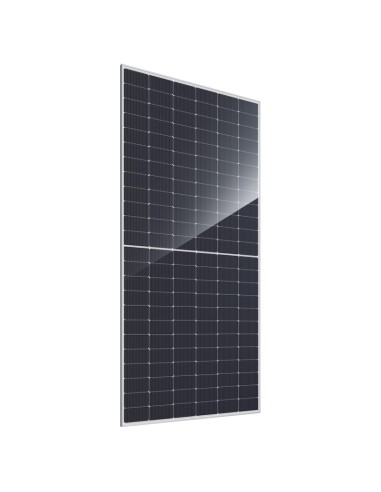

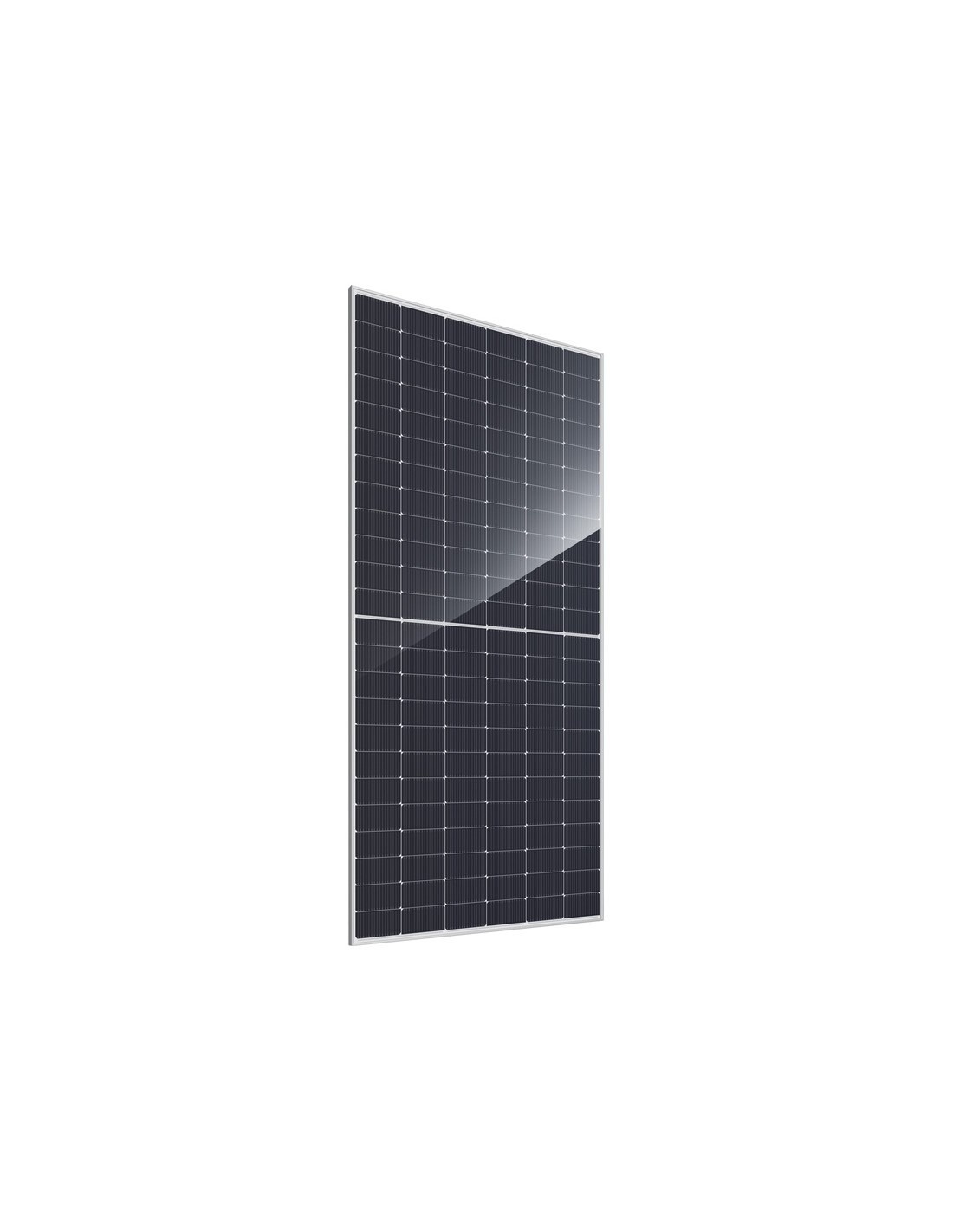

Photovoltaic solar panel 600W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
| ELECTRICAL CHARACTERISTICS | |
| MODEL | JAM66D45-600/LB |
| Peak power (Pmax) | 600W |
| Voltage at Pmax (Vmp) | 39.44V |
| Current at Pmax (Imp) | 15.21A |
| Open Circuit Voltage (Voc) | 47.70V |
| Short Circuit Current (Isc) | 15.95A |
| Maximum System Voltage | 1500V DC |
| Maximum Fuse Rating | 35A |
| Efficiency module | 22.2% |
| MECHANICAL CHARACTERISTICS | |
| Cells | Mono-16BB |
| Junction Box | IP68, 3 diodes |
| Cable Section | 4mm² (IEC), 12AWG(UL) |
| Dimensions | 382 x 1134 x 30 m |
| Weight | 32.5Kg |
| Pallet panels | 36 pieces per pallet |
