Inverter 430W 12V 500VA Victron Energy Multi 12/500/20-16
Inverter 430W 12V 500VA Victron Energy Multi 12/500/20-16

Inverter/chargers MultiPlus 430W 12V 500VA Victron Energy 12/500/20-16

PMP121500000
€401.23
VAT included 10 %

€364.75 Vat excl.

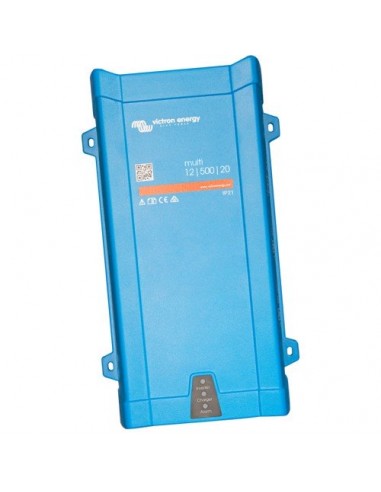

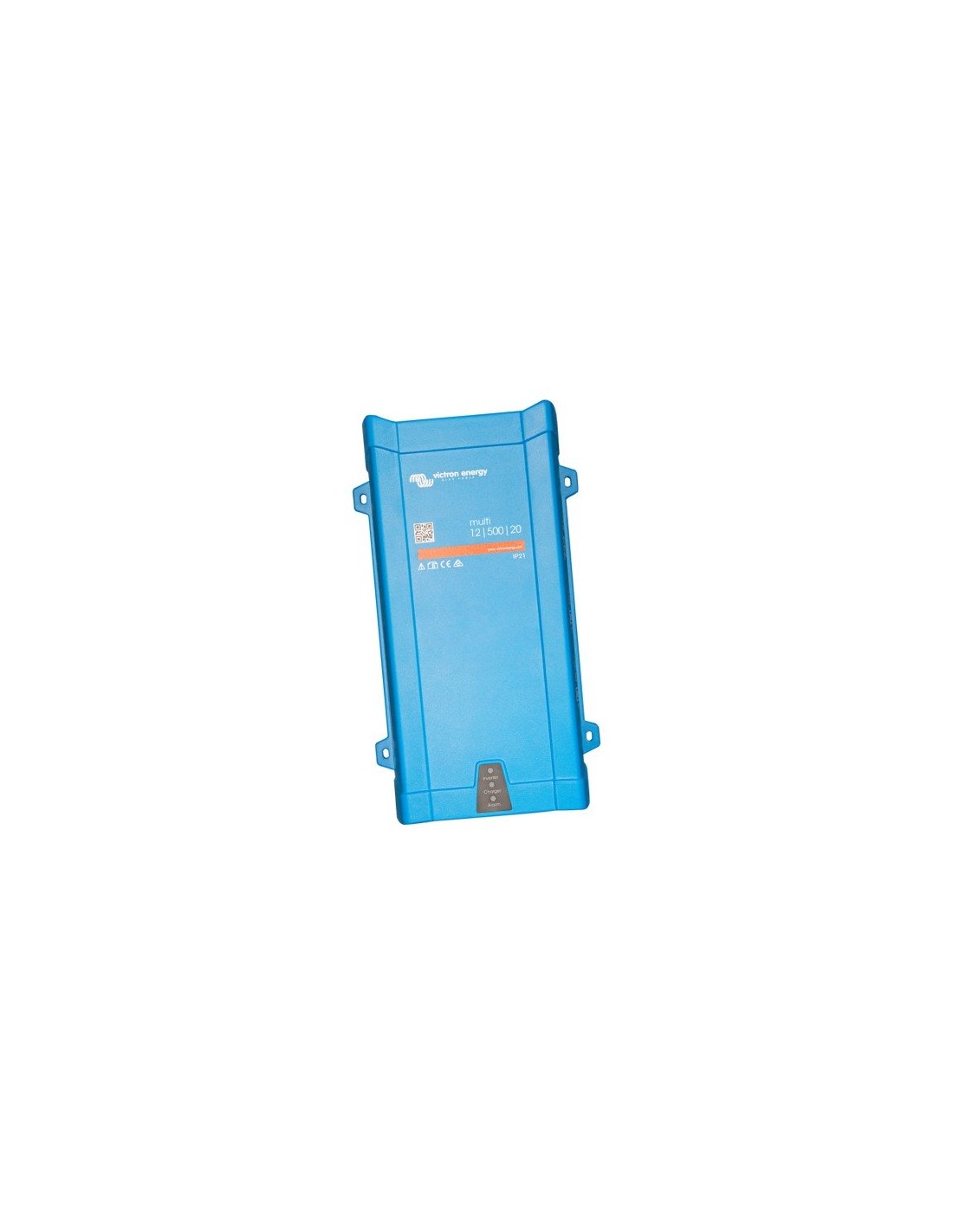

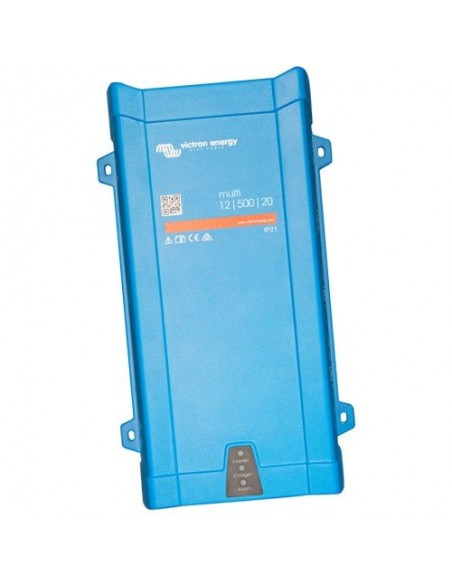

The Multi 500VA is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

Inverter 430W 12V 500VA Victron Energy

MultiPlus 12/500/20-16

The Multi 500VA is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Technical Features

Codice prodotto: CMP121500000
Download the Data Sheet

Warranty

2 Year Warranty

Descrizione

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode
When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when
operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on
Remote operation can be implemented by connecting a switch to the three pole connector.

   Downloads

Datasheet EN [link]

You can Download All The Other Documentation Web site:
www.victronenergy.com

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
PMP121500000
230 V AC-connection
G-ST 18i connector
Model
Multiplus
PowerControl
YES
Transfer switch (A)
16A
Output
tensione di uscita: 230 VAC, Frequenza: 50 Hz
AC Input
Input voltage range: 187-265 VAC - Input frequency: 45 – 65 Hz
Battery temperature sensor
si
Programmable relay
si
Common Characteristics ENCLOSURE
Steel/ABS ( blu RAL 5012)
Battery-connection
25 mm ²
Dimensions (D x W x H)
375 x 240 x 100 mm
Net Weight
6.4 Kg
Rated Power W
430W
Battery Voltage V
12 V
8719076046363
