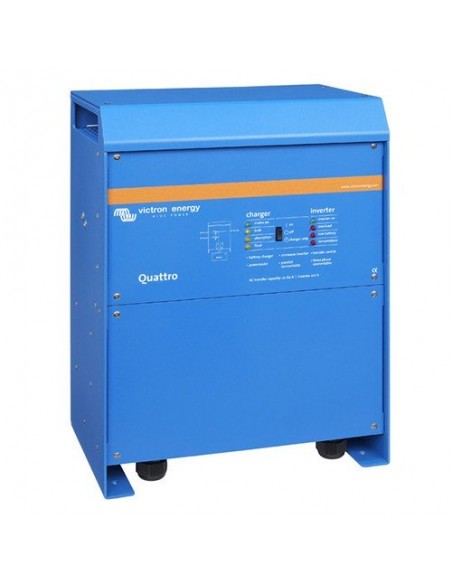

INVERTER 48/5000/70-100/100 THREE-PHASE BATTERY CHARGER VICTRON QUATTRO
INVERTER 48/5000/70-100/100 THREE-PHASE BATTERY CHARGER VICTRON QUATTRO

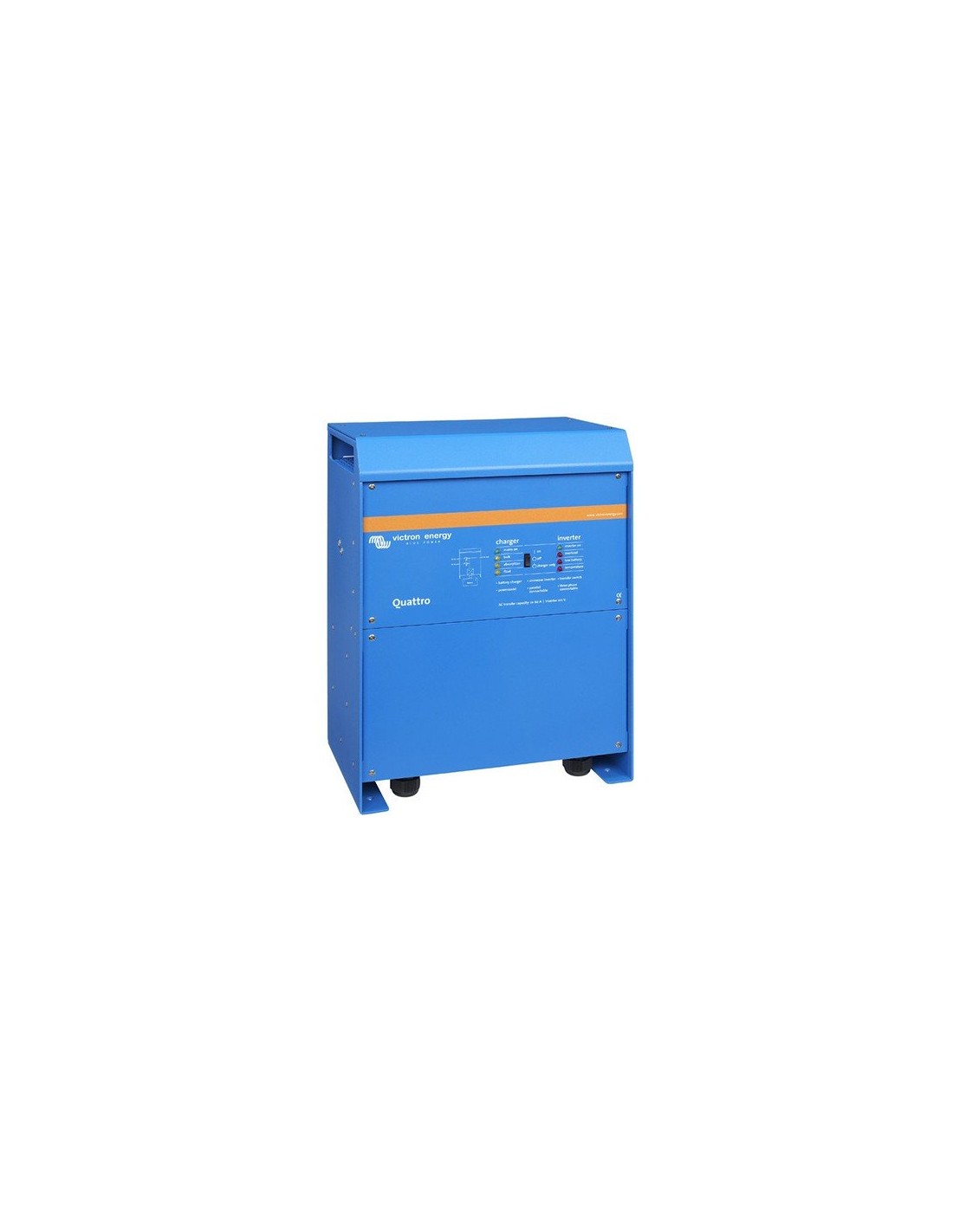

Inverter/chargers 4000W 48V 5000VA Victron Energy Quattro 48/5000/70-100/100

QUA485021010
€1,782.75
VAT included 10 %

€1,620.68 Vat excl.

Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators.
The Quattro will automatically connect to the active source.



Inverter Quattro 4000W 48V 5000VA

48/5000/70-100/100

Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators.
The Quattro will automatically connect to the active source.

Two AC Outputs
The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example can be connected to this output.

Technical Features

Product code: QUA485021010
Download Product Datasheet

Warranty

2 Years Guaranteed

Example of Connection




Features

Virtually unlimited power thanks to parallel operation
Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54 kW / 60 kVA output power and 840 Amps charging capacity.

Three phase capability
Three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 162 kW / 180 kVA inverter power and more than 2500 A charging capacity.

PowerControl – Dealing with limited generator, shoreside or grid power
The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (16 A per 5 kVA Quattro at 230 VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.

PowerAssist – Boosting shore or generator power
This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC power available even during a grid failure
The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems.
Loss of mains detection software is available.

System configuring
- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configuratorsoftware.
- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).

Remote Monitoring and control
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel.
Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Manual, Datasheet and Certifications

Data Sheet EN [LINK]

For all other documents to download, please visit the web site:
www.victronenergy.com

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
QUA485021010
230 V AC-connection
Bolts M6
Model
Quattro
PowerControl
yes
PowerAssist
yes
Output
Output voltage: 230 VAC , 2% Frequency: 50 Hz
Cont. output power at 25°C (VA) (3)
5000
Cont. output power at 25°C (W)
4000
Cont. output power at 40°C (W)
3700
Cont. output power at 65°C (W)
3000
Peak power (W)
10000
Maximum efficiency (%)
95
Zero load power (W)
35
Zero load power in AES mode (W)
30
Zero load power in Search mode (W)
15
Charge voltage 'absorption' (V DC)
57.6
Charge voltage 'float' (V DC)
55.2
Charge current house battery (A) (4)
52.8
Charge current starter battery (A)
4 (12V and 24V models only)
Battery temperature sensor
Yes
Auxiliary output (5)
50
Programmable relay
3x
Protection
output short circuit, overload, battery voltage too high, battery voltage too low temperature too high,230 VAC on inverter output, input voltage ripple too high
VE.Bus communication port
For parallel and three phase operation, remote monitoring and system integration
General purpose com. port
2x
Remote on-off
Si
Common Characteristics ENCLOSURE
ENCLOSURE Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection
Four M8 bolts (2 plus and 2 minus connections)
Dimensions (D x W x H)
444 x 328 x 240 mm
Net Weight
19 Kg
Rated Power W
4000
Battery Voltage V
48 V
8380098970044
