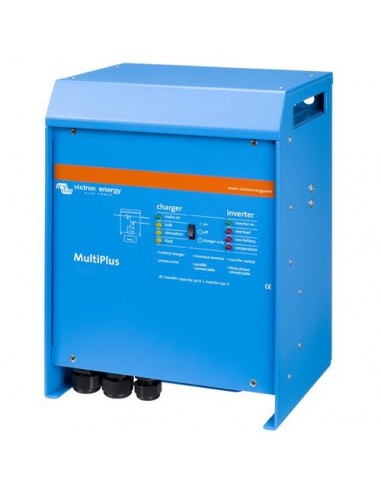

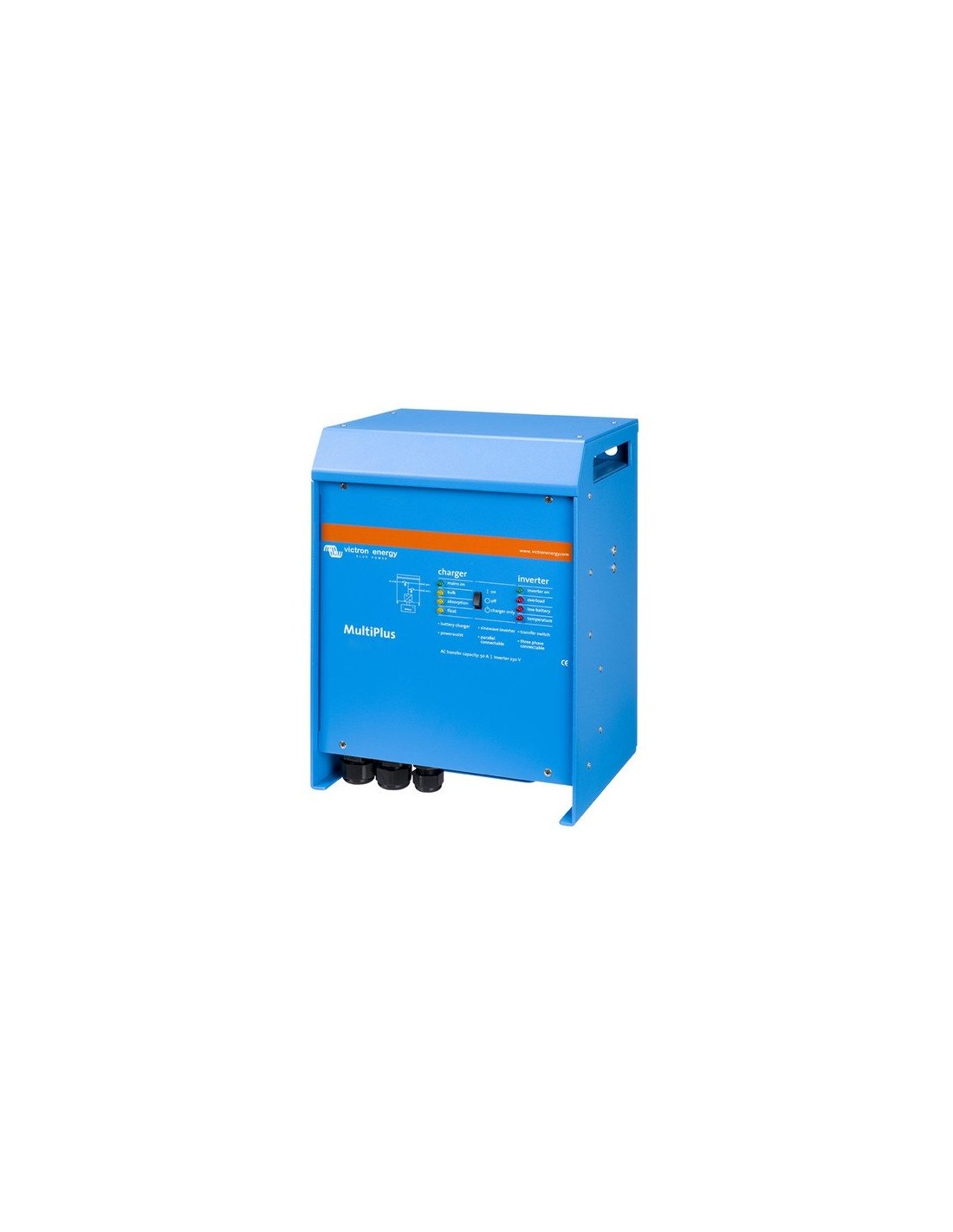

Inverter/charger 2400W 12V 3000VA Victron Energy MultiPlus 12/3000/120-16

PMP122300001
Last items in stock
€1,418.92
VAT included 10 %

€1,289.93 Vat excl.

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure. Models range from 800VA to 5000VA per module.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

Inverter/charger MultiPlus
2400W 12V 3000VA

Model: 12/3000/120-16

Multi-functional
The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure. Models range from 800VA to 5000VA per module.

Unique PowerAssist feature
The MultiPlus will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Technical Features

Product code: PMP123020001
Download Product Datasheet

Warranty

2 Years Guaranteed

Example of Connection




Features

Two AC Outputs
The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on one of the inputs of the MultiPlus. Loads that should not discharge the battery, like a water heater for example can be connected to this output (second output available on models rated at 3 kVA and more).

Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.

Three phase capability
In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a huge 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.

PowerControl - Dealing with limited generator, shore side or grid power
The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC power available even during a grid failure
The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems.
Loss of mains detection software is available.

System configuring
- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar
Chargers can be configured with Assistants (dedicated software for specific applications).

On-site Monitoring and control
Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and control
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel.
Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Remote configuring
When connected to the Ethernet, systems with a Color Control panel can be accessed and settings can be changed.

Manual, Datasheet and Certifications

Data Sheet EN [LINK]

For all other documents to download, please visit the web site:
www.victronenergy.com

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
PMP122300001
230 V AC-connection
Screw terminals 13 mm2 (6 AWG)
Model
Multiplus
PowerControl
Yes
PowerAssist
Yes
Transfer switch (A)
16 or 50
Output
9,5 – 17 V
Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3)
3000VA
Cont. output power at 25°C (W)
2400W
Cont. output power at 40°C (W)
2200W
Cont. output power at 65°C (W)
1700W
Peak power (W)
6000W
Maximum efficiency (%)
93%
Zero load power (W)
20W
Zero load power in AES mode (W)
15W
Zero load power in Search mode (W)
8W
AC Input
Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Charge voltage 'absorption' (V DC)
14.4V CC
Charge voltage 'float' (V DC)
13.8V CC
Storage mode (V DC)
13.2V CC
Charge current house battery (A) (4)
120A
Charge current starter battery (A)
4A
Battery temperature sensor
YES
Auxiliary output (5)
YES (16A)
Programmable relay
YES
Protection
Output short circuit; overload; battery voltage too high; battery voltage too low; temperature too high; 230 VAC on inverter output; input voltage ripple too high
VE.Bus communication port
For parallel and three phase operation, remote monitoring and system integration
General purpose com. port
YES
Remote on-off
YES
Common Characteristics
Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%
Common Characteristics ENCLOSURE
Material & Colour: aluminium (blue RAL 5012) - Protection category: IP 21
Battery-connection
Four M8 bolts (2 plus and 2 minus connections)
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Emission, Immunity
EN 55014-1, EN 55014-2, EN 61000-3-3, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1
Automotive Directive
2004/104/EC
Dimensions (D x W x H)
362 x 258 x 218 mm
Net Weight
18Kg
Rated Power W
2400
Battery Voltage V
12 V
8380000001996
