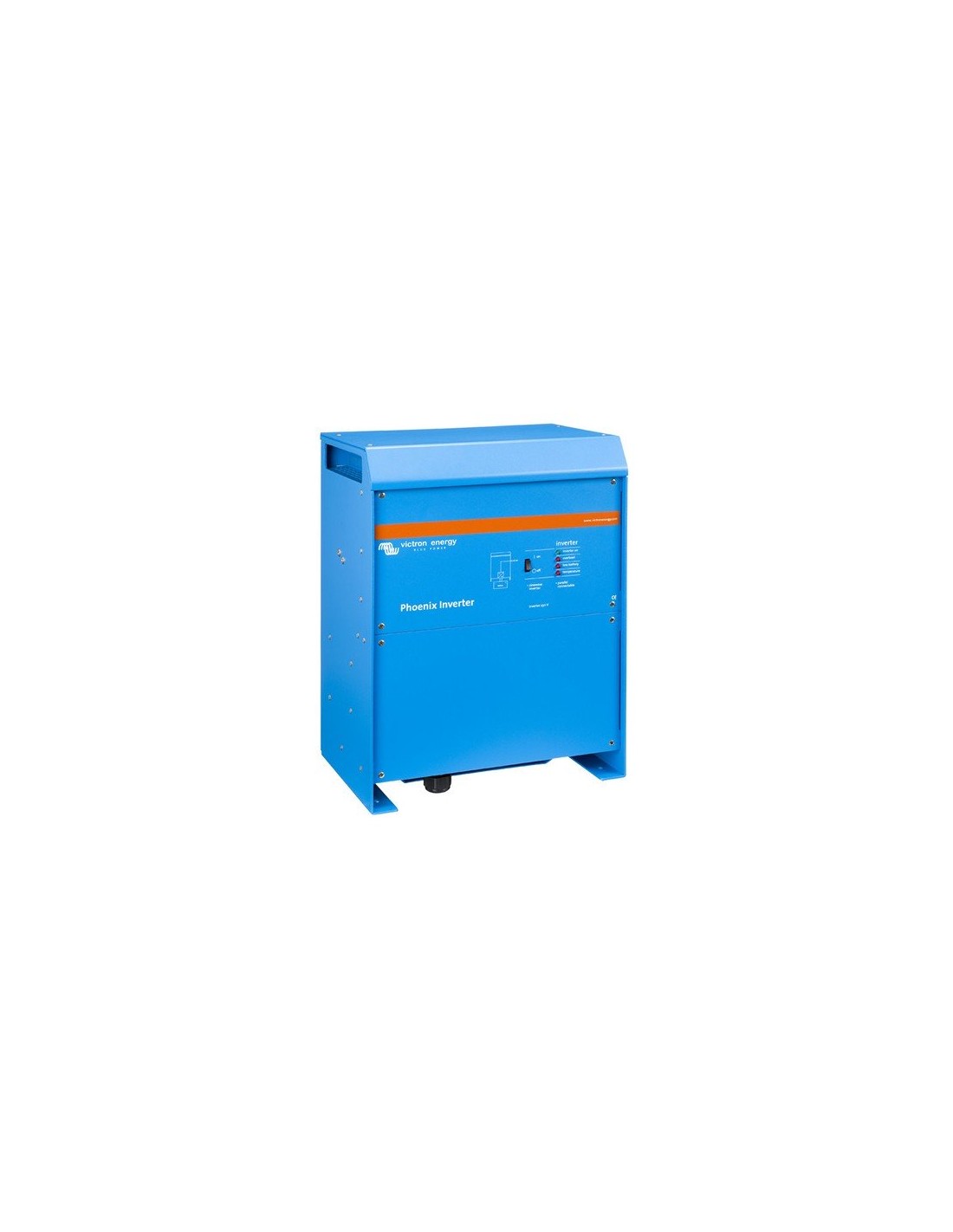

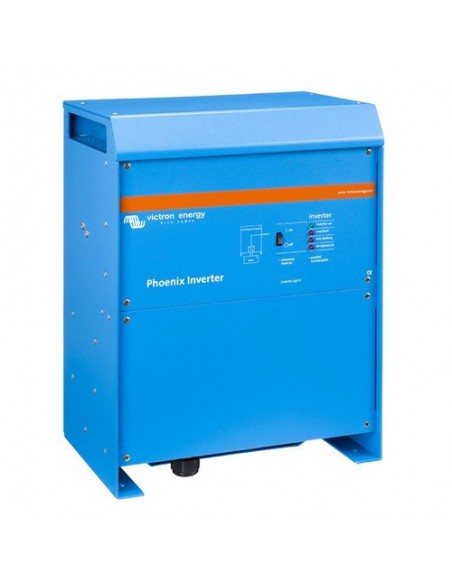

Inverter 4000W 48V 5000VA Victron Energy Phoenix Model 48/5000

PIN485020000
Last items in stock
€1,478.55
VAT included 10 %

€1,344.14 Vat excl.

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.



Inverter Phoenix
4000W 48V 5000VA

Model: 48/5000

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Features

Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface
All models have a RS-485 port. All you need to connect to your PC is our MK2 interface (see under accessories). This interface takes care of galvanic isolation between the inverter and the computer, and converts from RS-485 to RS-232. A RS-232 to USB conversion cable is also available. Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.

New applications of high power inverters
The possibilities of paralleled high power inverters are truly amazing. For ideas, examples and battery capacity calculations please refer to our book ‘Energy Unlimited’ (available free of charge from Victron Energy and downloadable from www.victronenergy.com).

Technical Features

Product Code: PIN485020000
Download Product Datasheet

Warranty

2 Years Guaranteed

Certifications

Connection Diagram




Manual, Datasheet and Certifications

Data Sheet EN [LINK]

For all other documents to download, please visit the web site: [www.victronenergy.com]

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
PIN485020000
230 V AC-connection
Screw terminals
Model
Phoenix
Output
Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (W)
5000
Cont. output power at 40°C (W)
3700
Cont. output power at 65°C (W)
3000
VE.Bus communication port
For parallel and three phase operation, remote monitoring and system integration
Common Characteristics
Operating temperature range: -40 to +65ºC (fan assisted cooling)Humidity (non-condensing): max 95%
Common Characteristics ENCLOSURE
Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection
2+2 M8 bolts
Dimensions (D x W x H)
444x328x240 mm
Net Weight
30 Kg
Rated Power W
4000
Battery Voltage V
48 V
