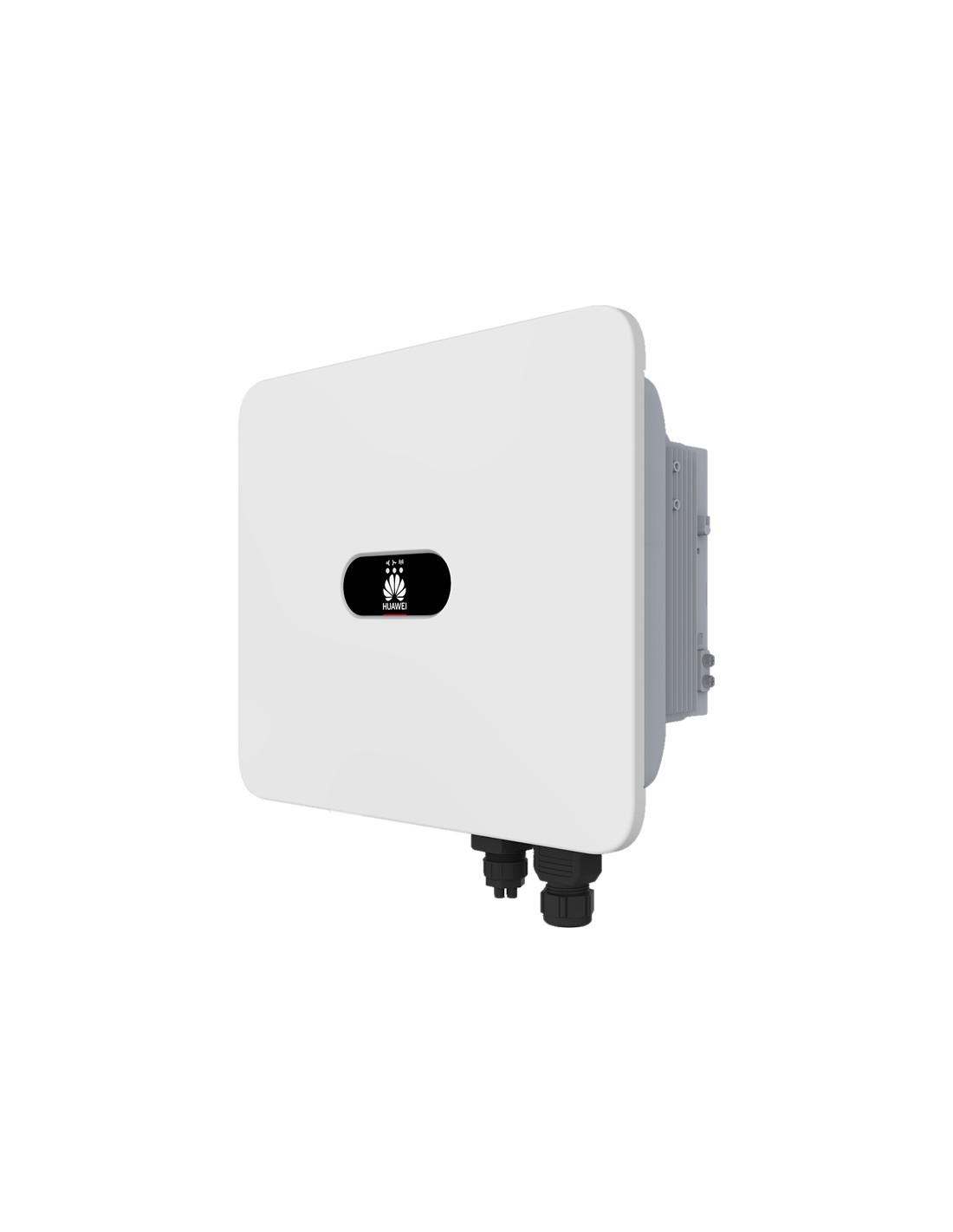

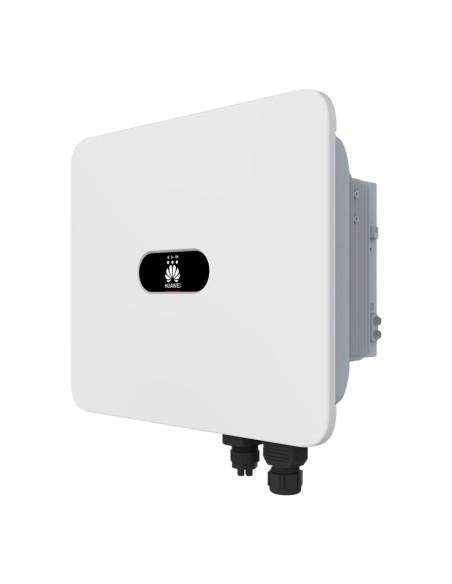

Huawei 17kW SUN2000-17K-MB0 three-phase hybrid inverter solar photovoltaic

Huawei 17kW SUN2000-17K-MB0 three-phase hybrid inverter solar photovoltaic

Name: Huawei 17kW SUN2000-17K-MB0 three-phase hybrid inverter solar photovoltaic
Brand: Huawei
SKU: HUA-17K-MB0-SUN2000
Price: 2783.24 EUR
Availability: InStock

Reference HUA-17K-MB0-SUN2000

Last items in stock

€2,783.24

VAT included 10 %

€2,530.22 Vat excl.

Active safety: active protection from electric arcs;
Higher yield: up to 30% more production thanks to optimizers;
Battery ready: dual battery input, compatible with LUNA2000-S0 and S1.

Huawei 17kW SUN2000-17K-MB0 three-phase hybrid inverter

Features

Active safety: active protection from electric arcs;
Higher yield: up to 30% more production thanks to optimizers;
Battery ready: dual battery input, compatible with LUNA2000-S0 and S1.

For more details, download the following documents:

Datasheet: [Download]

Technical features

Input
Recommended max PV power	25,500 Wp
Maximum input voltage	1,100 V
Max. input current for MPPT	30 A (two strings) / 20 A (single string)
Max. short circuit current	40 A
Starting Voltage	200 V
MPPT operating voltage range	200 V ~ 1000 V
Nominal input voltage	600 V
Max number of inputs for MPPT	4
Number of MPPTs	2
Smart String Energy Storage System input
Smart String ESS compatible	LUNA2000-5/10/15-S0 LUNA2000-7/14/21-S1 (Disponibile a partire da Q1 2024)
Number of battery inputs	2
Maximum charging power	21 kW (single string) / 25 kW (two strings)
Maximum discharge power	18.7 kW
Maximum working current	26.25 A
Output
Rated output power	17,000 W
Max. apparent power	18,700 VA
Rated output voltage	220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415 Vac; 3 W / N + PE
Nominal AC mains frequency	50 Hz / 60 Hz
Maximum output current	28.6 A / 380 Vac 27.1 A / 400 Vac 26.1 A / 415 Vac
Power Factor	0.8 in anticipo ... 0.8 in ritardo
Features and Protections
Overvoltage category	PV Ⅱ/AC Ⅲ
DC input switch	Yes
Islanding protection	Yes
AC overcurrent protection	Yes
DC reverse polarity protection	Yes
DC overvoltage protection	Type II
AC overvoltage protection	Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
AFCI	Integrated
Standard Compliance
Certifications	EN/IEC62109-1, EN/IEC62109-2
Network connection standards	IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, CEI-016, C10/C11, EN50549-2, VDE4110
Compatible optimizer
Compatible optimizer	SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P
General data
Display	LED indicators, integrated WLAN + FusionSolar App
Communication	RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA (Optional; available from Q1 2024)
Operating temperature range	-25 °C ~ +60 °C (-13 °F ~ 140 °F)
Cooling down	Smart Air cooling
Degree of Protection	IP66
Dimensions (W x H x D)	546 x 460 x 228 mm
Weight	21kg
