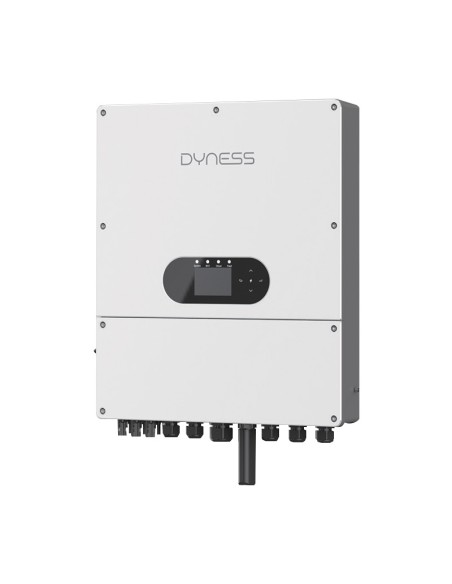

6kW LS Dyness 2 MPPT Single-Phase Hybrid Inverter for Photovoltaic
D6.0K-LS
€885.50
VAT included
10 %
€805.00 Vat excl.
The LS series storage inverter from Dyness is designed for residential hybrid systems.
6kW LS Dyness 2 MPPT Single-Phase Hybrid Inverter for Photovoltaic
The LS series storage inverter from Dyness is designed for residential hybrid systems.
Main Features
- Colorful touch LCD, IP66 protection;
- CT phase sequence self-correcting;
- Max. 16pcs parallel for on-grid and off-grid operation;
- Support multiple batteries parallel and generator charging;
- Automatic communication with battery BMS without manual setup;
- High precision zero export control.
For more details, download the following documents:
- Datasheet [Download]
Technical features:
| DC Input (PV Side) | |
| Recommended maximum FV input power | 12kW |
| Maximum PV input voltage | 600V |
| Nominal PV input voltage | 380V |
| Fist Feed-in voltage | 60V |
| MPPT range for nominal power | 180 - 500V |
| Maximum input current | 20A / 20A |
| Maximum short-circuit current | 27A / 27A |
| MPPT number / Maximum number of strings | 2 / 1 |
| Battery | |
| Battery type | Lithium-Ion / Lead-Acid |
| Battery voltage range | 40 - 60 V |
| Maximum charge / discharge power | 6000/6600W |
| Maximum charge / discharge current | 140A |
| Communication | CAN / RS485 |
| AC Output (Grid Side) | |
| Nominal Power Output To Grid (VA) | 6000 VA |
| Max.Power Output To Grid (VA) | 6600 VA |
| Nominal Output Voltage (V) | 220/230/240,L/N/PE |
| Nominal Output Frequency (Hz) | 50 Hz / 60 Hz |
| Nominal AC Current To Grid (A) | 27.3/26.1/25 A |
| Max.AC Current To Grid (A) | 30 A |
| Max.AC Current From Grid (A) | 50 A |
| Output Power Factor | Adjustable from 0.8 leading to 0.8 lagging |
| Output THDi (Nominal Power) | < 3% |
| AC Input (Grid Side) | |
| Nominal Input Apparent Power(VA) | 6000 VA |
| Max. AC Input Current(A) | 50A |
| Nominal AC Generator Frequency(Hz) | 50 - 60 Hz |
| AC Output (Back-up) | |
| Max.Continous Output Power (VA) | 6600 VA |
| Peak Output Power (VA) | 12000 @10s |
| Switch time | < 4 ms |
| Nominal Output Voltage (Vac) | 220/230/240,L/N/PE |
| Output THDv (@Linear Load) | < 3% |
| Efficiency | |
| Maximum efficiency | 97.60% |
| EU efficiency | 96.50% |
| Protection | |
| Anti-island Protection | Integrated |
| PV Insulation Resistance Detection | Integrated |
| PV Reverse Protection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| AC Over Current/Voltage Protection | Integrated |
| DC Switch (PV) | Integrated |
| Surge Protection | DC TypeIII/AC TypeIII |
| General Data | |
| Dimensions (W × H × D) | 501 x 586 x 193 mm |
| Weight | 17 kg |
| Cooling | Natural Convection |
| Operating temperature range | -30 ~ 60°C |
| Protection degree | IP66 |
| Noise(dB) | < 30 dB |
| Maximum operating altitude | ≤ 3000 m |
| Certifications and Standards | |
| Grid regulation | EN50549, NRS097, G98, G99, IEC61727, IEC62116 |
| Safety Regulation | IEC/EN62109-1&2 |
| EMC | IEC/EN61000-6-1/2/3/4 |
- MPPT number
- 2
- Typology
- Single-phase
- Inverter power
- 6.0kW
- Inverter series
- LS
