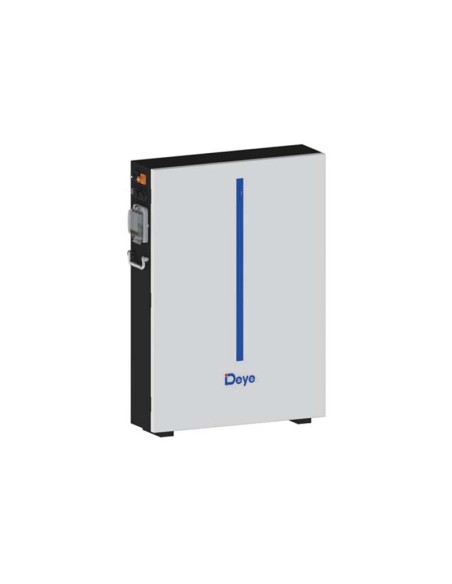

Deye RW-M6.1-B 6.14kWh lithium battery for photovoltaic storage inverter
RW-M6.1-B
€1,407.76
VAT included
10 %
€1,279.78 Vat excl.
The Deye RW-M6.1 lithium battery is a cutting-edge energy storage solution designed for both residential and commercial applications.
Deye RW-M6.1-B 6.14kWh lithium battery
The Deye RW-M6.1 lithium battery is a cutting-edge energy storage solution designed for both residential and commercial applications.
This system of modular batteries makes the perfect choice for those who want to increase their self-consumption ratio and optimize their energy use.
Main features
- LFP technology.
- Intelligent Battery Management System (BMS).
- High discharge power and wide temperature range.
- Modular and expandable.
- Convenient installation and maintenance.
- Space-saving wall-mounted design.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| RW-M6.1-B | |
| Battery Chemistry | LiFePO4 |
| Capacity (Ah) | 120 |
| Scalability | Max.32 pcs in Parallel(196kWh) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2~57.6 |
| Energy (kWh) | 6.14 |
| Usable Energy (kWh) | 5.53 |
| Charge/Discharge Current (A) | Recommend: 60 Max: 100 Peak (2 mins, 25°C): 150 |
| Other Parameter | |
| Recommend Depth of Discharge | 90% |
| Dimension (W/H/D mm) | 510 x 740 x 145 (Without Base,depth of 161mm with Hanging Board) |
| Weight Approximate (kg) | 58 |
| Master LED lndicator | 5 LED (SOC:20%~SOC100%),3LED (working, alarming, protecting) |
| IP Rating of Enclosure | IP65 |
| Operating Temperature | Charge: 0~55°C / Discharge: -20°C~55°C |
| Cycle Life | 6000 (25°C± 2°C,0.5C/0.5C,90%DOD,700/,EOL) |
| Installation | Wall-Mounted, Floor-Mounted |
| Communication Port | CAN2.0, RS485 |
| Energy Throughput | 20MWh@70%EOL |
| Certification | UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50 |
- Overall dimension
- 510 x 740 x 145 mm
- Voltage (V)
- 51.2V
- Accumulation capacity
- 6.1kWh
8370000036708
