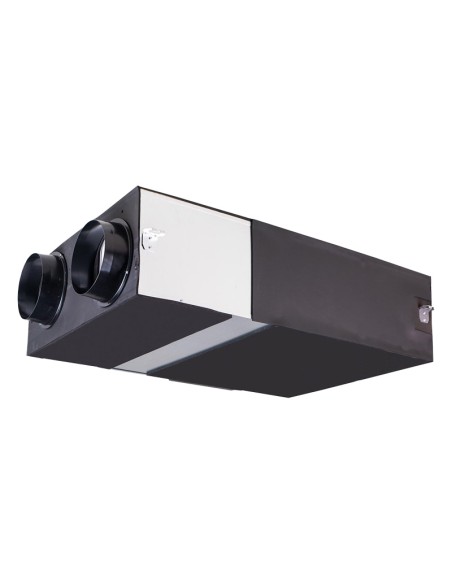

VAM-J 650 mc/h heat recovery unit Daikin

The Daikin VAM-J is a highly efficient ventilation unit, ideal for commercial applications.

Main Features

• Model: VAM650J(8);

• Power Supply: Single Phase;
• Power Consumption – 50Hz: 0.247 / 0.195 kW;

• Cabinet: Galvanized steel sheet;

• Dimensions: 301 x 1113 x 886 mm;

• Weight: 61.5 kg;

• Fan: 90.0 Pa;

• Operating Range: 0°C~40°C DB, RH 80% or less;

• Sound Pressure Level– 50 Hz: 39/38 dBA;

• Heat Exchange Element: Specially treated fireproof paper;

• Connecting Duct Diameter: 200 mm;

• Operating Mode: Heat Exchange Total heat air-to-air cross-flow;

• Sound Power Lwa: 58 dB.


Other Features

• Filter replacement indication based on actual filter contamination;
• Heat recovery ventilation with heat post-treatment and humidification;
• The "Free cooling" function is available when the outside temperature drops below the inside temperature (e.g., during night-time);
• Optional fine and medium mesh dust filters ePM10 70% (M6), ePM1 55% (F7), ePM1 70% (F8) allow you to meet the demands of the customer or regulations;
• Shortened installation times thanks to easy adjustment of the nominal air flow rate: this means less need for dampers compared to traditional systems;
• Ideal solution for shops, restaurants, or offices that require maximum floor space for furniture and furnishings;
• Reduced energy consumption with a specially designed DC fan motor;
• Prevents heat loss due to excessive ventilation, maintaining indoor air quality thanks to the optional CO2 sensor;
• Can be used as a single module or integrated into the Sky Air or VRV system;
• Specially designed exchanger element - uses a material with high latent heat recovery qualities (HEP);
• No condensate drain pipes required;
• Can operate in a wide temperature range static pressure;
• Comprehensive solution for fresh air supply with optional electric heater;
• Wide range of units: air flow rates from 150 to 2,000 m³/hour.
