BPP900400100
€355.03
VAT included 22 %

€291.01 Vat excl.

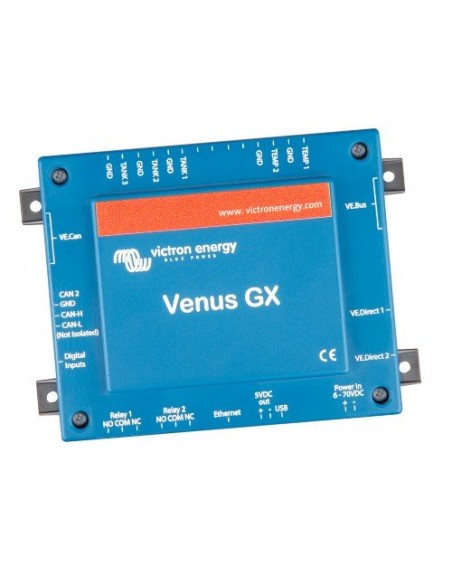

Venus GX
The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.



Venus GX System Controller

Venus GX
The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.

VRM Online Portal
All readings are forwarded to our free remote monitoring website: the VRM Online Portal. To get an impression, try the demo on https://vrm.victronenergy.com.

Remote Console on VRM
The way to access the device for setting up, as well as monitoring, is via Remote Console. Either via VRM, via the built-in WiFi Access Point, or on the local LAN/WiFi network.

Automatic genset start/stop
A highly customizable start/stop system. Use state of charge, voltage, load and other parameters.
Define a special set of rules for quiet times, and optionally a monthly test run.

The heart of ESS – Energy Storage System
The Venus GX is the Energy Manager in an ESS system. More information in the ESS manual:
https://www.victronenergy.com/live/ess:design-installation-manual

Data logging
When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored. These files can


Supported products

• Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).

• BlueSolar MPPT Solar Chargers with a VE.Direct port.

• BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one.

• BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this.

• BMV-600 family can be connected to the VE.Direct ports on the Venus GX. Requires an accessory cable.

• Lynx Ion + Shunt

• Lynx Ion BMS

• Lynx Shunt VE.Can

• Skylla-i battery chargers

• NMEA2000 tank sensors

• A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position.

• Fronius PV Inverters

Technical Features

Venus GX
Power supply voltare range 8-70V D
Current Draw 210 mA @ 12V 110 mA @ 24V 60 mA @ 48V
Communication ports
VE.Direct 2 separate VE.Direct ports – isolated
VE.Can 2 paralleled RJ45 sockets – isolated
CAN 2nd CAN interface – non isolated
VE.Bus 2 paralleled RJ45 sockets – isolated
USB 2 USB Host ports – not isolated
Ethernet 10/100/1000MB RJ45 socket – isolated except shield
WiFi Access Point Use to connect to Remote Console
WiFi Client Connect the Venux GX to an existing WiFi network
IO
Potential free contact NO/COM/NC – 6 A 250 VAC/30 VDC
Tank level inputs 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm)
Temperature level inputs 2 x Requires ASS000001000.
3rd party interfacing
Modbus-TCP Use Modbus-TCP to monitor and control all products connected to the Venus GX
JSON Use the VRM JSON API to retrieve data from the VRM Portal
Other
Outer dimensions (h x w x d) 45 x 143 x 96
Operating temperature range -20 to +50°C
Standards
Safety EN 60950
EMC EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2

Features

    • Internet connection
      The Venus GX can be connected to internet with an Ethernet cable and via Wi-Fi. The Venus GX has no internal cellular modem: there is no slot for a sim-card. Use an off-the-shelf GPRS or 3G router instead.

    • Tank level inputs
      The tank level inputs are resistive: connect them to a resistive tank sender. Such tank senders are not supplied by Victron. The tank level ports can each be configured to work with either European tank senders (0 - 180 Ohm), or US (240 - 30 Ohm).

  • Other highlights
    - The Venus GX can automatically update itself from the internet, when there is a new software version available.
    - Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.
    - Use the Venus GX as a Modbus-TCP gateway to all connected Victron products.
    - Powered by the Venus OS – embedded linux. https://github.com/victronenergy/venus/wiki/sales-pitch

   Downloads

Datasheet EN [link]

For all other documents to download, please visit the web site: [www.victronenergy.com]
