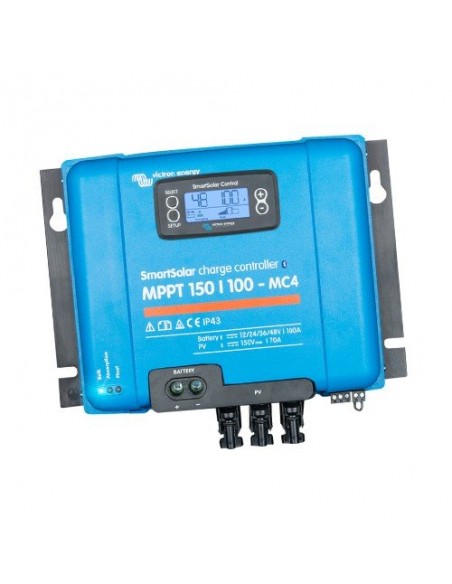

Smartsolar MPPT Charge Controller 150/100-MC4 150Voc 100A Victron Energy
Smartsolar MPPT Charge Controller 150/100-MC4 150Voc 100A Victron Energy

Smartsolar MPPT Charge Controller 150/100- VE.Can 150Voc 100A Victron Energy

SCC115110511
Delivery: 7 days
€567.97
VAT included 10 %

€516.34 Vat excl.

Bluetooth integrated (key not required) Optional LCD display Communication port VE.Direct Available with screw terminals or (solar terminals)



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

SmartSolar MPPT Charge Controller

150/100- 150Voc 100A

  • Bluetooth interno (chiavetta non necessaria)
  • Display LCD opzionale
  • Porta di comunicazione VE.Direct
  • Disponibile con morsetti a vite o terminali (solari)

Technical Features

Codice prodotto: SCC115110511
Download the Data Sheet

Warranty

2 Year Warranty

Dimension




Descrizione

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to  0% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on ourwebsite), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Remote on-off
To connect for example to a VE.BUS BMS.

Programmable relay
Can be programmed (a.o. with a smartphone)to trip on an alarm, or other events.

Optional: pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.

Manuals, Technical Specifications and Certifications

Data Sheet [LINK]
Multilingual Manual [LINK]

You can Download All The Other Documentation Web site:
www.victronenergy.com

Assistence

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
SCC115110511
Technology (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 / 48 VDC Auto work
Rated Battery Current
100A
Max. PV input power
12V (1450W)24V (2900W)48V (5800W)
Self-consumption
12V (35 mA)48V (20 mA)
Terminal
35 mm²
Working temperature
-30°C - +60°C
Overall dimension
246x295x103
Net weight
4.5kg
8719076050360
