Smartsolar MPPT Charge Controller 100/20 48V 100Voc 20A Victron Energy

SCC110020160R
€107.60
VAT included 22 %

€88.20 Vat excl.

Internal Bluetooth (unnecessary key), Optional LCD Display Communication port VE.Direct, Available with screw terminals.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

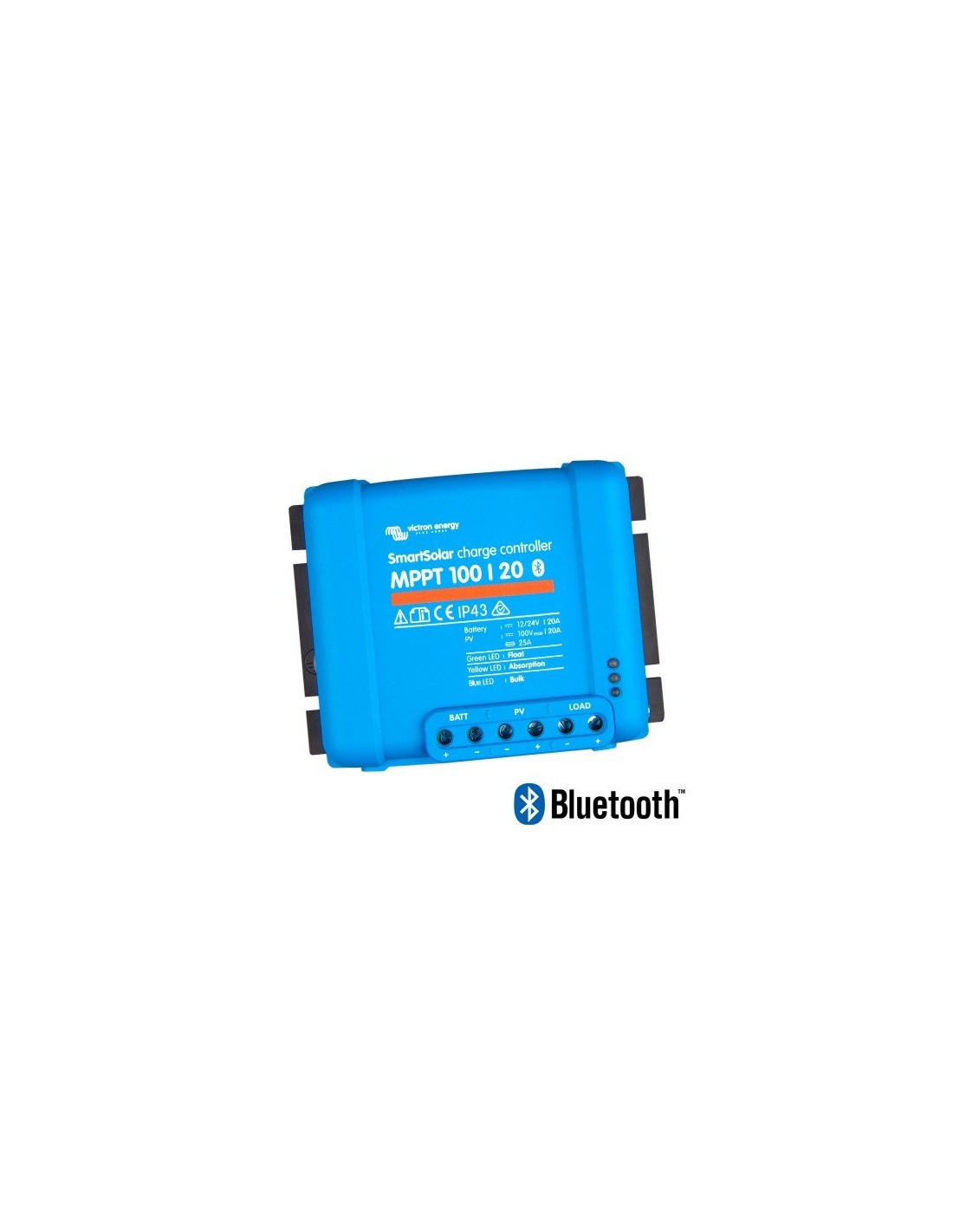

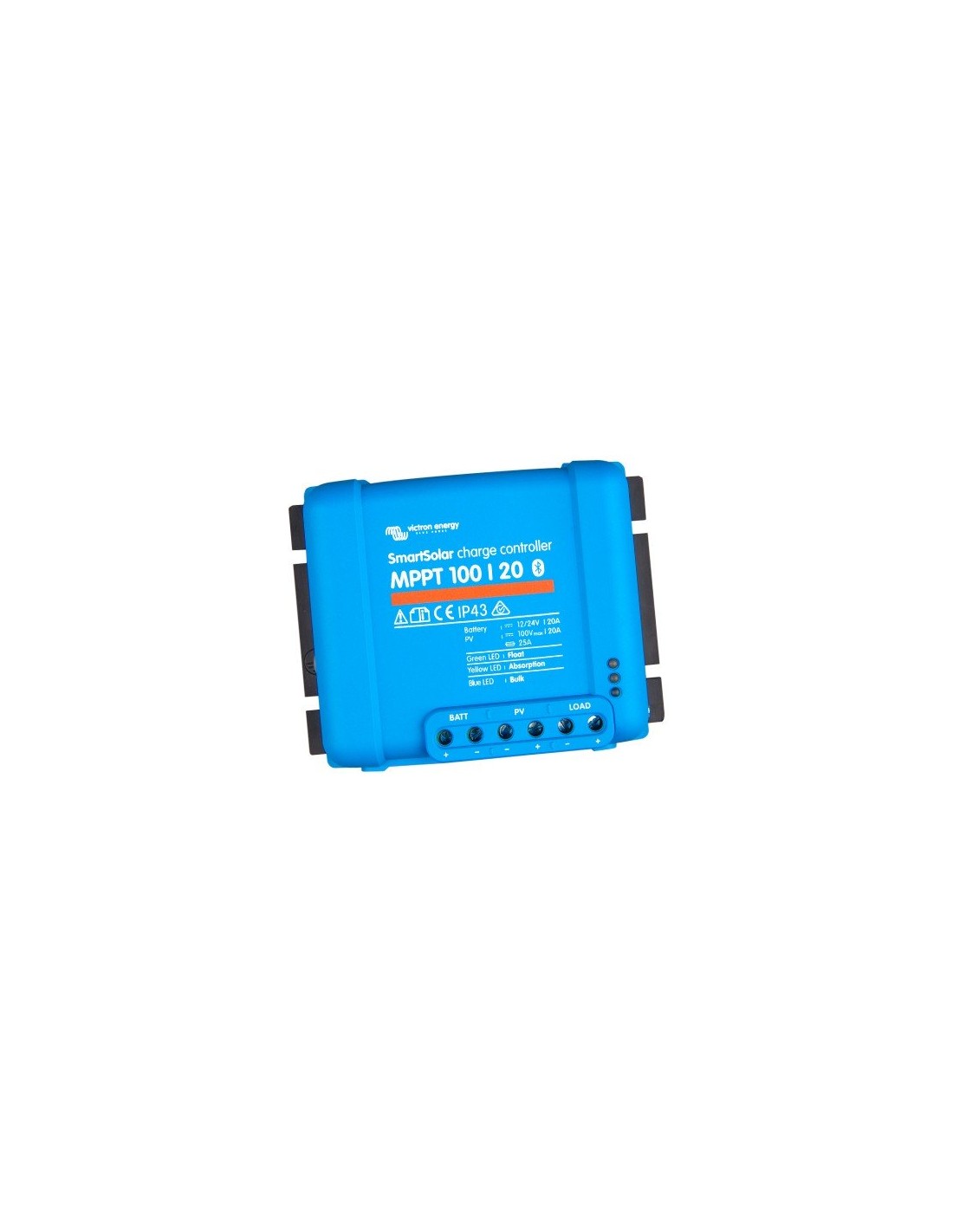

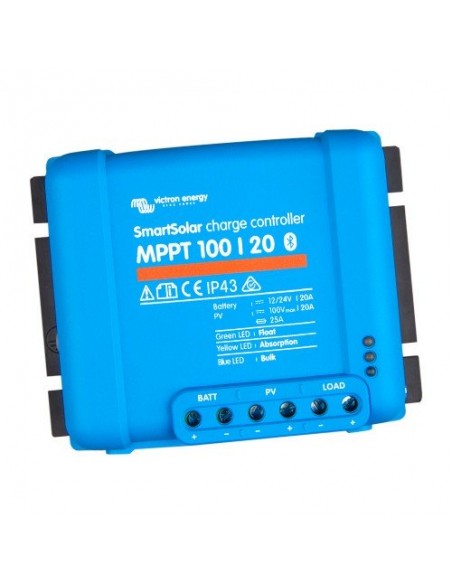

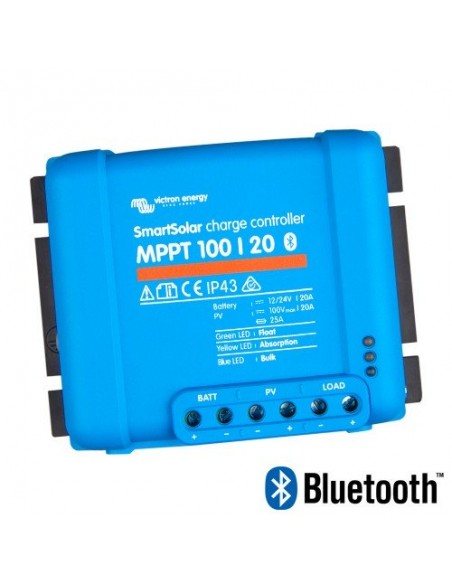

SmartSolar MPPT Charge Controller

100/20 48V 100Voc 20A

SmartSolar is all about functionality and options. These highly efficient ultra-fast Maximum Power Point Tracking (MPPT) solar charge controllers have it all - from high efficiency, optimal partial shading performance, programmable battery algorithms, street light functions and more. Smart is for built in Bluetooth for monitoring and control with VictronConnect. Options include remote monitoring over the internet via the VRM Portal, also a pluggable LCD display for the larger models.

Tecnical Features

Product Code: SCC110020160R
Download Datasheet

Warranty

2 years warranty

Description

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm
See the software section on our website for details

Day/night timing and light dimming option
See the software section on our website for details

Programming, real-time data and history display options
- Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle
and the MPPT app discovery sheet for screenshots.
- ColorControl panel

Display to Control and Monitoring Color Control GX Victron Energy (not included, but is purchasable separately)


The Color Control GX (CCGX) provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more.

N.B.: the product is not included in the kit, but it can be purchased separately.

MPPT Control for the BlueSolar MPPT Charge Controller Victron Energy (not included, but is purchasable separately)


The MPPT Control lets you see the status as well as setup all BlueSolar MPPT Charge Controllers that have a VE.Direct communications port.


N.B.: the product is not included in the kit, but it can be purchased separately.

   Downloads

Datasheet link

You can Download All The Other Documentation Web site: www.victronenergy.com

   Customer Service

0882 22 82 47
[email protected]
Product Code
SCC110020160R
Technology (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
48VDC
Rated Battery Current
20A
Max. PV input power
12V (290W)24V (580W)36V (870W)48V (1160W)
Self-consumption
12V (14.4 mA)24V (28.8 mA)36V (43.2 mA)48V (57.6 mA)
Terminal
6 mm²
Working temperature
-30°C - +60°C
Overall dimension
100x113x60mm
Net weight
0.65kg
8380000040957
