Cavo Elettrico 15mt 35mm
Cavo Elettrico 15mt 35mm

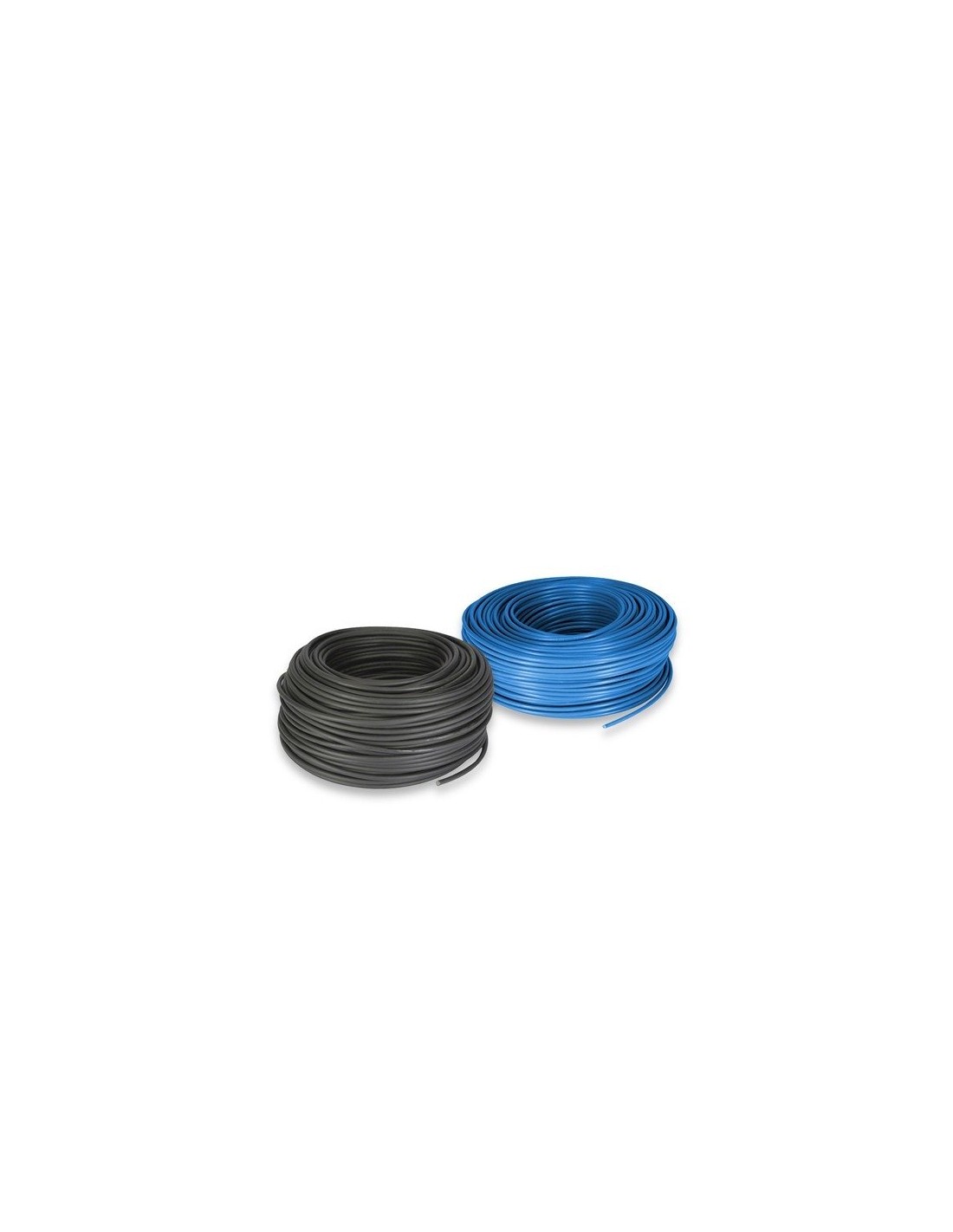

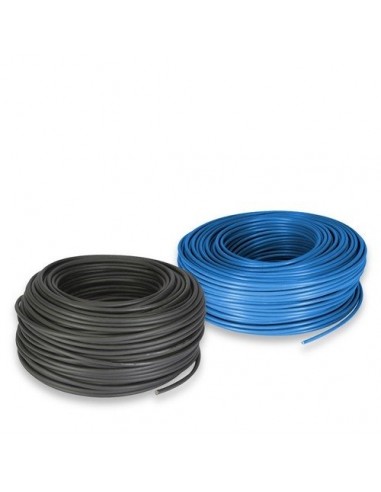

Electric Cable Set 35mm 15mt Blue and 15 Black

CAVENE15mt-35
€272.73
VAT included 22 %

€223.55 Vat excl.

Electric Cables are suitable for fixed installation inside and outside, without protection or in pipes or cashed out, or similar closed systems. This set consists of 15 m Electric cable R / N.



Electric Cable Set 15mt 35mm

The section 1mm² is used for wiring electrical panels or electrical circuits of lifts or hoists. Do not install in contact with hot surfaces.

Components of the Set

  N. Component Model Features Datasheet
1 Electric Cable RED 35 mm 15 mt
1 Electric Cable BLACK 35 mm 15 mt

SPECIFICATIONS SOLAR CABLE

  • Rated voltage U0 450 V
  • Nominal voltage U 700V
  • Test voltage 3000 V
  • Maximum voltage Um 1000 V
  • Maximum operating temperature + 70 ° C
  • Temperature Maximum short circuit + 160 ° C
  • Minimum operating temperature (without mechanical shock) -10 ° C
  • Minimum temperature of installation and use + 5 ° C
  • Installation Fixed: D & lt; 12 = 3D D & lt; 20 = 4D
  • Free Movement: D & lt; 12 = 5D D & lt; 20 = 6D
  • Maximum pulling stress: 50 N / mm 2
  • Unipolar: Black, brown, light blue, gray, red, white, yellow / green, orange, pink, turquoise, violet ..
  • Marking and engraving GENERAL CABLE - CEI 20-22II -N07V-K IEMMEQU - year
