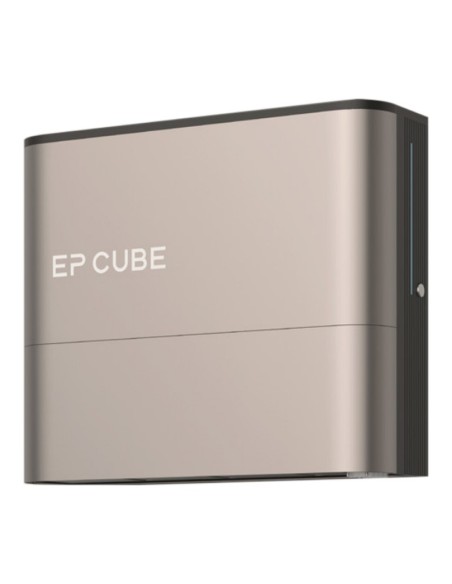

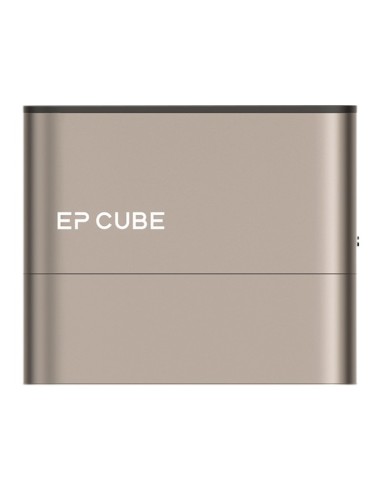

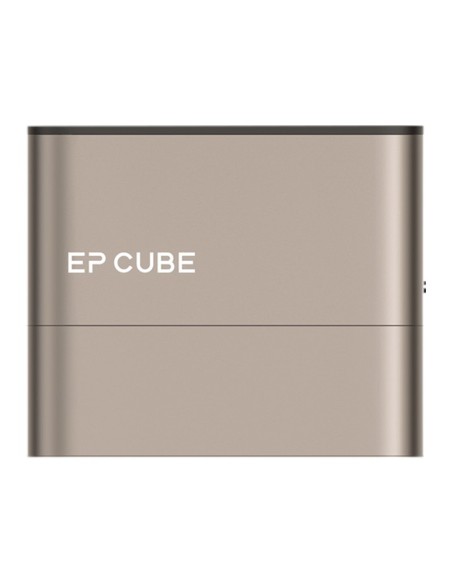

CanadianSolar EP CUBE 10kW three-phase Hybrid Inverter for All-in-One System

CanadianSolar EP CUBE 10kW three-phase Hybrid Inverter for All-in-One System

Name: CanadianSolar EP CUBE 10kW three-phase Hybrid Inverter for All-in-One System
Brand: Canadian Solar
SKU: EP Cube PCS-EU2-T12G1
Price: 2702.43 EUR
Availability: InStock

Reference EP Cube PCS-EU2-T12G1

€2,702.43

VAT included 10 %

€2,456.75 Vat excl.

EP Cube is an all-in-one, flexible, and intelligent residential energy storage solution for new and existing photovoltaic systems.

NOTE: INVERTER COMPATIBLE WITH EP CUBE 5kWh BATTERIES ONLY.

CanadianSolar EP CUBE 10kW three-phase Hybrid Inverter for All-in-One System

EP Cube is a flexible and intelligent home energy storage solution, ideal for new and existing solar systems. Thanks to its unparalleled flexibility and intelligent software management, it is designed to offer quick and easy installation, simplified logistics, and all-round cost savings, making life easier for homeowners and installers.

Main Features

Flexible and Convenient

Modular design for easy transportation and installation.
Capacity options from 10 kWh to 40 kWh.
All-in-one system with battery and inverter, or battery-ready option.

Backup Function

Automatic power backup during grid outages with an optional Smart Gateway.
Ensures continued operation of high-power appliances.

Perfect Compatibility

Compatible with existing and newly installed photovoltaic systems.
4 MPPT, each allowing a string of up to 17 A Impp.

Cost savings

The all-in-one design saves installation time and costs.
Automated generation and consumption.

Safe and reliable battery.

LFP technology.
Meets the highest certification standards.
IP67 protection.

Intelligent management

Monitors electricity generation, storage, and consumption in real time.
Automatic weather alerts help actively manage stored capacity.
OTA (Over-The-Air) firmware updates.

For more details, download the following documents:

Datasheet [Download]

Technical features:

DC input (PV side)
Inverter power	10kW
Maximum PV input power	24kWp
MPPT number	4
Number of entries per MPPT	1
Max. input power for MPPT	12kWp
Max. PV input voltage	1000Vdc
MPPT voltage range	85 Vdc - 850 Vdc
Max. MPPT Input Current	17A
Maximum Short Circuit Current	24A
MPPT Startup Voltage	80Vdc
Battery
Battery Type	LiFePO4
Voltage Range	43.2 Vdc ~ 58.4 Vdc
Max. Power Continuous (battery) / discharge	2.5kW
Nominal voltage	51.2V
Protection type	IP67 (stacked together)
AC Output (Mains Side)
Rated AC Output Voltage	Three-Phase / 3 L / N / PE / 400Vac
Rated Output Frequency	50Hz
Output Power Factor	~1 (adjustable from 0.8 lagging to 0.8 leading)
Total Harmonic Distortion @7.6kW	< 3% (rated power)
AC Output (Backup)
Rated AC Output Voltage	Three-Phase / 3 L / N / PE / 400 V AC
Rated Output Frequency	50Hz
Max. continuous (battery + PV)	12kVA
Maximum continuous current per phase (battery + PV)	17.4A
Switching time (from on-grid to off-grid)	< 20ms
General Data
Inverter Dimensions	600 x 700 x 285 mm
Weight	< 48 kg
Noise Level	< 30dB@2m
Protection type	IP 65
Cooling type	Natural cooling
Display	LED & APP
Installation Method	Floor Mounting (Optional: Wall Mounting)
Communication Interface	Wi-Fi, RS485, CAN, IO, Ethernet
Topology	Transformerless
Protections
Battery input reverse/polarity protection	Built-in
Overload protection (DC-AC side)	Built-in
AC short-circuit current protection/Output short-circuit protection	Built-in
Output overcurrent protection	Built-in
DC short-circuit current protection (PV + Battery)	Integrated
AC Surge Protection: Grid and Backup (SPD Type II)	Integrated
Anti-islanding protection	Integrated
PV string input reverse polarity protection	Integrated
Ground fault monitoring	Integrated
Temperature protection (inverter + battery)	Built-in
Integrated DC switch (PV - disconnect switch)	Integrated
Remote shutdown	Integrated
Warranty
Inverter	10 years
Battery	> 80% capacity, up to 10 years or 6,000 cycles
Accessories	2 years
