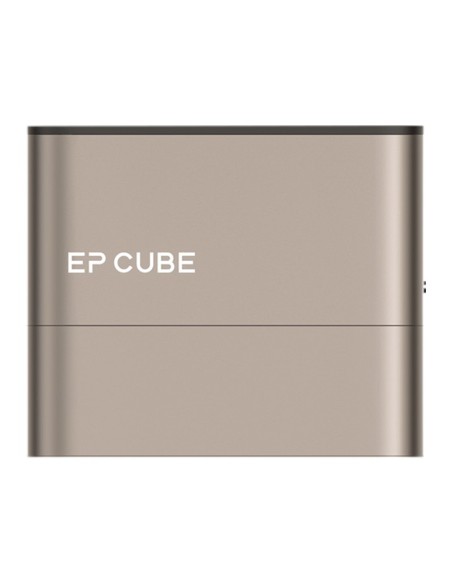

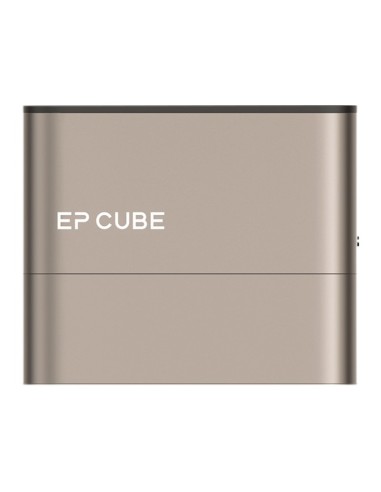

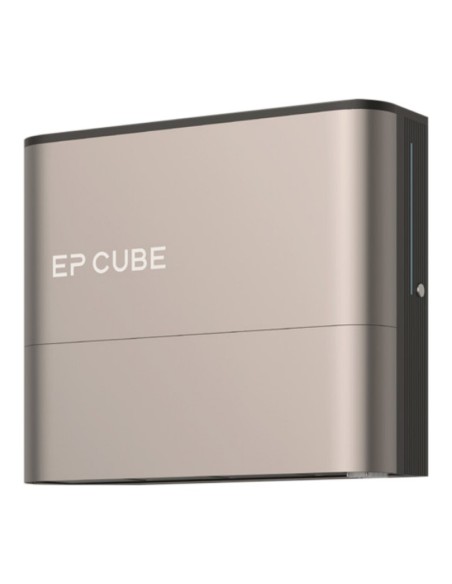

CanadianSolar EP CUBE 6kW single-phase Hybrid Inverter for All-in-One System

CanadianSolar EP CUBE 6kW single-phase Hybrid Inverter for All-in-One System

Name: CanadianSolar EP CUBE 6kW single-phase Hybrid Inverter for All-in-One System
Brand: EP Cube
SKU: EP Cube/PCS-EU-1P-7.6kW+1PHM1
Price: 1926.65 EUR
Availability: InStock

Reference EP Cube/PCS-EU-1P-7.6kW+1PHM1

€1,926.65

VAT included 10 %

€1,751.50 Vat excl.

EP Cube is an all-in-one, flexible, and intelligent residential energy storage solution for new and existing photovoltaic systems.

NOTE: INVERTER COMPATIBLE WITH EP CUBE 5kWh BATTERIES ONLY.

CanadianSolar EP CUBE 6kW single-phase Hybrid Inverter for All-in-One System

EP Cube is an all-in-one, flexible, and intelligent residential energy storage solution for new and existing photovoltaic systems.
With unparalleled flexibility and intelligent software management, it is designed to offer quick and easy installation, simplified logistics, and cost savings.

Key Features

Flexible and Convenient

Modular, stackable batteries that are easy to transport and install;
Customizable storage capacity from 5 kWh to 20 kWh.

Lifetime Warranty Power

Automatic power supply guaranteed during grid outages;
High output power, both in normal operation and backup mode.

Perfect compatibility

Compatible with existing (AC-Retrofit) and new PV systems;
Allows PV input with up to 16 ADCs per MPPT;
Compatible with EV Chargers up to 7.4 kW.

Cost reduction

The all-in-one design saves installation time and costs;
Automates generation and consumption.

Lithium iron phosphate batteries.

With the highest safety standards;
IP67 protection.
Safe and reliable battery.

Intelligent management.

Monitors electricity production, charge status, and consumption in real time.
Automatic OTA (over the internet) firmware updates.

For more details, download the following documents:

Datasheet [Download]

Technical features:

DC input (PV side)
Inverter power	6kW
Maximum PV input power	10kW
MPPT number	2
Number of entries per MPPT	1
Max. input power for MPPT	5kWp
Max. PV input voltage	450Vdc / 600Vdc
MPPT voltage range	90 Vdc - 400 Vdc
Max. MPPT Input Current	16A
Maximum Short Circuit Current	20A
Turn-On Voltage	120Vdc
Battery
Battery Type	LiFePO4
Voltage Range	43.2 Vdc ~ 58.4 Vdc
Max. Power Continuous (battery) / discharge	2.5kW
Rated voltage	51.2V
Protection type	IP67
AC Output (Mains Side)
Rated AC Output Voltage	Single-Phase / L+N+PE / 230 V AC
Rated Output Frequency	50 Hz
Output Power Factor	~1 (adjustable from 0.8 lagging to 0.8 leading)
Total Harmonic Distortion @7.6kW	< 3% (nominal power)
AC Output (Backup)
Rated AC Output Voltage	Single-Phase / L+N+PE / 230 VA
Rated Output Frequency	50Hz
Max. Continuous Power (Battery + PV)	7.6kVA
Max. output (battery + PV)	33A
Switching time (from on-grid to off-grid)	< 30ms 4
General Data
Inverter dimensions	600 x 505 x 243 mm
Weight	< 38 kg
Noise level	< 30 dB
Protection type	IP 65
Cooling type	Natural cooling
Display	LED & APP
Installation method	Floor-mounted (optional: wall-mounted)
Communication interface	WiFi, Ethernet, RS485, CAN, IO, Integrated Eskom API
Topology	Transformerless
Protections
Battery input reverse/polarity protection	Built-in
Overload protection (DC-AC side)	Built-in
AC short-circuit current protection/Output short-circuit protection	Built-in
Output overcurrent protection	Built-in
DC short-circuit current protection (PV + Battery)	Integrated
AC Overvoltage Protection: Grid and Backup (SPD Type II)	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Ground Fault Monitoring	Integrated
Thermal Protection (Inverter + battery)	Integrated
Integrated DC switch (PV - disconnect switch)	Integrated
Remote shutdown	Integrated
Warranty
Inverter	10 years
Battery	> 80% capacity, up to 10 years or 6,000 cycles
Accessories	2 years
