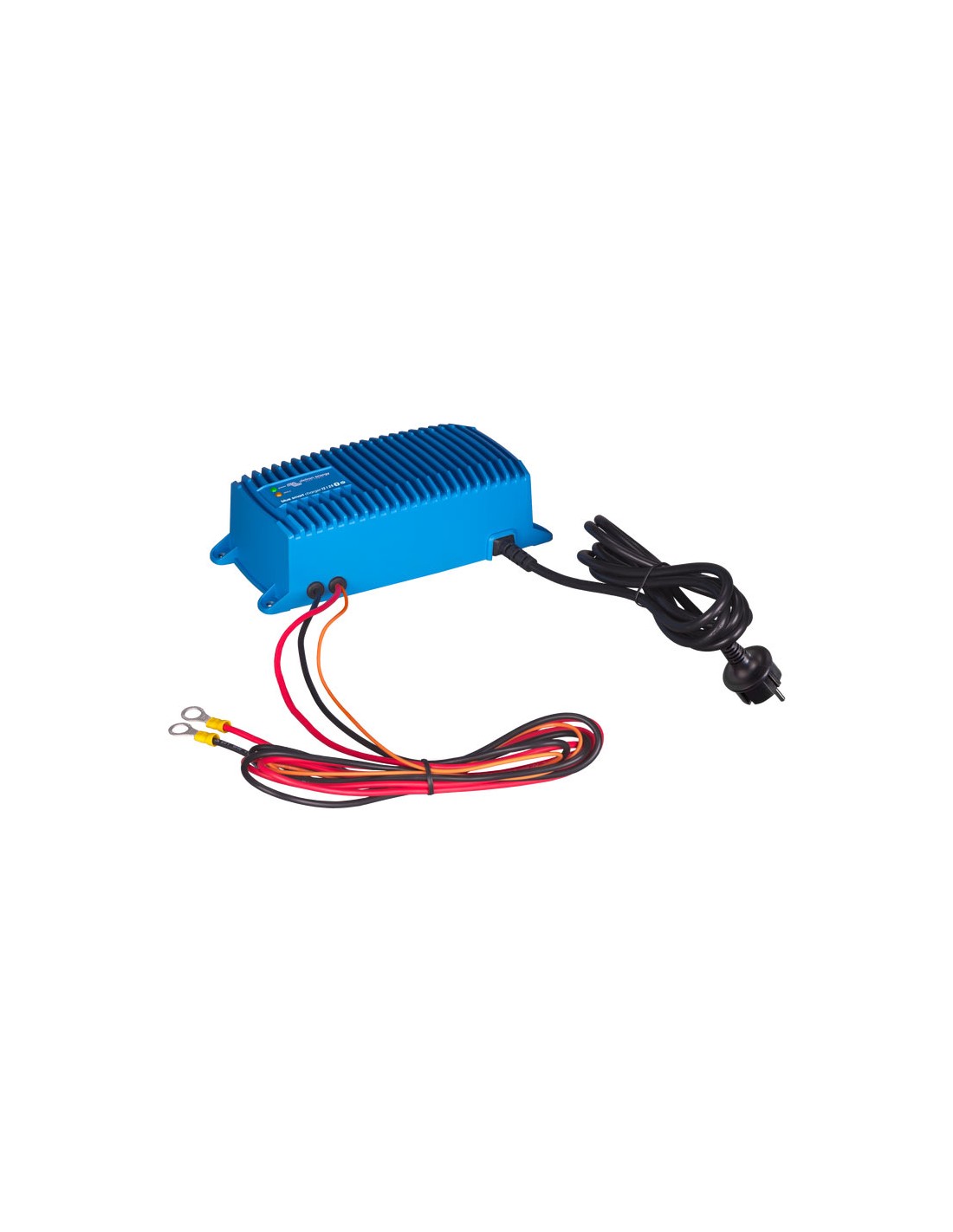

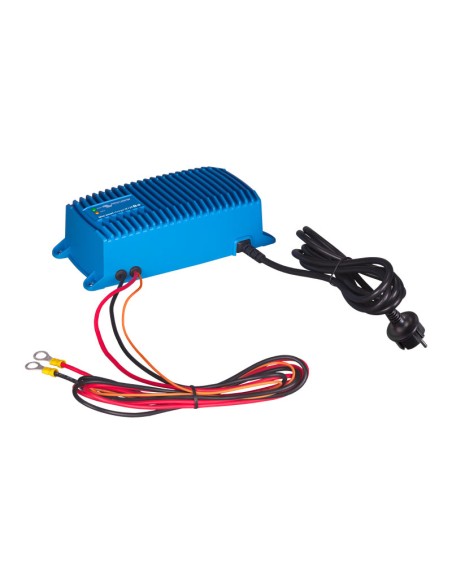

Charger 25A 12V Blue Smart IP67 Victron Energy Bluetooth 12/25 1 Schuko

Bluetooth Smart enabled

The Blue Smart IP67 charger is the wireless solution for monitoring voltage and current, changing settings and updating the charger as new features become available. With Bluetooth, the functions of the IP67 charger are improved and become similar to those of our IP22 and IP65 chargers.

Fully encapsulated: water resistant, shock resistant and fire retardant

Water, oil or dirt will not damage the Blue Smart IP67 Charger. The case is made of cast aluminum while all electronics are molded in resin.

The highest efficiency ever!

A new standard for the industry: with 92% efficiency and above, these chargers disperse three to four times less heat. And when the battery is fully charged, power consumption drops to less than one Watt, five to ten times lower than the industry standard.

5-phase adaptive charging algorithm: first charging phase – absorption – reconditioning – maintenance – accumulation

The Blue Smart charger includes a microprocessor-controlled "adaptive" charging management system. The "adaptive" function automatically optimizes the charging process based on the type of use made of the battery.

Conservation method: Less maintenance and less aging when the battery is not used

Conservation mode is activated when the battery is not subject to discharge for 24 consecutive hours. In storage mode the flow voltage is reduced to 2.2 V/cell (13.2 V for a 12 V battery) to minimize corrosion of the positive plates. The voltage is brought back to the "absorption" level once a week to balance the battery charge state. This feature prevents electrolyte stratification and sulfation, the main causes of premature battery aging.

Also charges Li-ion batteries

Lithium-ion batteries are charged with a simple constant current – absorption – float algorithm.

Completely discharged battery recovery function

It starts charging even if the battery has been discharged to zero volts. Reconnects to a fully discharged lithium-ion battery with internal disconnect function

Thermal protection

It can be used in an overheated environment such as the engine room. The output current drops if the temperature exceeds 60°C, but the charger continues to work.

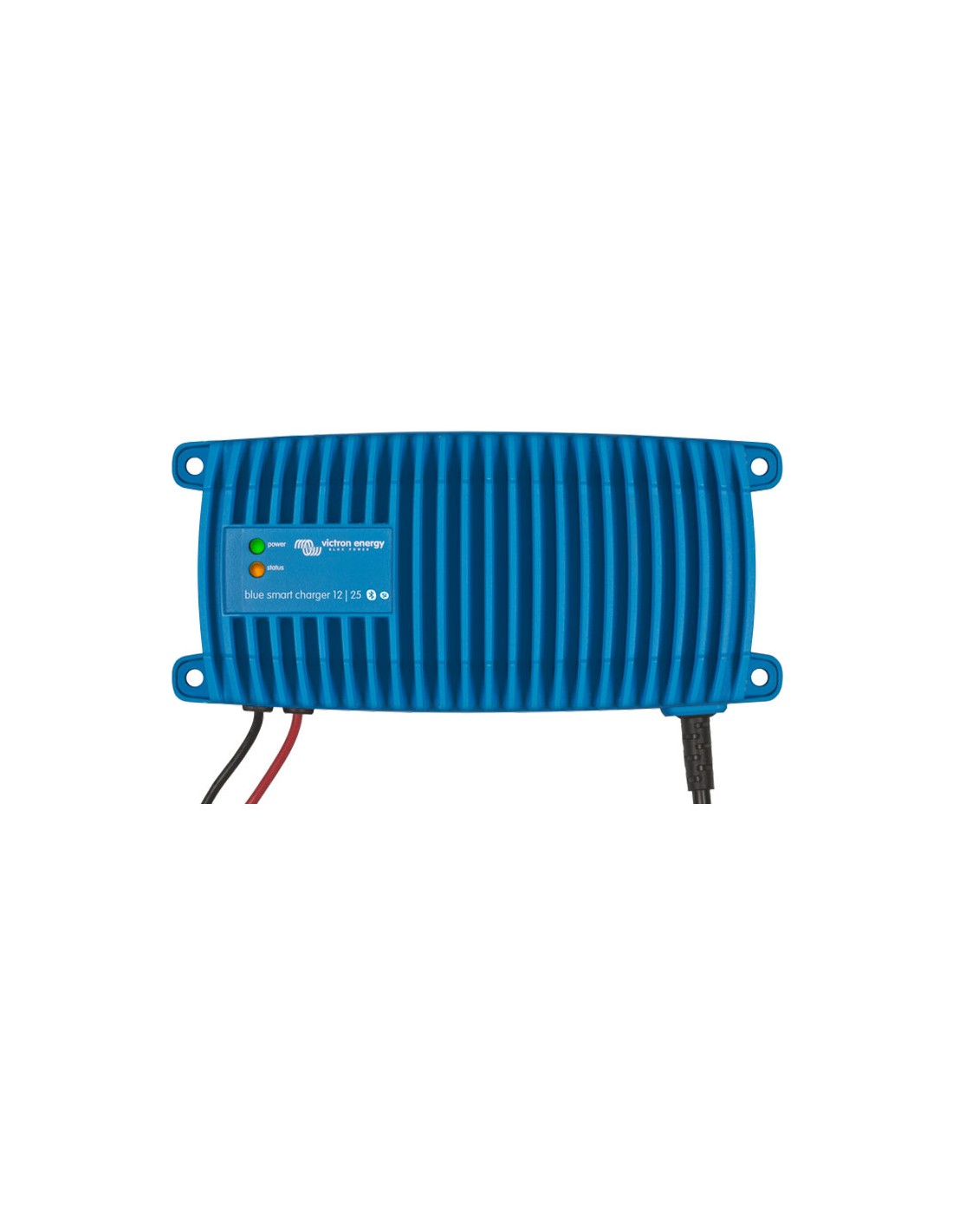

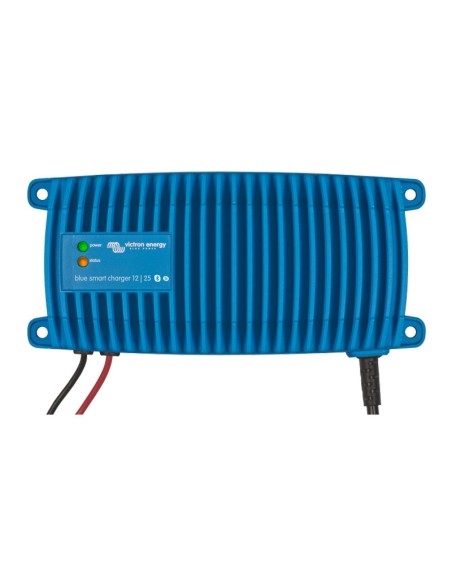

Two status indicator LEDs

Yellow LED: maximum charging (flashes quickly), absorption (flashes slowly), float (steady), conservation (off) Green LED: working.

For more details, download the following documents:

• Datasheet: [Download]
