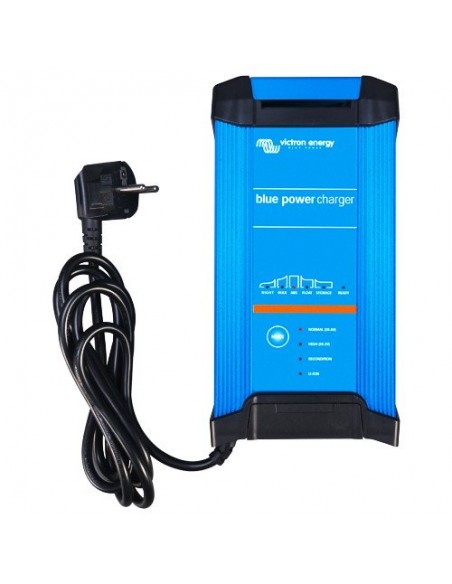

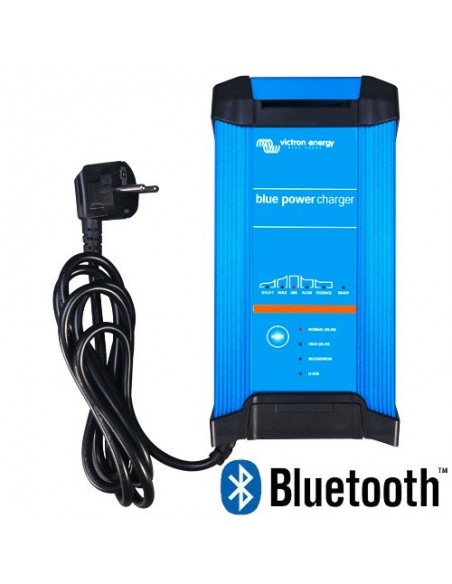

Charger 15A 12V Victron Energy Blue Power IP22 12/15 (1)
Charger 15A 12V Victron Energy Blue Power IP22 12/15 (1)
Charger 15A 12V Victron Energy Blue Power IP22 12/15 (1)
Charger 15A 12V Victron Energy Blue Power IP22 12/15 (1)

Charger 20A 12V Victron Energy Blue Smart IP22 Bluetooth 12/20 1 Schuko

BPC122042002
Last items in stock
€181.58
VAT included 22 %

€148.84 Vat excl.

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard. When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

Charger 20A 12V Blue Smart IP22

Model: 12/20 (1)

Blue Power IP22 Battery Charger: The highest efficiency ever!
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Technical Features

Product code: BPC122042002
Download Product Datasheet

Warranty

2 Years Guaranteed

Features

Bluetooth Smart enabled
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency

With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industrystandard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage
The Blue Power Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive
feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.

Also charges Li-ion (LiFePO₄) batteries LiFePO₄

Batteries are charged with a simple bulk – absorption – float algorithm.

NIGHT and LOW setting

When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating
Output current will reduce as temperature increases up to 50°C, but the Blue Power Charger will not fail.

Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
MODE button to set: NORMAL (14,4 V) / HIGH (14,7 V) / RECONDITION / LI-ION.

   Downloads

Data Sheet EN [LINK]

For all other documents to download, please visit the web site: www.victronenergy.com

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
BPC122042002
Input voltage AC (V)
180 – 265 VAC
Input frequency (Hz)
45 – 65 Hz
Charge absorption voltage DC (V)
Normal: 14,4V High: 14,6V Li-ion: 14,2V
Charging voltage Float DC (V)
Normal: 13,8V High: 13,8V Li-ion: 13,35V
Number of outputs
1
Charging current (A)
15A
Humidity (non-condensing)
98%
Connection to battery
Screw terminals 13 mm² / AWG6
Connection 230V AC
Cable of 1,5 meter with CEE 7/7 plug
Protection
IP22
Weight kg
1.3Kg
Dimension (axlxp)
235 x 108 x 65 mm
8380000026197
