Bilge Pump 2000 GPH 24V Photovoltaic Solar Nautical Boat Camper

Name: Bilge Pump 2000 GPH 24V Photovoltaic Solar Nautical Boat Camper
Brand: SHURflo ®
SKU: SHURFLO2000-24
Price: 65.76 EUR
Availability: InStock

Reference SHURFLO2000-24

Last items in stock

€65.76

VAT included 22 %

€53.90 Vat excl.

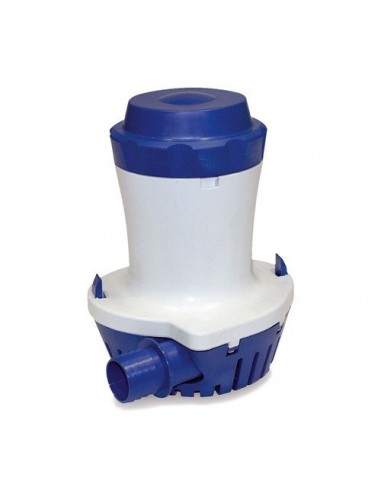

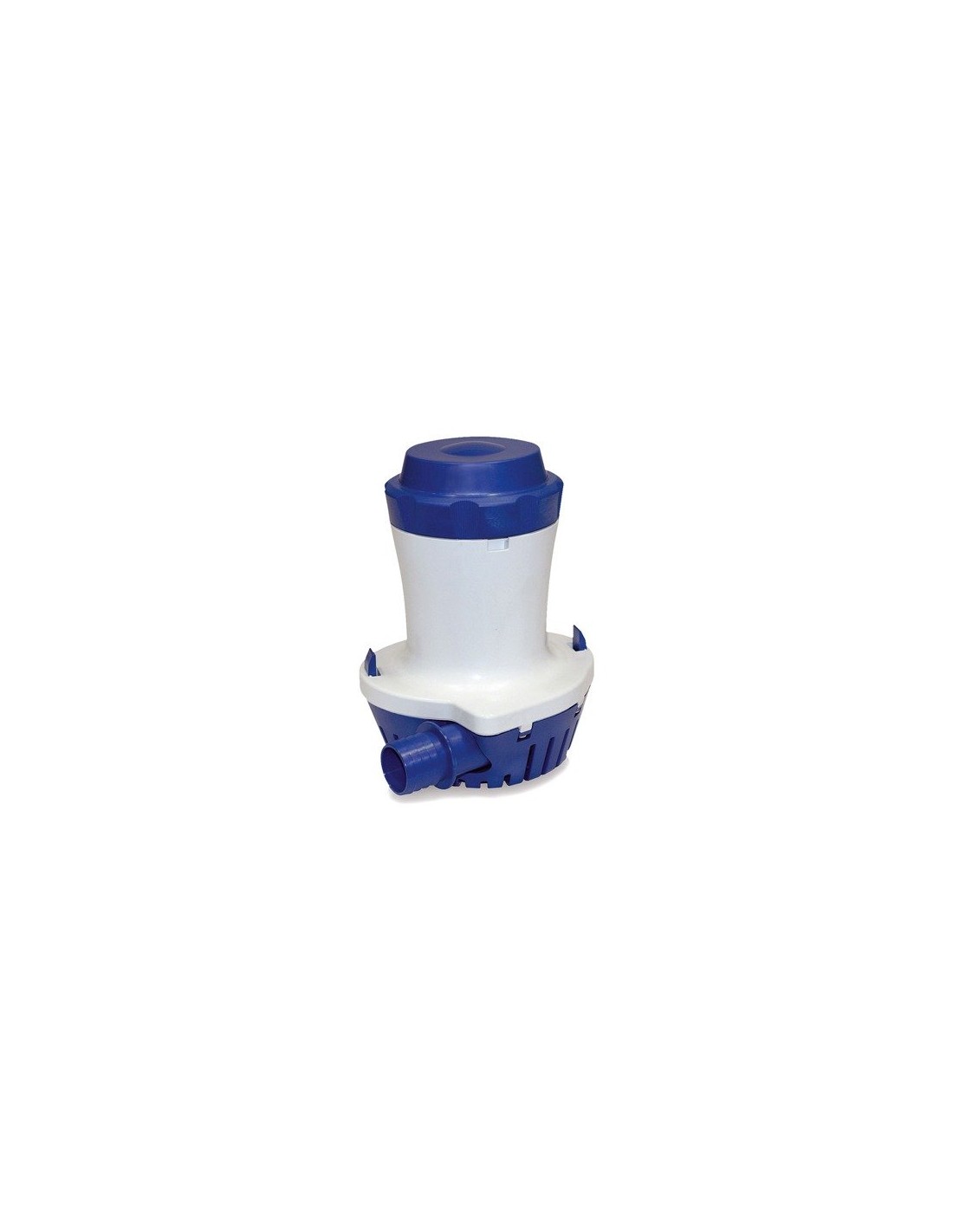

Bilge Pump 2000 GPH 24 V

Bilge Pump SHURFLO
2000GPH 24V

Typical Uses

Suitable for hydraulic systems fed with cold water - used in line to be fed by gravity or pressure

Removal and transfer of water

feel it
pumps
dishes showers
spare time
Industries
All the little use and decanting

Technical Data

mock up: SHURFLO
Volt: 24V
flow: 126 l/m
Amp Max: 10
Outlet orifice: ⌀ 28.5 mm

dimensions

152 cm
	183 cm

Electrical Characteristics

Runs continuously
Submarine pond with Cabling 6" (1.8m) standard
Body pumps high strength nylon
Snap-mounting of the pump on the swivel base
Protected against overheating and comply with the requirements flameproof. ISO8849

Images

Downloads

Datasheet EN [link]

Help

For assistance with configuration and installations call
0039 0882 22 82 47
or write
[email protected]

Product Code: SHURFLO2000-24
Motor: Permanent Magnet, P/N 11-175-00 Thermally protected
Voltage: 24 VDC Nominal
Watts: 120 W
AMPS: 4.0 MAX
Fuse: 7.5 AMP (Automotive)
Maximum Lift: 230 ft (70 M)
Maximum Submersion: 100 ft (30 M)
Outlet Port: 2" (12.7 mm I.D.) Barbed Fitting for 1/2" I.D. (12.7 mm I.D.)Tubing. - Port: 3/4” Barb
Protection: Need External Fuse (Not Supplied)
Leads: 3 Ft. [0.9M] Tinned 16 AWG
Dimensions: Millimeters, Design and specifications are subject to change
Net Weight: 2.72 kg
Range (GPH): 2000 GPH
Voltage (V): 24V
Flow PSI: 0 PSI
