Argo Diode Battery Isolators 80A dual output
Argo Diode Battery Isolators 80A dual output

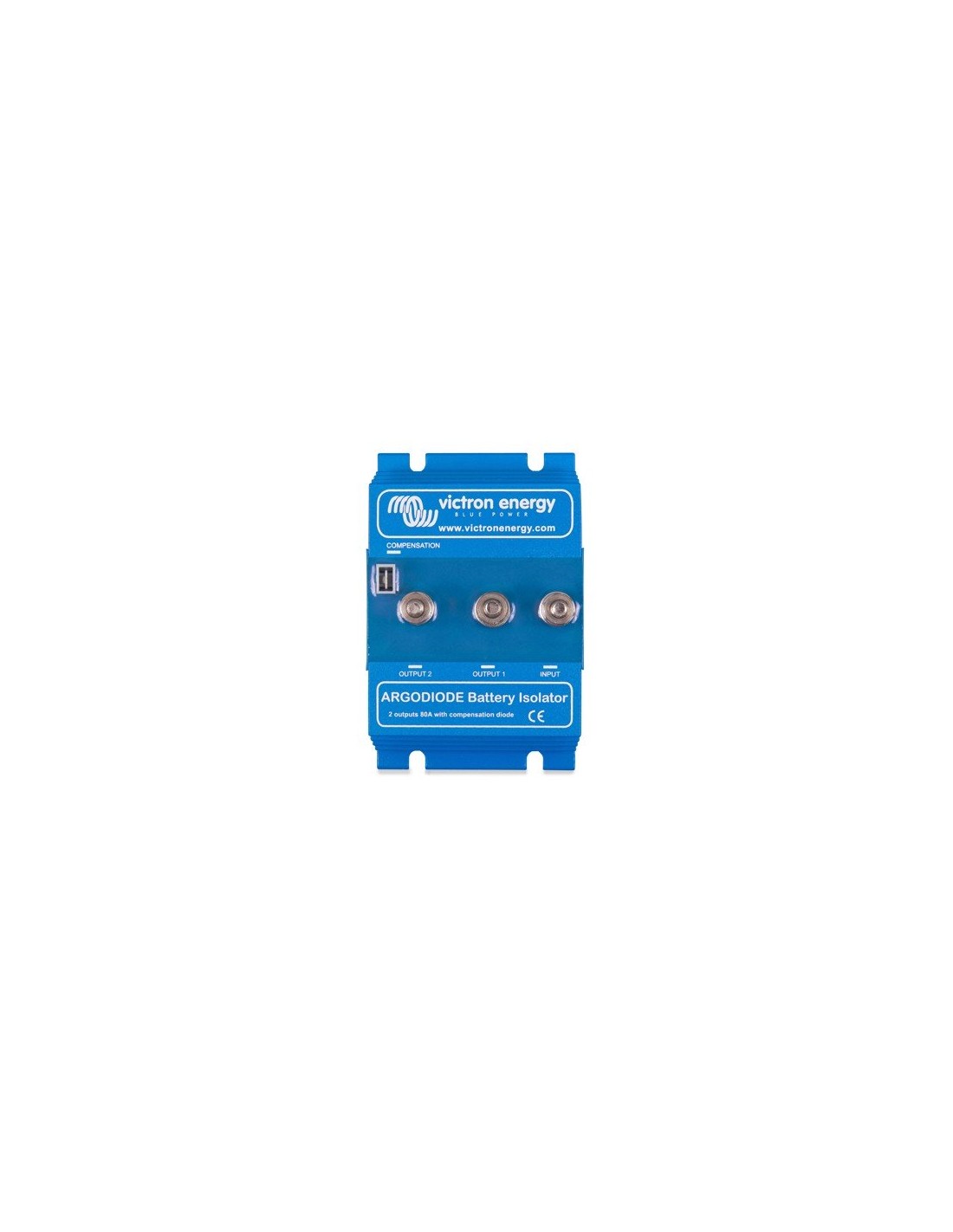

Argo Diode Battery Isolators 80A-2SC double output Victron Energy

ARG080202000R
€47.08
VAT included 22 %

€38.59 Vat excl.

Diode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.

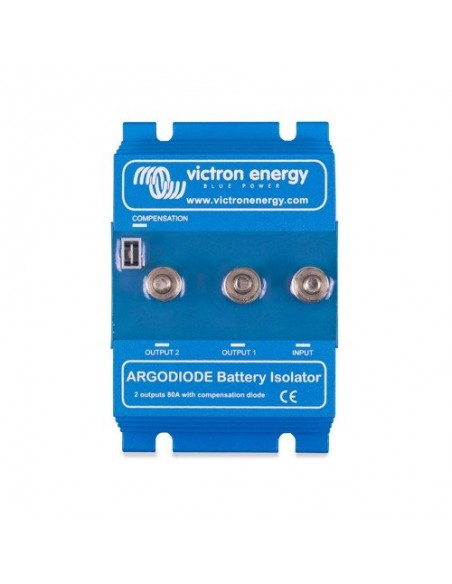

Argo Diode Battery Isolators 80A dual output

Diode battery isolators allow simultaneous charging of two or more batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.

The Argo battery isolators feature a low voltage drop thanks to the use of Schottky diodes: at low current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V. All models are fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.

Technical Specification

Model: ARG080202000R
Maximum charge current: 80A
Maximum alternator current: 80A
Number of batteries: 2
Alternator Energize Input: No
Connection: M6 Studs
Compensation diode and Energize connection: 6,3 mm Faston

Warranty

2 years warranty

Connection Diagram

   Downloads

  Datasheet EN [LINK]

For all other documents to download, please visit the web site: www.victronenergy.com
