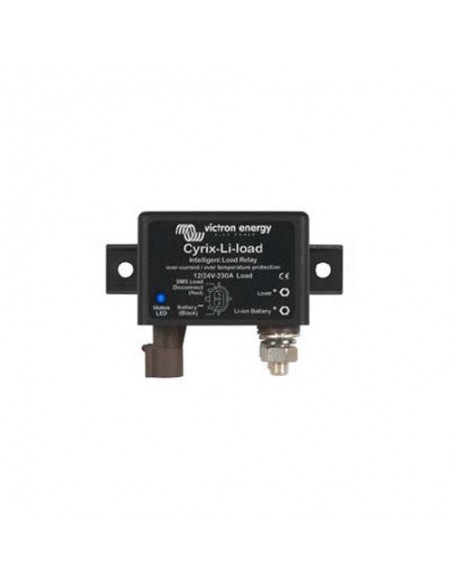

Victron Cyrix Li-Load 12/24V 230A
Victron Cyrix Li-Load 12/24V 230A

Battery Combiner Cyrix Li-Load 12/24V 230A Victron Energy

CYR010230450
Last items in stock
€193.92
VAT included 22 %

€158.95 Vat excl.

Der cyrix Batteriekoppler ist ein hochleistungsfähiges mikroprozessorgesteuertes Relais, das Batterien automatisch parallel schaltet, wenn eine von ihnen einen vorgegebene Spannungswert erreicht hat (wodurch angezeigt wird, dass die Batterie geladen wird) und, das die Batterien wieder voneinander trennt, wenn die Spannung unter den Erhaltungsspannungswert abfällt.



CYR010230450 - Cyrix Li-Load 12/24V 120A

Model: CYR010230450

The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.

Features

Model: CYR010230450
Voltage and current plug: 12V-24V 230A
Current consumption when open: <4mA
Connecting bolts and connecting cables: 13mm (M6)
Protection: IP54
Weight: 270g
Dimensions (h x w x d) mm: 65 x 100 x 50

Warranty

2 Year Warranty

Certifications

Electrical Specification

- Voltage of 12V-24V system up to a maximum of load 230A
- Automatically disconnects the battery when you reach the minimum voltage or the law of the excessive fluottuazioni in download and automatically hangs up as soon as he hears the following voltages 13V for 12V and 26V for systems at 24V, a sign that the battery is being charged
- Alarm notification and automatic recovery through management unit VE.Bus BMS
- The Li-Charge of Cyrix Cyrix system and Li-Load must be matched to the mandatory VE.Bus BM control unit without the unit may not work


Connection Diagram





Downloads

  Data Sheet EN [LINK]
  IEC Certification [LINK]
  Certification of Conformity EN [LINK]

Assistance

For service or plant configuration call 0882 22 82 47
For technical assistance, write to [email protected]
