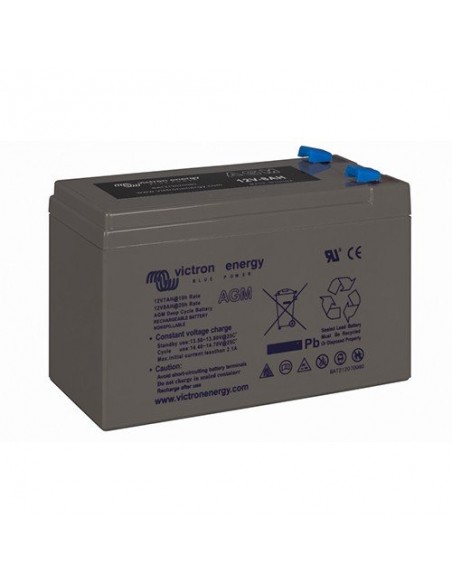

AGM Deep Cycle Battery 8Ah 12V Victron Energy Photovoltaic Nautical Camper
AGM Deep Cycle Battery 8Ah 12V Victron Energy Photovoltaic Nautical Camper

AGM Deep Cycle Battery 14Ah 12V Victron Energy Photovoltaic Nautical Camper

BAT212120086
€42.45
VAT included 10 %

€38.59 Vat excl.

The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches as well as engine starting.

VRLA technology
VRLA stands for Valve Regulated Lead Acid, which means the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0039 (0)882 228247 or write to [email protected]

Battery 14Ah 12V AGM Deep Cycle Victron Energy

The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as for inverters, thrusters and winches as well as engine starting.

The GEL model range offers best deep cycle durability and overall longer life. The use of high purity materials and lead calcium grids ensure that for both AGM and GEL products have particularly low self-discharge so that they will not go flat during long periods without charge. Both ranges are supplied with M8 drilled, flat copper terminals ensuring best possible connection contact and eliminating the need for battery terminals. The batteries are compliant with both CE and UL specifications in ABS fireproof containers.



Features

Low Self-Discharge
Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C.
Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.

Discharg time (constant current) End Voltage V AGM 'Deep Cycle' % GEL 'Deep Cycle' % GEL 'Long Life' %
20 hours 10.8 100 100 112
10 hours 10.8 92 87 100
5 hours 10.8 85 80 94
3 hours 10.8 78 73 79
1 hours 9.6 65 61 63
30 min. 9.6 55 51 45
15 min. 9.6 42 38 29
10 min. 9.6 38 34 21
5 min. 9.6 27 24
5 seconds 8 C 7 C


Effect of temperature on capacity
As is shown by the graph below, capacity reduces sharply at low temperatures.

Exceptional Deep Discharge Recovery
Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge.
Nevertheless repeatedly deep and prolonged discharge, have a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.




Effect of temperature on service life
High temperature has a very negative effect on service life. The service life of Victron batteries as a function of temperature is shown in table

Average Temperature AGM 'Deep Cycle' Years GEL 'Deep Cycle' Years GEL 'Long Life' Years
20°C / 68°F 7-10 12 20
30°C / 86°F 4 6 10
40°C / 104°F 2 3 5






Cycle life of Victron batteries
Batteries age due to discharging and recharging. The number of cycles depends on the depth of discharge, as is shown in graphic.


     Downloads

Datasheet EN [link]

     Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Product Code
BAT212120086
Capacity (Ah)
14Ah
Typology
AGM Deep Cycle
Voltage (V)
12V
Weight
4,1 Kg
Dimensions
161x98x101
Nominal voltage
14 Ah
8380000001798
