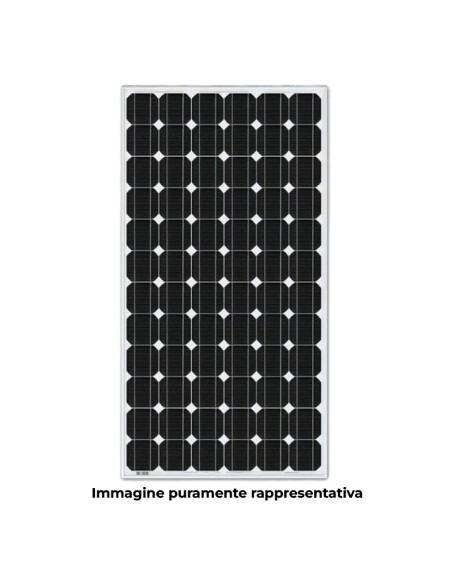

Victron Energy 20W 12V 4C Series Monocrystalline Photovoltaic Module for Home and Cabin

The Photovoltaic Solar Panel 12V 20W Monocrystalline produces electricity from the sun and can be used for various applications, particularly in sites without an electricity grid (off-grid).

MODEL: SPM040203603
DIMENSIONS: 275 x 450 x 25mm
WEIGHT: 1.3kg

Main features:

• The low voltage-temperature ratio enhances operation at high temperatures.
• Exceptional low-light performance and high light sensitivity across the entire solar spectrum.
• 25-year limited warranty on performance and power output.
• 5-year limited warranty on materials and workmanship.
• The sealed, waterproof, multifunctional junction box ensures maximum safety.
• High-performance bypass diodes minimize voltage drops caused by shade.
• The advanced EVA (Ethylene-vinyl acetate) encapsulation system with a triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A durable anodized aluminum frame makes module roof mounting easy thanks to a full range of mounting systems.
• Standard.
• The premium-quality, high-transmission tempered glass ensures greater rigidity and impact resistance.
• High-power models with pre-wired, quick-connect system with MC4 connectors (PV-ST01).

Applications:

• Powering of moving vehicles such as campers, caravans, vans, cars, minibuses, boats, etc ..;
• Solar installations for huts, country houses;
• Power supply for burglar alarms, video surveillance, electric gates;
• Supply of radio bridges and weather stations;
• Powering Lamps for Street and Votive Lighting, Advertising Signs;
• Supply of Irrigation and Water Pumping Systems;
• Battery maintenance for Cars, Motorcycles, Campers, Boats and more.

Certifications:

• CE
• ISO9001

For more details, download the following documents:

• Datasheet: [Download]
