1.323,70 € Vat excl.

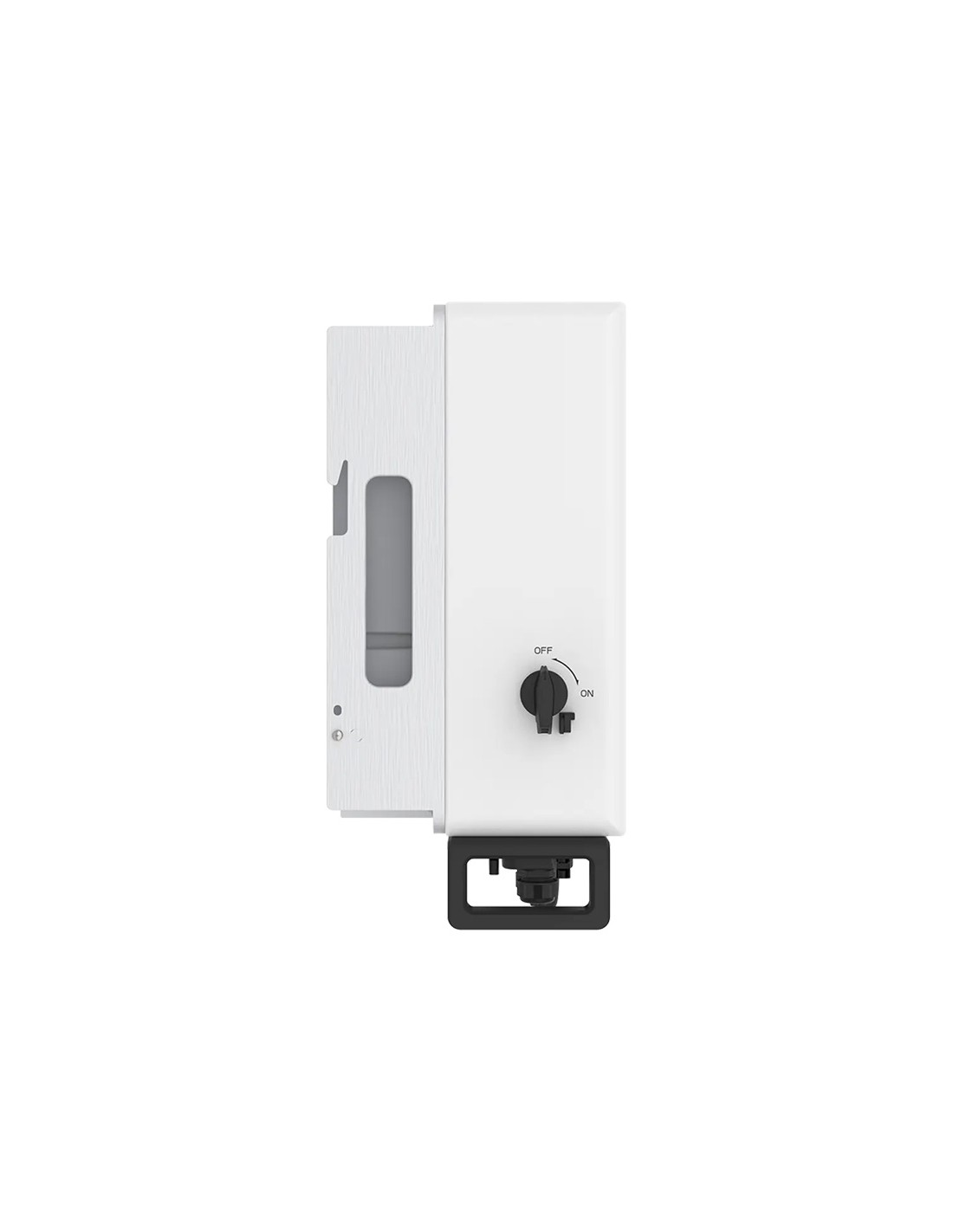

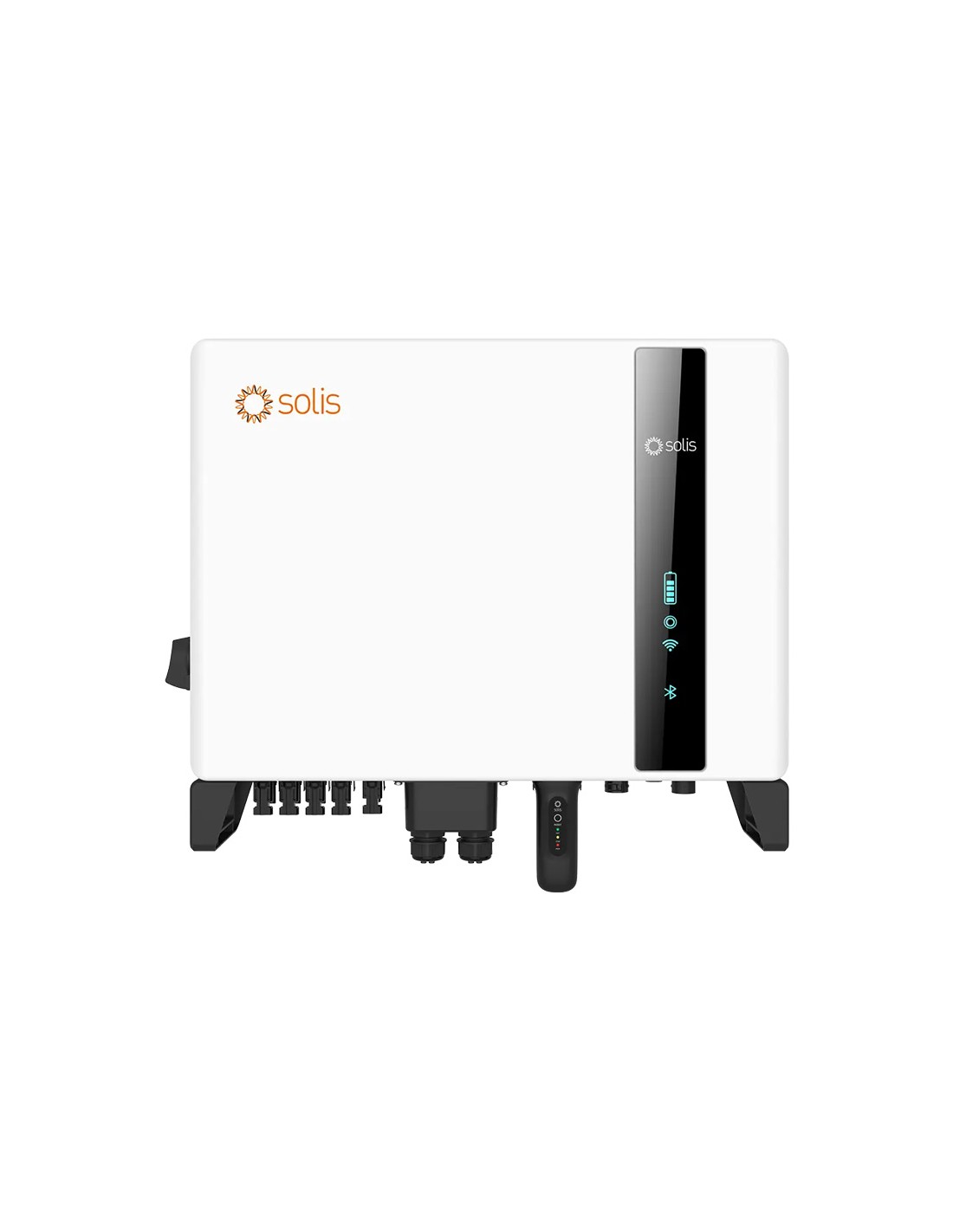

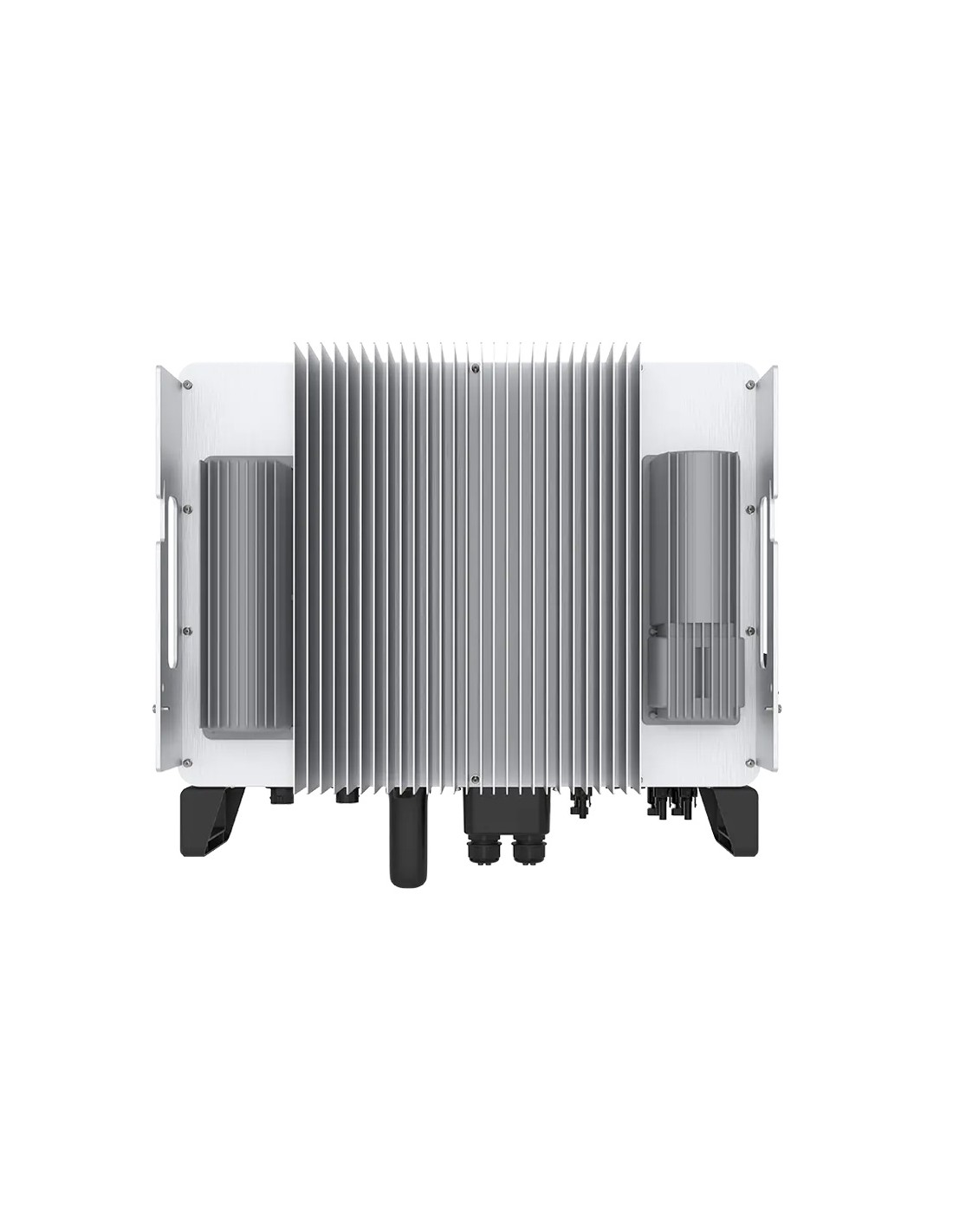

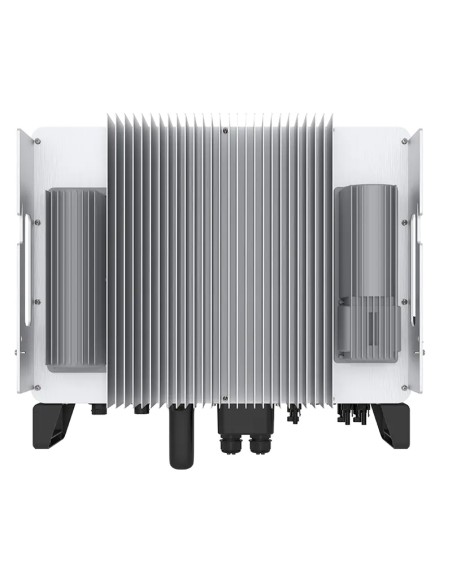

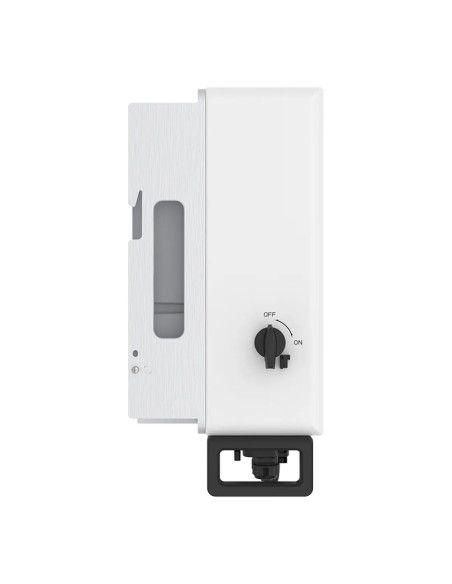

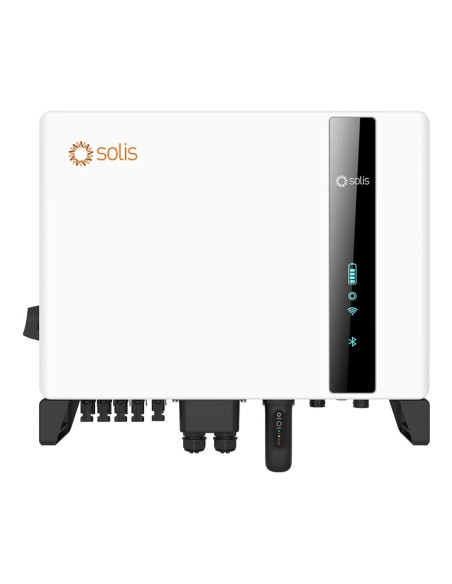

El inversor Solis S6 es adecuado para conectar paneles solares y una batería de alto voltaje.
El inversor Solis S6 es adecuado para conectar paneles solares y una batería de alto voltaje. Este inversor capta energía solar durante el día y suministra energía a las cargas domésticas y carga la batería.
Por la noche utilizará la batería de alto voltaje para cubrir las cargas del hogar. De esta forma se evita utilizar energía de la red eléctrica.
| DC Input (PV Side) | |
| Recommended maximum size of the photovoltaic field | 16kW |
| Recommended maximum PV input power | 12.8kW |
| Maximum absolute voltage | 1000 V |
| Nominal voltage | 600 V |
| Startup voltage | 160 V |
| MPPT voltage range | 200 - 850 V |
| Maximum input current | 4 × 16 A |
| Maximum short-circuit current | 4 × 24 A |
| Number of MPPTs / Maximum number of strings | 4 / 4 |
| Battery | |
| Battery type | Lithium ion |
| Accepted voltage range | 120 - 600 V |
| Maximum charge / discharge power | 10kW |
| Maximum charge / discharge current | 50 A |
| Communication | CAN / RS485 |
| AC Output (Grid Side) | |
| Nominal output power | 8kW |
| Maximum apparent output power | 8 kVA |
| Nominal grid voltage | 3/N/PE, 380 V / 400 V |
| Nominal grid frequency | 50 Hz / 60 Hz |
| Nominal grid output current | 12.2 A / 11.5 A |
| Maximum output current | 12.2 A / 11.5 A |
| Power Factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
| AC Input (Grid Side) | |
| Max AC transmission current | 18.2 A |
| Nominal input voltage | 3/N/PE, 380 V / 400 V |
| Nominal input frequency | 50 Hz / 60 Hz |
| AC Output (Backup) | |
| Nominal output power | 8kW |
| Maximum apparent output power | 12.8 kVA, 60 s |
| Backup switch-over time | < 10 ms |
| Nominal output current | 12.2 A / 11.5 A |
| THDv (@linear load) | < 2% |
| Efficiency | |
| Maximum efficiency | 97.50% |
| EU efficiency | 97.41% |
| Maximum efficiency BAT charged by PV | 98.22% |
| Maximum efficiency BAT charged / discharged in AC | 97.50% |
| Protection | |
| Anti-islanding system | Yes |
| Output overcurrent protection | Yes |
| Short-circuit protection | Yes |
| Integrated DC switch | Yes |
| DC reverse polarity protection | Yes |
| PV overvoltage protection | Yes |
| Battery reverse polarity protection | Yes |
| General Data | |
| Dimensions (W × H × D) | 600 × 500 × 230 mm |
| Weight | 30.2 kg |
| Topology | Transformerless |
| Self-consumption (night) | < 25 W |
| Operating temperature range | -25 ~ +60°C |
| Relative humidity | 0 - 95% |
| Protection class | IP66 |
| Cooling method | Natural cooling |
| Maximum operating altitude | 4000 m |
| Grid connection standards | |
| Grid connection standards | G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
| Safety / EMC Standards | |
| Safety / EMC standards | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 |
| Features | |

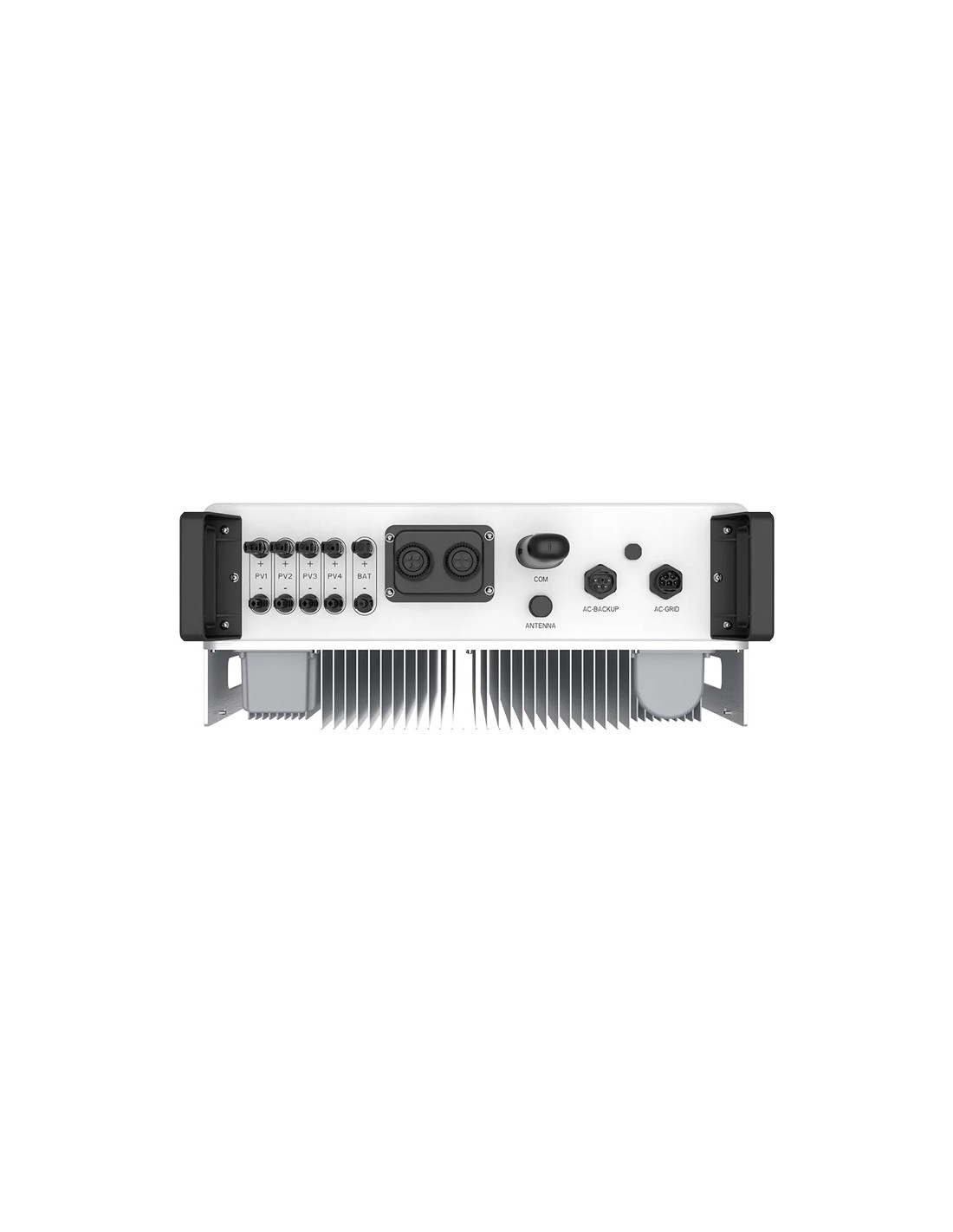

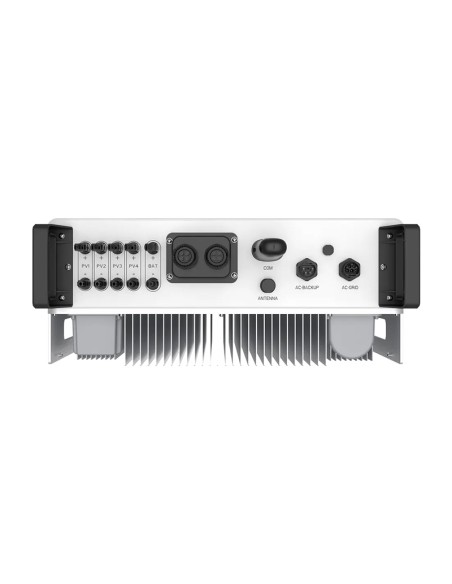

| PV connection | MC4 connector |
| Battery connection | Quick-connect plug |
| AC connection | Quick-connect plug |
| Display | LED indicator and Bluetooth + APP |
| Communication | CAN, RS485, Optional: Wi-Fi, Cellular, LAN |
